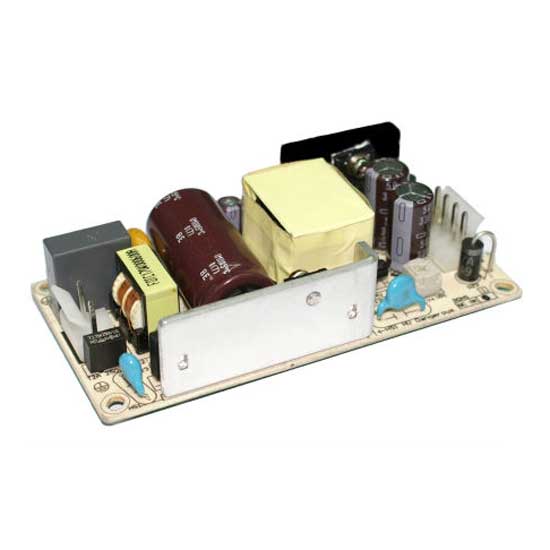

This ultra-slim power supply comes with a 25mm low profile. The advanced structure guarantees high efficiency. This reliable power supply is widely adopted in electronic products.

• Convection-cooled @ 50°C.
• Can start up at ambient -10°C.
• Compact size.
• High efficiency of up to 90% green power (standby power less than 0.3W).
• Input voltage: universal AC input 85-264V AC.
• Input frequency: 47-63Hz.
• Output voltage: single output +12V DC, +24V DC.
• Output power: 60W convection.
• Line/load regulation: 1% max.
• Ripple and noise: 1% max.
• Hold-up time: min. 10ms @ 115V AC.
• Protection: short circuit protection, over voltage protection.
• Operating temperature: 0-70°C.
• Low temperature start-up: -10°C.
• Altitude: operating @ 3K meters.
• Safety: design to meet IEC 60950-1, EN 60950-1, UL 60950-1 2nd EMC: EN 61204-3, EN 55022, EN 61000-3-2, -3, FCC part 15, EN 61000-4-2, -3, -4, -5, -6, -8, -11, and EMI CISPR/FCC class B.
