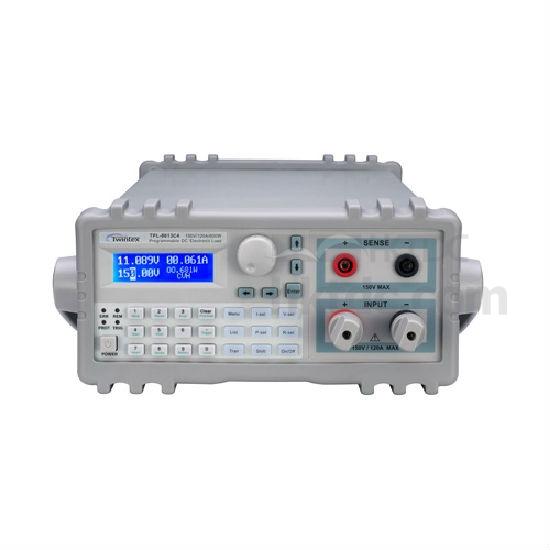

Programmable DC Electronic Load 150W 300W 600W

產品型號:

TPL-8610C, TPL-8611C2, TPL-8612C2, TPL-8612C3, TPL-8612B1, TPL-8613C2, TPL-8613C3, TPL-8613C4

品牌名稱:

TWINTEX

顏色:

White

港口:

SHENZHEN

付款方式:

L/C, T/T

最低訂購數量:

1piece

是否有包裝:

有

是否可訂造:

是

描述

聯絡供應商

4 basic functions: CC, CV, CR, CP
9 basic operation modes: CCL, CCH, CVL, CVH, CRL, CRM, CRH, CPV, CPC
24-bit A/D converter and 16-bit D/A converter, 40kHz D/A conversion speed, high resolution & high speed
Hardware circuit for CR function, faster transient response and higher CR accuracy
Over load, over voltage, over current, over temperature and reverse voltage protections
High speed transient test function, max. test frequency 2kHz
List Mode function, Min. step 10ms, Max. step 99999s, free to set numbers of cycles, to be linked to other
lists
Auxiliary function: short circuit test, battery discharge capacity test
Intelligent cooling system, ensure high stability during long-time operation under full load
Auto ON/OFF function
Rotary dial and digital keypad input
Save & recall function for frequently used setups
Standard RS-232 interface, optional USB interface
Support SCPI commands, support Labview
