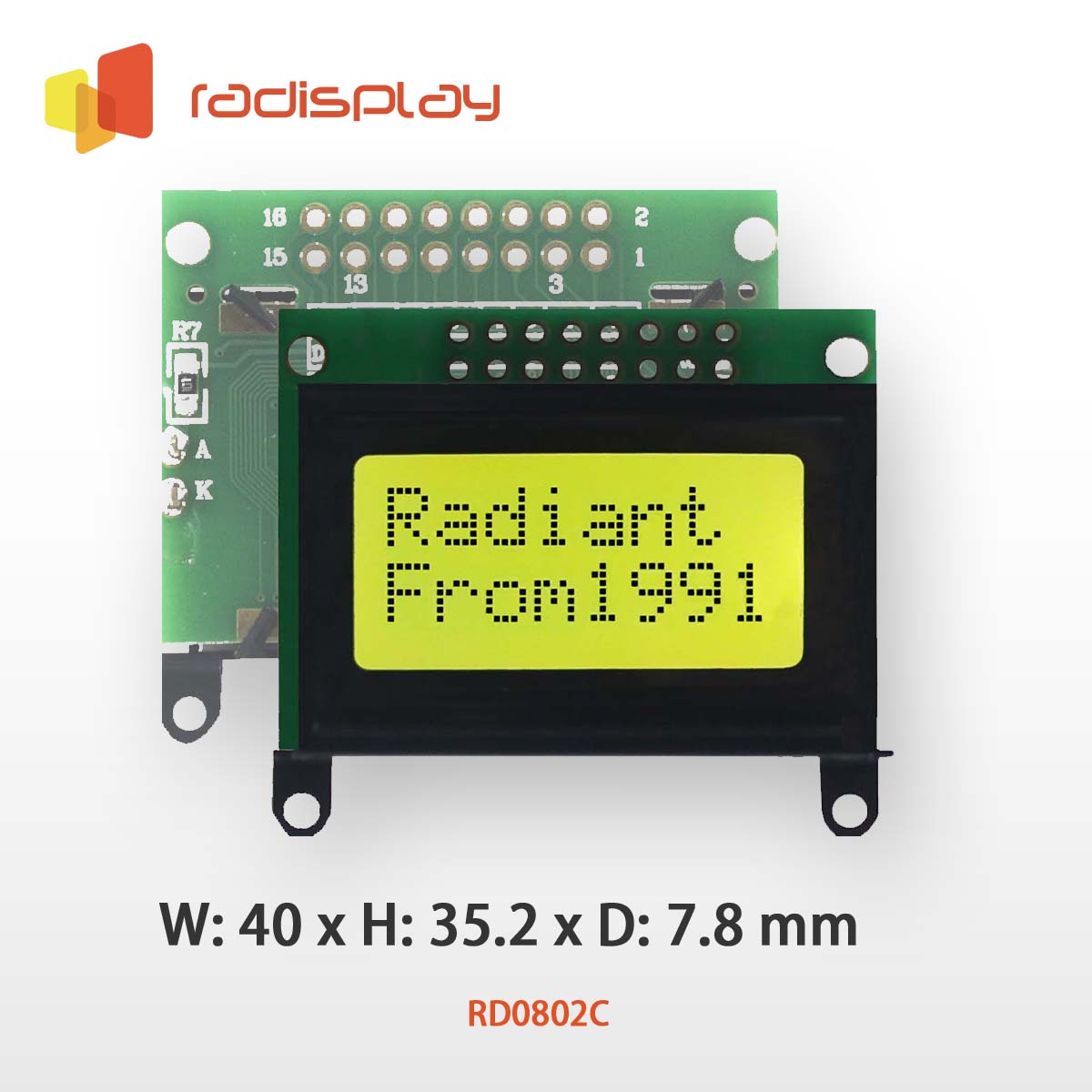

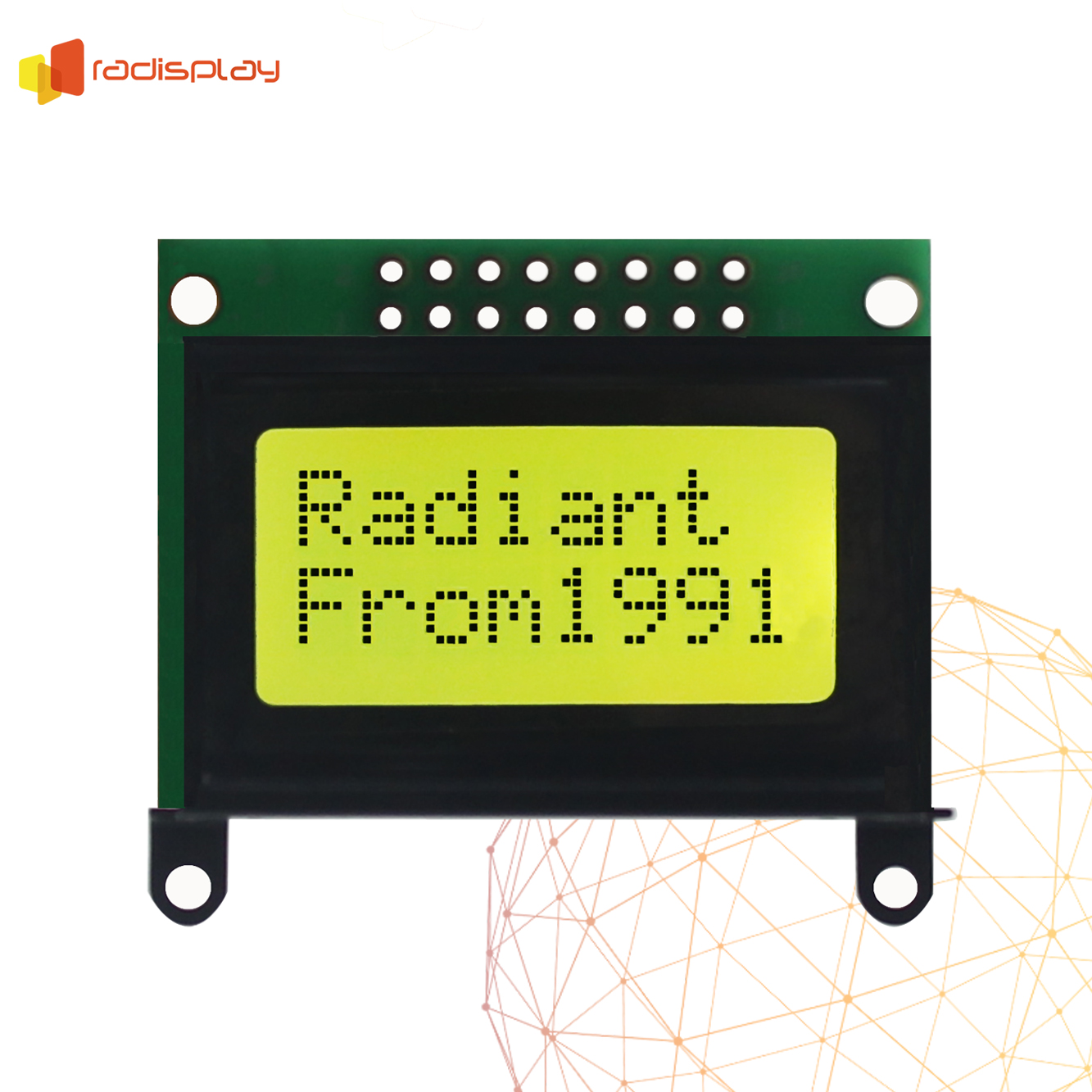

RD0802C-1 Alphanumeric small 8x2 Character LCD
美元 $1.00 - 美元 $10.00
生產所需時間:
30 日
運送方式:
FOB Shenzhen HongKong
品牌:
Radisplay
Customised:
Yes
Module size:
40 x 35.2 x 7.8 mm
Viewing area :
30.5 x 14.1 mm
Operating temperature:
-20 - 70 ℃
描述
聯絡供應商
描述
RD0802C-1 offers the smallest size among 8x2 character LCD displays.
The following color options are most widely ordered:
RD0802C-1-B White on Blue
RD0802C-1-Y Black on Yellow-Green
RD0802C-1-G Black on Gray
In addition, a wide range of customized options are available for this model, including:
Different Backlight & Color options (Including black color)
Different Voltage (3.3V, 5.0V and other customized voltage)
Different Interface (Including Serial SPI, I2C interface)
Different Temperature (Including Extended high temperature)

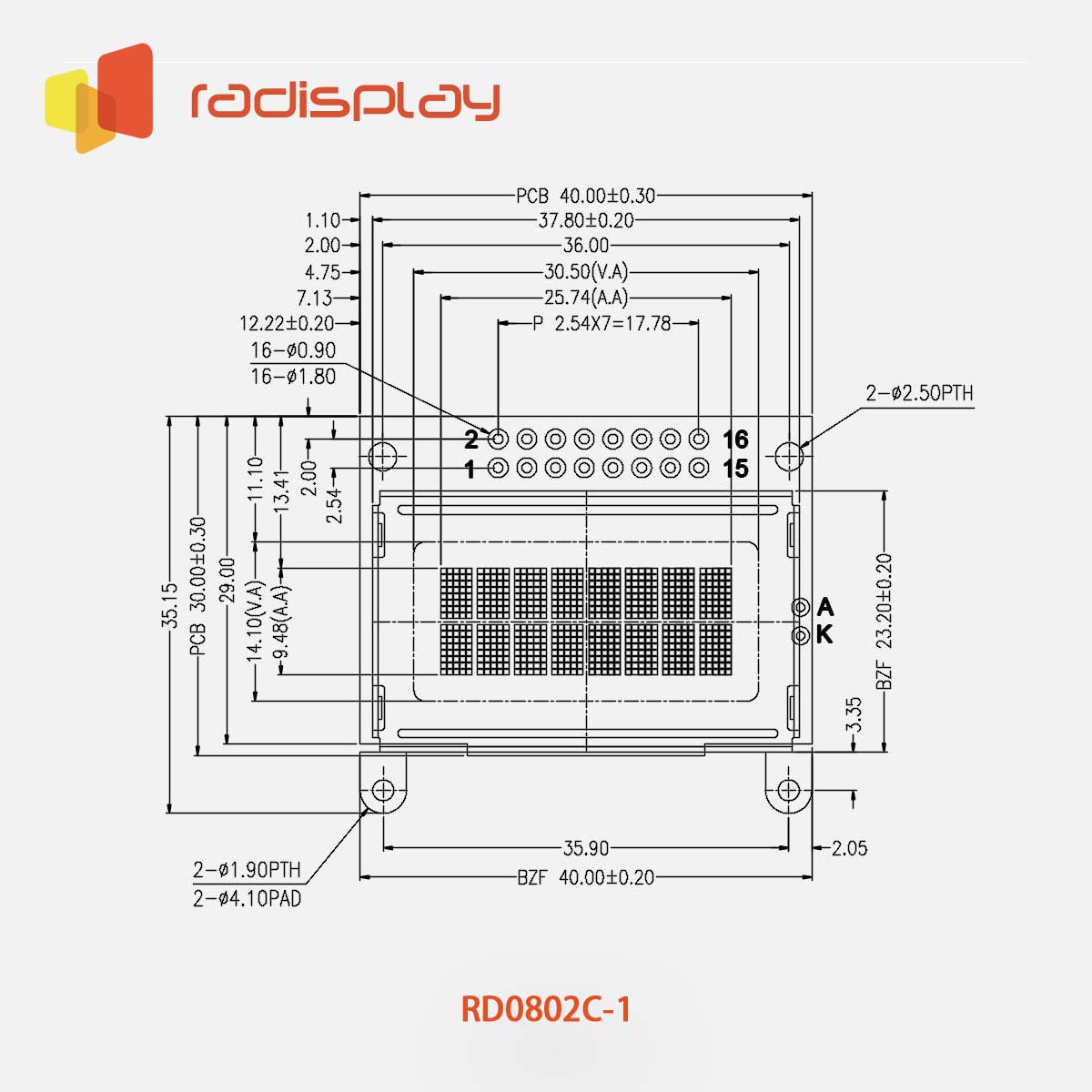

TECHNICAL SPECS (Table) | Module size （W x H x D） | 40 x 35.2 x 7.8 mm |
Viewing area （W x H) | 30.5 x 14.1 mm | |
Character size (W x H) | 2.78 x 4.49 mm | |
Dot size (W x H) | 0.5 x 0.5 mm | |
Dot pitch (W x H) | 0.57 x 0.57 mm | |
Interface | 8-bit Parallel interface | |
Driver condition | 1/16 Duty , 1/5 Bias | |
Driver IC | AIP31066 | |
Operating temperature | -20 - 70 ℃ |
