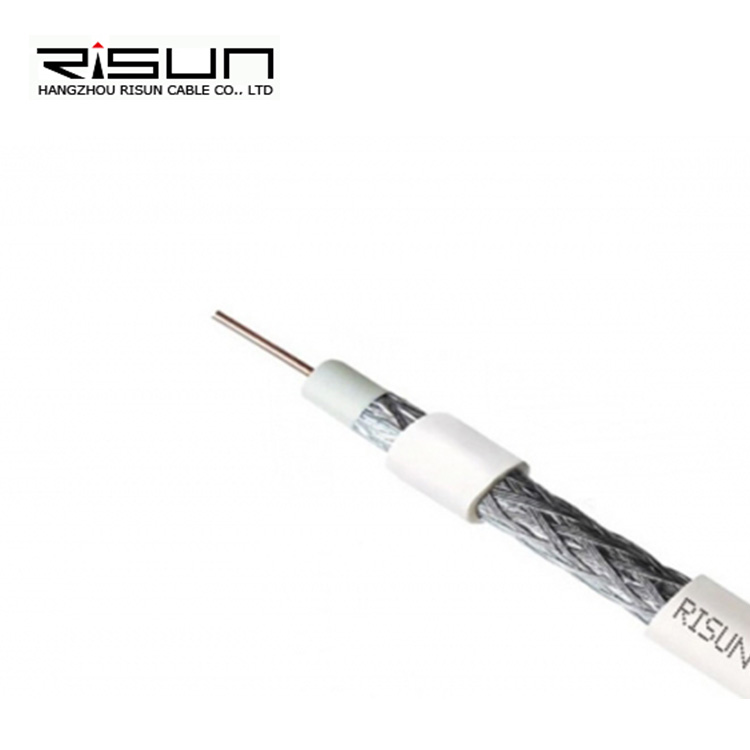

RG59 coaxial cable
美元 $28.00 - 美元 $35.00
生產所需時間:
20 日
運送方式:
by sea
描述
聯絡供應商
描述
RG59 coaxial cable
RG59 Coaxial Cable | ||||||||||
| DESCRIPTION | ||||||||||
| Drop coaxial cable for CATV. | ||||||||||
| CABLE CONSTRUCTION | ||||||||||
| Conductor | Copper Clad Steel | 0.81+/-0,001 mm | ||||||||
| Insulation | Gas injected foamed polyethylene | 3.66 +/-0,05 mm | ||||||||
| 1st shield | Aluminium/polyester | |||||||||
| 2nd shield | Aluminum alloy braid 16 x 4 x 0,16m | 67% | ||||||||
| Sheath | PVC | 6.10+/-0,10 mm | ||||||||
| Color | White | |||||||||
| Bending radius | ≥ 8 x Diameter (mm) Installation | |||||||||
Storage temperature | -15℃ + 70℃ | |||||||||
| ELECTRICAL SPECIFICATIONS | ||
| Nominal Impedance | 75+/-3 | Ohm |
| Capacitance approx | 54+/-3 | pF/m |
| Velocity ratio | 83 | % |
| Attenuation at 20°C MHz | dB/100 m | |||
| 5 | 2.82 | |||
| 55 | 6.73 | |||
| 187 | 11.81 | |||
| 250 | 13.45 | |||
| 350 | 15.75 | |||
| 500 | 18.7 | |||
| 750 | 22.87 | |||
| 865 | 24.67 | |||
| 1000 | 26.64 | |||
PACKING
100 m / coil
100 m / box
305 m / wooden drum
305 m / plastic reel
500 m / wooden drum
All sizes and values without tolerances are reference values. We reserves the right to amend this specification without prior notice.
