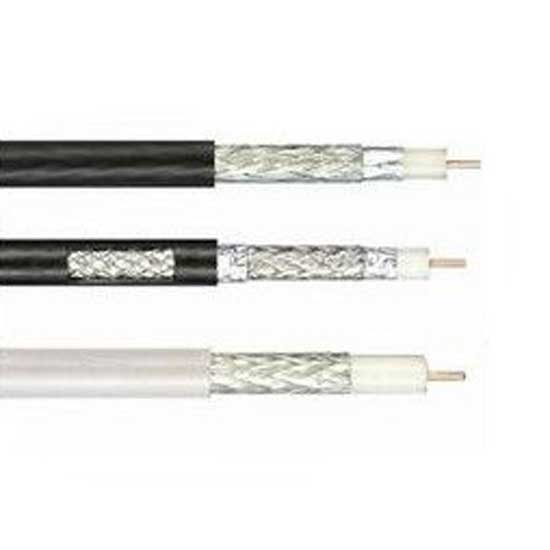

The RG6 coaxial cable is designed for distributing signals from the cable TV, satellite dish or from a roof-top antenna. The RG6 cable construction provides better shielding than some other coaxial cables. The insulated jacket ensures extra safe protection to the inner conductor.

• Conductor material: CU, CCS, CCA OD0.8mm, 0.9mm, 1.0mm, 1.02mm, 1.13mm.
• Dielectric: 4.8 foaming PE.
• Foil: Al foil, copper foil, bonded foil.
• Braiding dia.: 0.12, 0.15, 0.16mm.
• Wire net No: 32, 48, 120 and up.
• Coverage: 28%, 40%, 60%, 80%, 90% and up.
• Jacket: OD6.8mm.
