    Radio Interphone
    分享此頁面
    生產所需時間:
    3 日
    產品型號:
    A8Plus
    品牌名稱:
    TeLT
    顏色:
    Black
    尺寸:
    100 x 51 x 29mm
    港口:
    Xiamen, Shenzhen, Guangzhou
    付款方式:
    L/C, T/T, Western Union, Paypal
    最低訂購數量:
    1 piece(s)
    描述
    聯絡供應商
    描述

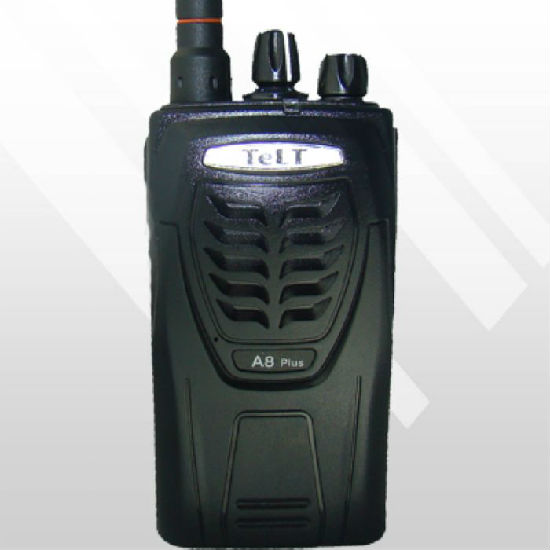

    Shown here is a interphone.

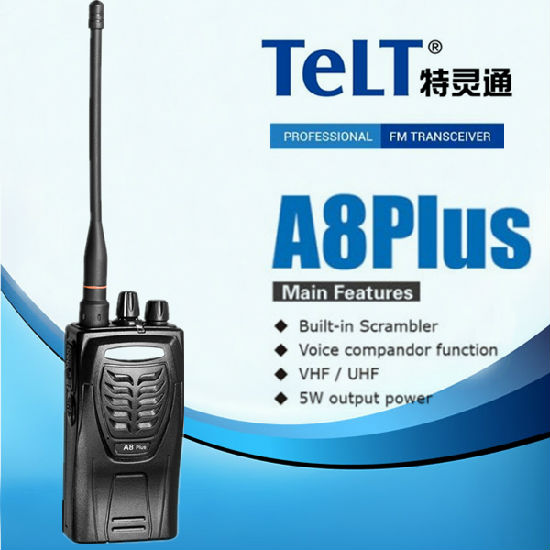

    Feature:
    • 5W output power.
    • Built-in scrambler.
    • Voice compandor function.
    • Alarm function.
    • High/low switchable.
    • Built-in VOX function.
    • Frequency stability ± 2.5ppm.
    • Wide (25kHz) and narrow (12.5kHz) available.
    • Power save function.
    • Low battery alert.
    • High/low power switchable.
    • Time-out timer.
    • Voice prompt.
    General:
    • Frequency range: VHF 137-174MHz; UHF 350-390MHz 400-470MHz.
    • Channel No.: 16 channels.
    • Channel step: 5kHz/6.25kHz.
    • Frequency stability: 2.5ppm.
    • Operating temperature: -10℃ to + 60℃.
    • Working voltage: 7.4V DC.
    • Dimension (H x L x W): 100 x 51 x 29mm.
    • Weight: 210g.
    • Distances: 3-18km.
    Transmitter:
    • Output power: 5W/7W regulable.
    • Max.freq.deviation: <±5kHz.
    • Antenna impedance: 50Ω.
    • Transmitting current: ≤1300 mA.
    • Modulation distortion: <5% (300kHz–3kHz).
    • Modulated mode: FM (F3E).
    • Residualwave radiation: ≤-65dB.
    Receiver:
    • Sensitivity: 0.20μV (12dB SINAD).
    • Operating bandwidth: wide.25kHz; narrow.12.5kHz.
    • First IF of receiver: 38.850MHz/26.450MHz.
    • Second IF of receiver: 450kHz.
    • Squelch sensitivity: 0.16μV.
    • Audio power output: ≤1W.
    • Standby: 20mA.
