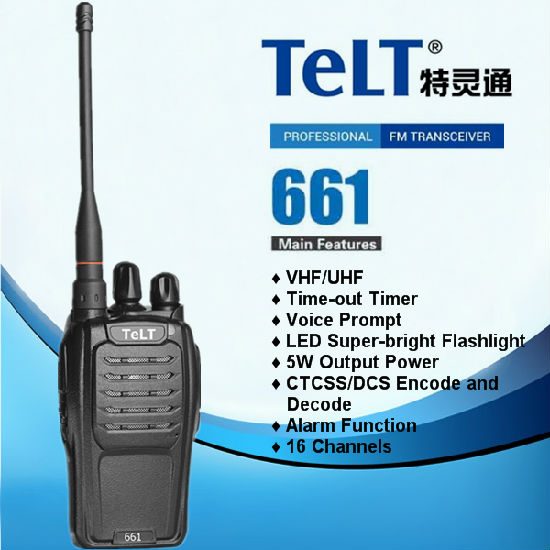

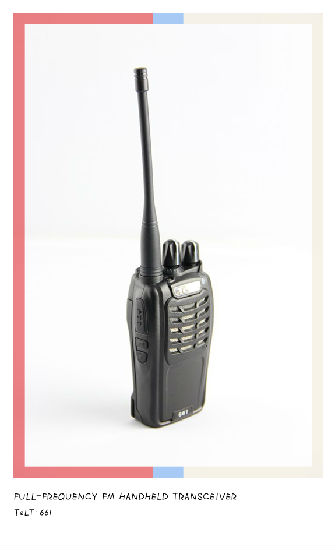

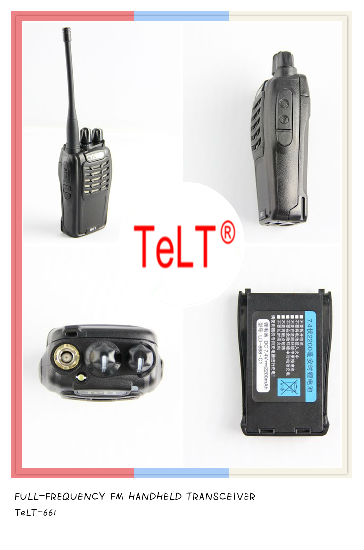

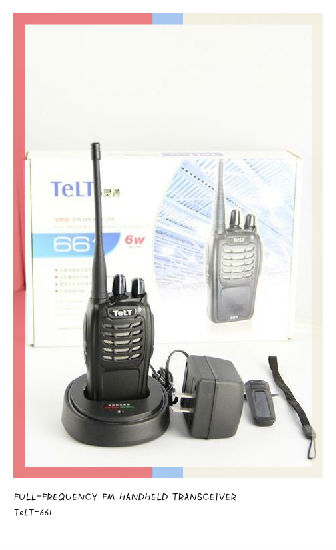

Highlighted here is a transceiver.
Feature:
Feature:
- UHF 400-470MHz
- 5W output power
- CTCSS/DCS encode and decode
- Alarm function
- 16 channels
- Built-in FM radio
- VOX (10 level)
- Frequency stability: ±2.5ppm
- Wide (25kHz) and narrow (12.5kHz) available
- Power save function
- Low battery alert
- High/low power switchable
- Time-out timer
- Voice prompt
- Frequency range: VHF 137-174MHz 244-246MHz; UHF 350-390MHz 400-470MHz
- Channel No.: 16 channels
- Channel step: 5kHz/6.25kHz
- Frequency stability: 2.5ppm
- Operating temperature: -10℃ to + 60℃
- Working voltage: 7.4V DC
- Dimension (H x L x W): 100 x 53 x 28mm
- Weight: 210g
- Distances: 3-18km
- Output power: 5W/7W regulable
- Max.freq.deviation: ＜±5KHz
- Antenna impedance: 50Ω
- Transmitting current: ≤1300 mA
- Modulation distortion: ＜5% (300kHz–3kHz)
- Modulated mode: FM (F3E)
- Residualwave radiation: ≤-65dB
- Sensitivity: 0.20μV (12dB SINAD)
- Operating bandwidth: wide.25kHz; narrow.12.5kHz
- First IF of receiver: 38.850MHz/26.450MHz
- Second IF of receiver: 450kHz
- Squelch sensitivity: 0.16μV
- Audio power output: ≤1W
- Standby: 20mA
