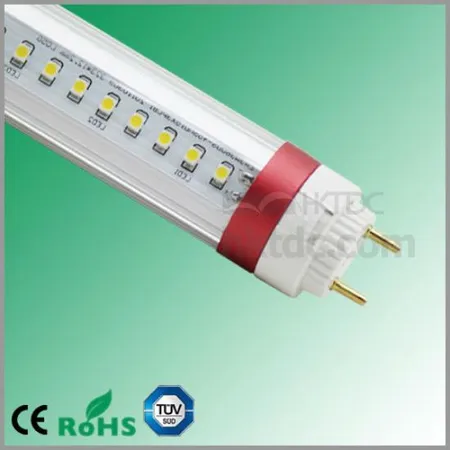

Rechargeable T8 LED Tube
產品型號:
L05G-I33V
品牌名稱:
ERVAN
顏色:
Warm White, Daylight White, Pure White, Cool White
尺寸:
D26 x 588/1198/1498mm; Size: 430 x 40 x 30mm.
港口:
Shenzhen
付款方式:
Western Union, L/C, T/T
最低訂購數量:
10 pc(s)/model
描述
聯絡供應商
描述
- Material: Aluminum and strengthened PC cover.
- Emergency LED tubes to provide 3-5 hours lighting with their own battery for earthquake or other natural disasters.
- Outstanding T8 LED tube with maximum brightness, easy installation, extended life with high shock and vibration resistance.
- Environmental-friendly tube with up to 70% energy saving consumption.
- Light tube to work with both external power supply and rechargeable battery.
- Lockable rotating end caps (patent).
- Warranty: 3 years for tube.
- 2 years for power supply.
- 1 year for battery.
- Plastic end caps ensure to pass 4000V Hi-pot test.
- Certificate: CE, RoHS.
- Input voltage: AC100V-240V.
- Frequency: 60Hz to 50Hz.
- Output power: 9W max. output power: 22W.
- Emergency output voltage: 33V DC.
- Battery capacity: 11.1V 2000mAh.
- Weight: 620g.
- PF: 0.85.
- Power efficiency: >0.92.
- Lifespan: >50,000h.
- Emergency time: 3-5h.
- Light source: SMD3528/3020 LED.
- Ballast bypassed/removed.
- Instant on.
- Electrical specifications:
- Model, power, dimension, LED qty:
- L05G-I33V, 9W, 26 x 588 (2ft), 110 piece(s).
- L05G-I33V, 18W, 26 x 1198 (4ft), 210 piece(s).
- L05G-I33V, 22W, 26 x 1498 (5ft), 240 piece(s).
- Luminous (frosted lens), clear lens:
- 1000±10%, 1050lm±10%.
- 1800lm±10%, 2100lm±10%.
- 2200lm±10%, 2400lm±10%.
- Operation temperature: -20°C to 40°C.
- Working humidity: 96%.
- Voltage: 110V-220V.
- Frequency: 60Hz-50Hz.
- Power factor: >0.92.
- Power supply efficiency: 0.86.
- Mechanical specifications:
- Beam angle: 120°.
- Light-emitting surface: 230°.
- Frosted or clear cover available on request.
- Weight: 588mm/156.8g, 1198mm/318g, 1498mm/393g, power supply/635g.
- Can be placed in conventional T8 or T10 fluorescent brackets and replace fluorescent tubes.
- Packing:
- Model, qty/box, box size: 1.2m, 25pcs, 133 x 24 x 24.
- Qty/carton, carton size (cm), volume weight: 50pcs, 135 x 48 x 26, 34kg.
- Applications:
- Replacement for conventional fluorescent tubes.
- Hotels/factories/warehouses/offices/buildings.
- Schools/colleges/hospitals.
- Supermarkets/subways.
- Railway stations/airports, etc.
- Installation:
- Note: make sure the power is turned off before installation.
- When the LED tube is replaced in a standard fluorescent tube batten, the starter must be removed, and replaced by the enclosed fuse.
- Attention: only suitable for magnetic ballast, not electronic ballast.
- Electronic ballast must be by-passed by a registered electrician.
- Warranty: 3 years since the date of purchase.
