Retrofit Trunk Frosted Cover
美元 $20.00 - 美元 $50.00
生產所需時間:
30 日
運送方式:
BY SEA
Model No:
DWTF540R
Input Voltage:
AC200-240V, 50/60HZ
Power:
40W
LED Source:
SMD2835
Color Temp:
3000K/4000K/5700K
CRI:
Ra>80
Power Factor:
>0.9
IP Rate:
IP40
Optional:
0-10V dimming, Dali dimming
MOQ:
300PCS
Certificate:
CE,RoHS,CB,SAA
Warranty Time:
5 Years
Payment Terms:
T/T
Supply Ability:
7000pcs per month
描述
聯絡供應商
描述

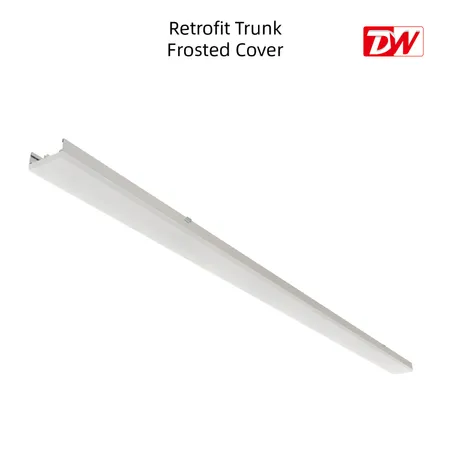

Retrofit Trunk Frosted Cover
Thanks for choosing DW retrofit trunk frosted cover linear series. DW retrofit trunk linear is an idea retrofit for the existing T-8 or T5 without any changes of the wiring inside and any tools by the clips integrated inside. DW retrofit trunk linear lend sversion also is compatible with famous brands like Trilux, Thorn,Ridi,Philips,Veko and other brands. If you need to replace the old modules on the trunk, DW retrofit trunk linear lens version is a good choice for you.
◈ ADVANTAGE
Retrofit Trunk Frosted Cover | |||||
Material | Aluminum profile+PMMA | ||||
Colour scheme | White coated aluminium housing/silver color | ||||
Installation type | Rotatory knob or holding clamp | ||||
Model | DWTF535RX/ DWTF535RXB | DWTF560RX/ DWTF560RXB | DWTF570RX/ DWTF570RXB | ||
Dimensions( Length x Breadth x Height) | 1436 x70 x37mm | 1436 x70 x37mm | 1436 x70 x37mm | ||
Weight | Approx.2.8 kg | Approx.2.8 kg | Approx.2.8 kg | ||
Protection type | IP40 | ||||
Illuminant properties | |||||
Illuminant Type | LED-Moduls with Mid-Power-LEDs | ||||
Optical System | Wide,Narrow,wide,Flat and double Asymmetric light distribution | ||||
Luminous Flux | 4200lm~5100lm | 6600lm~8000lm | 8400lm~10000lm | ||
Luminous Output | 120lm/w /145lm/W | ||||
Colour Temperature | 3,000K /4,000K / 5,000K /6,000K | ||||
Colour Rendering Index(Ra) | > 80 | ||||
Dimming( Power control) | With / without DALI | ||||
Lifetime at (ta)30° | 50,000 h | ||||
Electronic Properties | |||||
Power Rating | 35W | 55W | 70W | ||
Protection class | SKI | ||||
Operating voltage | AC 180 - 240V (AC100-277V) | ||||
Frequency | 50 / 60 Hz | ||||
Installation Requirements | |||||
Application areas | Halls,warehouses,manufacturing facilities,sales premises | ||||
Specific Installation | Rail- Light System | ||||
Installation height | 3 to 20m | ||||
Permissible ambient temperature (ta) 30° | -25℃to +35℃ | ||||
Other properties | |||||
Certification | CE / TUV / SAA | ||||
Connection with circuit breaker (B16) | 300 Pcs | 300 Pcs | |||
Special features | |||||
End cover | IP20 | ||||
◈ APPLICATION
♦ Commercial
♦ Boardrooms, offices, corridors
♦ Warehouse
♦ Supermarket
