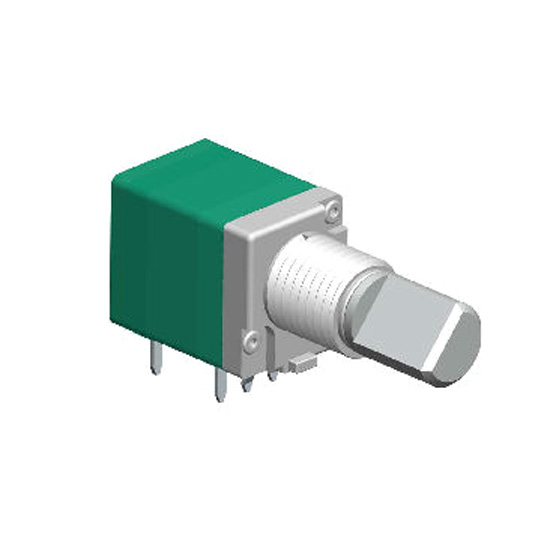

Well-engineered, this rotary potentiometer delivers reliable and stable performance. The high-quality component is easy to install. It is sturdily constructed for a long service life.

• From the RP09 series.
• Mechanical characteristic: rotational stopper strength: 3kgf.cm Min.
• Total rotational angle: 300 degrees.
• Rotational torque: 10-200gf.cm.
• Push-pull strength: 8kgf.cm Min.
• Shaft wobble: 0.6 x L/20mm p-p Max.
• Loop and number of poles: single pole and single throw (push on).
• Electrical characteristic: rated power: linear taper B: 0.05W, other taper: 0.025W.
• Maximum operating voltage: AC 50V, DC 10V.
• Insulation resistance: more than 100m ohm at 250V DC.
• Voltage proof: 1 minute at AC 300V.
• Initial contact resistance: less than 100m ohm.
• Endurable characteristic: operating temperature range: -30-60C.
• Rotational life: 30,000 cycles.
