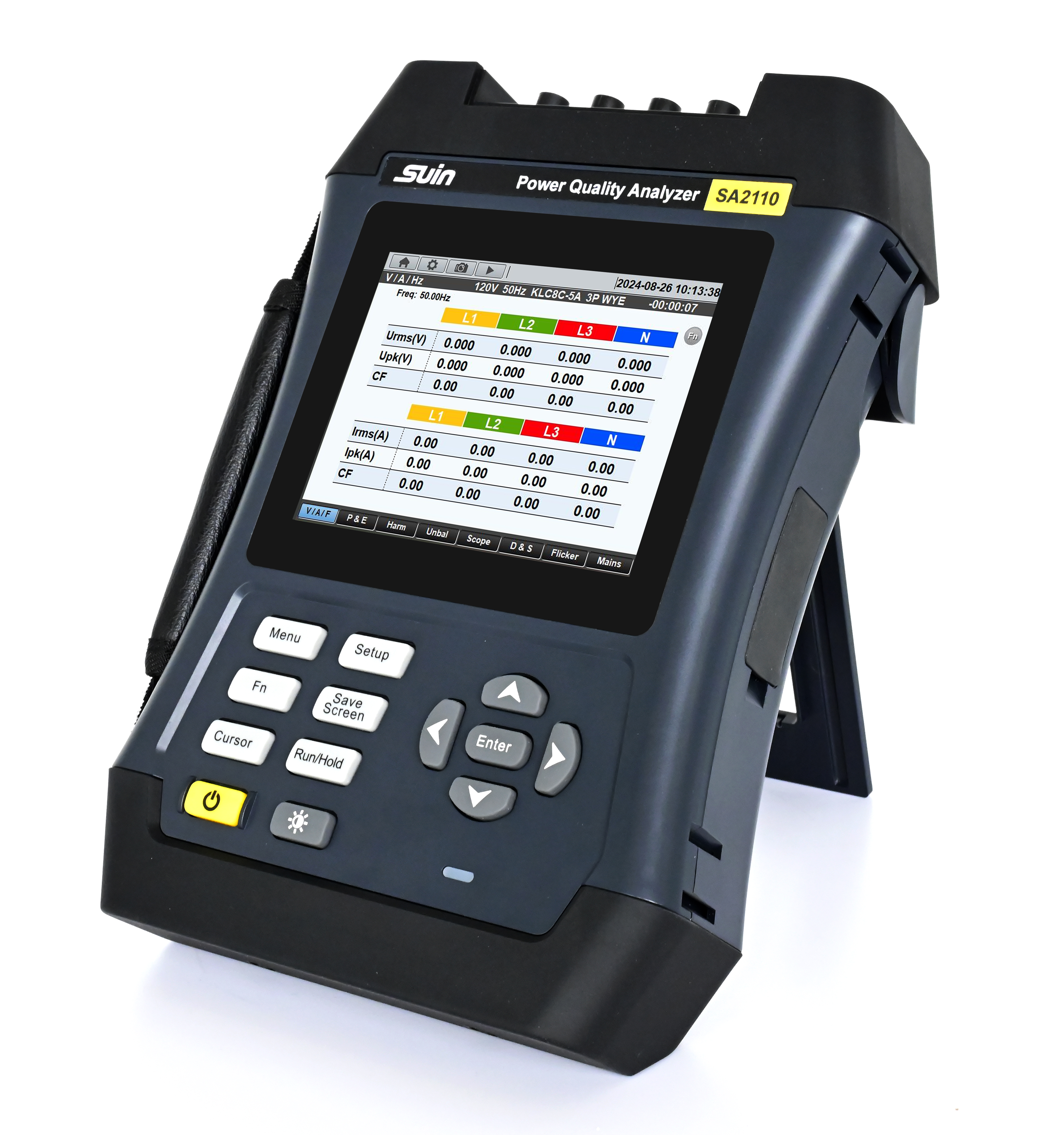

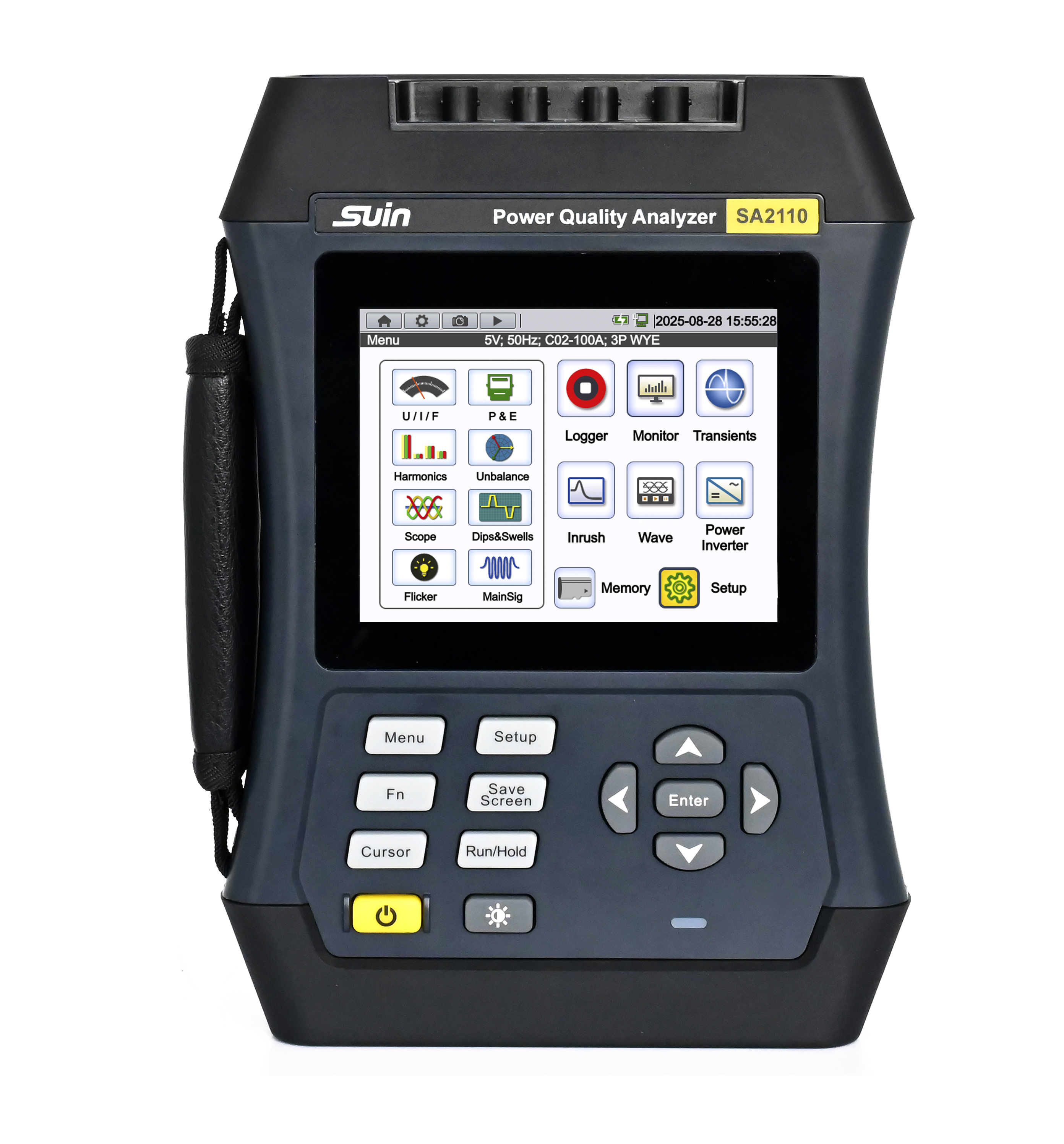

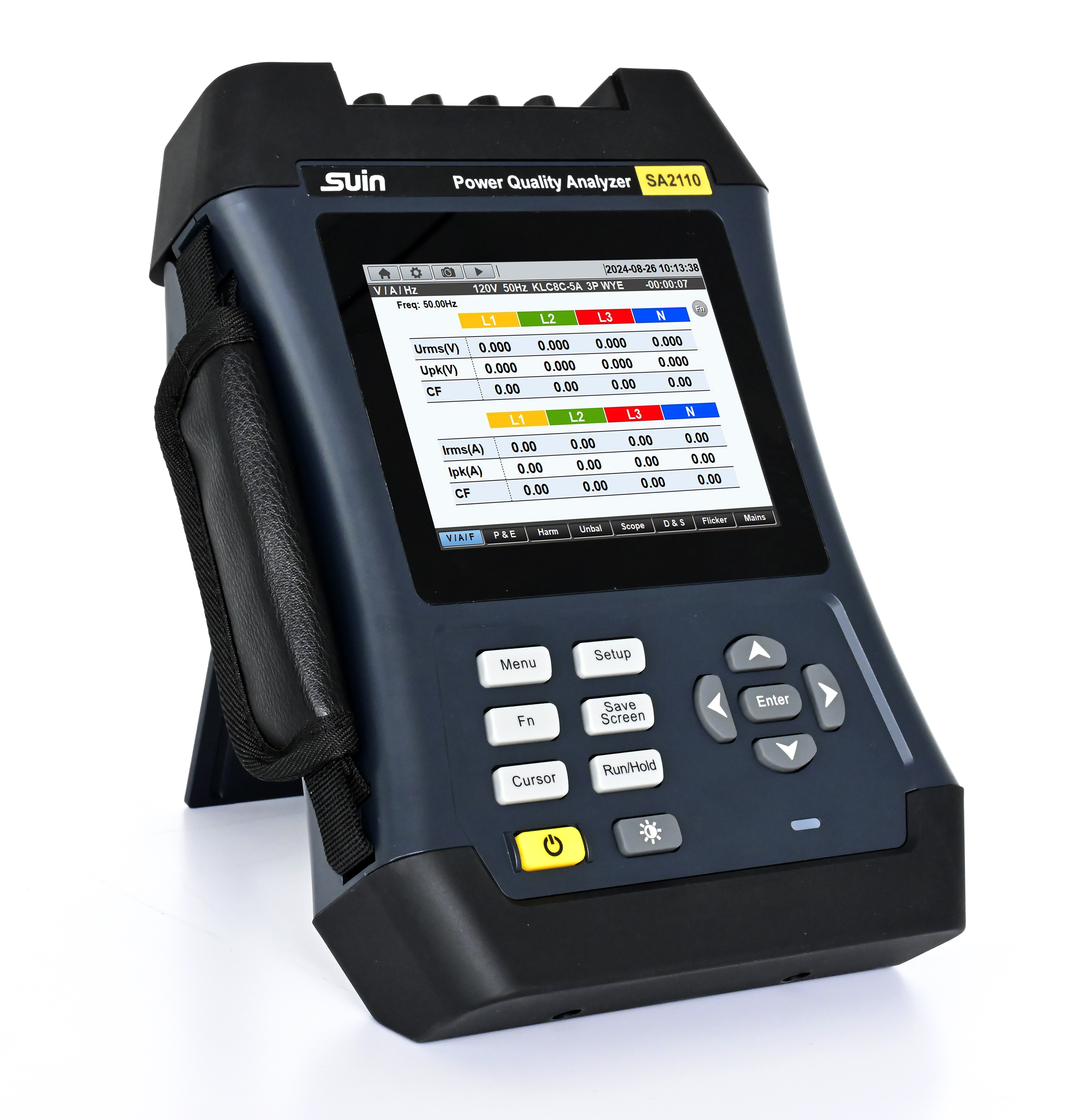

SA2110 POWER QUALITY ANALYZER

描述

聯絡供應商

	Measurement Range	Resolution	Accuracy
Voltage/Current/Frequency
Vrms(AC+DC)	1V ~ 120V	0.001V	Udin<100 V: ±0.2 V Udin>100 V: ±Udin× 0.2%
	120V ~ 400V	0.01V
	400V~1000V	0.1V
Vpk	1 ~ 1400V	0.01V	±5% of nominal voltage
V(Crest Factor)	1.0 ~ >2.8	0.01	±5%
Arms (AC, CT's error is not inclusive)
10mV/A	0~150A	clamp's range×current proportion, 5 effective digits display	±(0.1% reading+0.05% range)
1mV/A	1A~2000A		±(0.1% reading+0.05% range)
Flexible coils	10A~6000A		±(0.1% reading+0.1% range)
A(Crest Factor)	1 ~ 10	0.01	±5%
Frequency	42.5Hz~57.5Hz (50Hz nominal)	0.01Hz	±0.01Hz
	51Hz~69Hz (60Hz nominal)	0.01Hz	±0.01Hz
	320Hz~480Hz (400Hz nominal)	0.01Hz	±0.01Hz
Dips & Swells
Vrms1/2	0 ~ 200% of nominal voltage	refer to Vrms	±0.5% nominal voltage
Arms1/2	depends on current clamps	refer to Arms	±(0.2% reading+0.2% range+CT)
Harmonic (IEC61000-4-7)
Harmonic Number	1 ~ 100 (50/60Hz) 1~12 (400Hz)
Absolute Voltage	0-1000V	refer to Vrms	±5% reading (harmonica≥1% nominal value) ±0.05% nominal voltage (harmonica<1% nomial value)
Absolute Current	depends on current clamps	refer to Arms	±5% reading (harmonica≥3% nominal value) ±0.05% nominal current (harmonica<3% nomial value)
THD	0.0 ~ 100.0%	0.01%	±2.5%
Phase	-180° ~180 0°	0.1°	± nx0.5° (n=harmonic number)
Harmonic Power (50/60Hz)	1-50	Min 0.01kW	± (5%+ n×2% +CT)
Harmonic Power (400Hz)	1-12	Min 0.01kW
K factor	1-50	0.01	±10% (Irms≥1% current range)

Power and Energy (IEEE1459)
P, S, Q1	depends on nominal voltage and current clamps	mini 0.01kW	±(1%+10 digits+CT)
P, S, Q1	depends on nominal voltage and current clamps	mini 0.01kW	±(1%+10 digits+CT)
PF & cosФ	0 ~ 1	0.01	±0.01
kWh, kVAh, kvarh	depends on nominal voltage and current clamps		±(1%+10 digits+CT)
Flicker (IEC61000-4-15)
Pst(10min) Plt (2 hrs)	0.00 ~ 20.00	0.01	±5%
Unbalance
Voltage	0.0 ~ 30.0%	0.01%	±0.1%
Current	0.0 ~ 30.0%	0.01%	±1%
Voltage Phase	-360° ~ 0°	0.1°	±0.1°
Current Phase	-360° ~ 0°	0.1°	±0.5°
Voltage Transient
Vpk	±6000Vpk	0.01V	±15%
Vrms	10 ~ 1000Vrms	0.01V	±2.5%
Min. Test Time	5us
Sample rate	200kS/s
Inrush Current
Arms	depends on current clamps	refer to Arms	±(1%+CT)
Inrush Duration	1 ~ 32min selectable	10ms	±20ms
Mains Signaling
Signaling Frequency	60 ~ 3000Hz	0.1Hz
Relative V%	0% ~100%	0.1%	±0.4%
Absolute V3s (average 3s)	0.0 ~ 1000V	0.1V	±5% of nominal voltage
Logger
Memory	built-in Micro SD card, 32GB
Duration Time	2 hrs to 1 year, depends on the recording items and time interval
Interval	1s to 60 minutes
Monitor
Suport EN50160 in default or user-defined standard
General Characteristics
Communication	USB Host, LAN, WIFI
Language	Multi language including Chinese, English, etc.
Power	Li-ion, 38.48Wh (7.4 V,5200 mAh) / 12 V/2 A DC adaptor
Screen	640×480 pixels, 5.6 inch color LCD touch screen
Dimension/Weight	270(H)×200(W)×68(D) mm / approx. 2KGs
