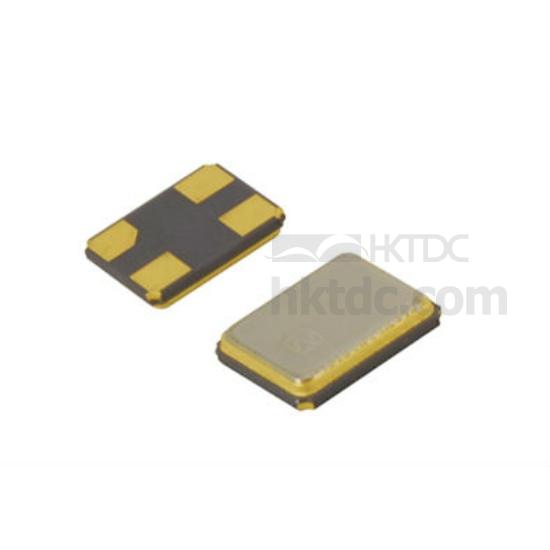

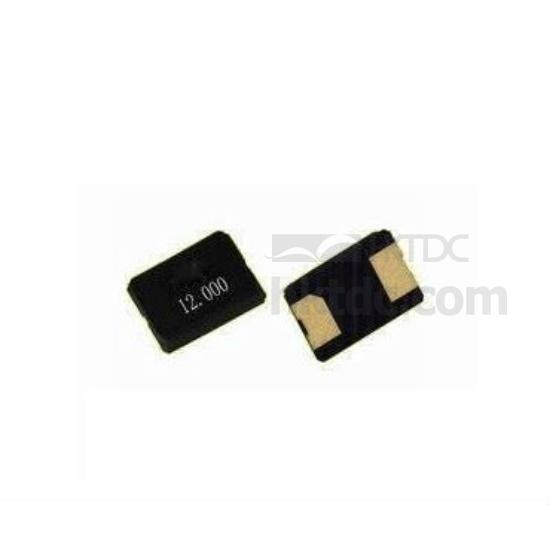

SMD Quartz Crystal
生產所需時間:
5 日
產品型號:
SMD 5032 Crystal
品牌名稱:
JFR
顏色:
Silver
尺寸:
50 x 32 MM
港口:
Yantian, Shenzhen
付款方式:
T/T, PayPal, L/C, Western Union
最低訂購數量:
1,000 piece(s)
是否有包裝:
有
是否可訂造:
是
描述
聯絡供應商
描述
Feature
Ultra thin, thickness 1.0mm
Leadless type
High precision characteristic covering up to
high frequency range
Automatic mounting
Embossed taping specification
Suitable for Reflow soldering
Ideally suited designed for disc drives, NB, PCs
and hand-held electronic products
Specifications
Frequency range:12.000 MHz to 40.000 MHz
Frequency tolerance:±30ppm ~ ±50ppm, or specify
Operating temperature range:-10°C ~+60°C ±30ppm,
-20°C ~+70°C ±50ppm or specify
Storage temperature range:-55 °C to +125 °C
Aging(25℃):±3ppm, ±5ppm/year
Shunt capaliance:5.0 pF Max
Drive level:10µW~100µW
Insulation resistance（Rs）：500Megao hms Minimum at D.C100
Load capacitance(CL):Drop test of 3 times on 2mm
stainless plate from 75cm height
Ultra thin, thickness 1.0mm
Leadless type
High precision characteristic covering up to
high frequency range
Automatic mounting
Embossed taping specification
Suitable for Reflow soldering
Ideally suited designed for disc drives, NB, PCs
and hand-held electronic products
Specifications
Frequency range:12.000 MHz to 40.000 MHz
Frequency tolerance:±30ppm ~ ±50ppm, or specify
Operating temperature range:-10°C ~+60°C ±30ppm,
-20°C ~+70°C ±50ppm or specify
Storage temperature range:-55 °C to +125 °C
Aging(25℃):±3ppm, ±5ppm/year
Shunt capaliance:5.0 pF Max
Drive level:10µW~100µW
Insulation resistance（Rs）：500Megao hms Minimum at D.C100
Load capacitance(CL):Drop test of 3 times on 2mm
stainless plate from 75cm height
