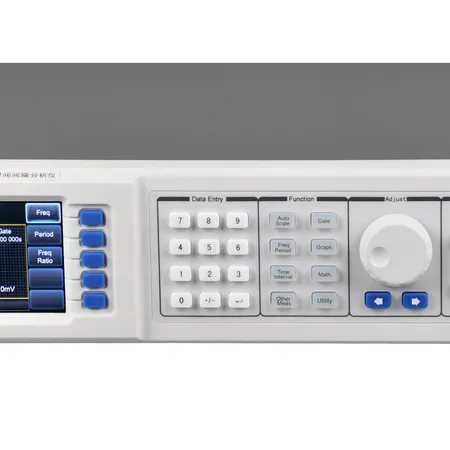

SS7406 Universal Frequency Counter
產品型號:
SS7406
描述
聯絡供應商
描述
Features:
- Minimum measuring resolution 11 digits/s.
- Time resolution 25ps(Typ.)
- 4.3'TFT-LCD display to show abundant information also trendgram and histogram of statistical calculation visually.
- Firm and sophisticated standard 2U design.
- Standard interface of RS-232, GPIB and LAN.
- Frequency measured can reach to 200MHz in CH1 and CH2, while in CH3 it has 3GHz/6.5GHz/12.4GHz/16GHz/20GHz/26.5GHz options.
- Measurement resolution: 11 digits/s
- Period: 5ns～1000s
- Time Interval Range: 1ns～10000s
- Time Resolution: 25ps
- Pulse Width: 1ns～10000s
- Duty Cycle: 1%～99%
- Phase difference: 1°～359°
- Dynamic Range: 50mVrms～1.0Vrms(Sine), 150mVPP～4.5VPP(Pulse)
- Input Impedance: 1MΩ//35pF or 50Ω
- Coupling Mode: AC or DC
- Input Attenuation: ×1 or ×10
- Trigger Level: -5.000V～+5.000V, min. step 1mV or auto trigger level
- Frequency Ratio, Up/Low Limit, Statistic Calculation
