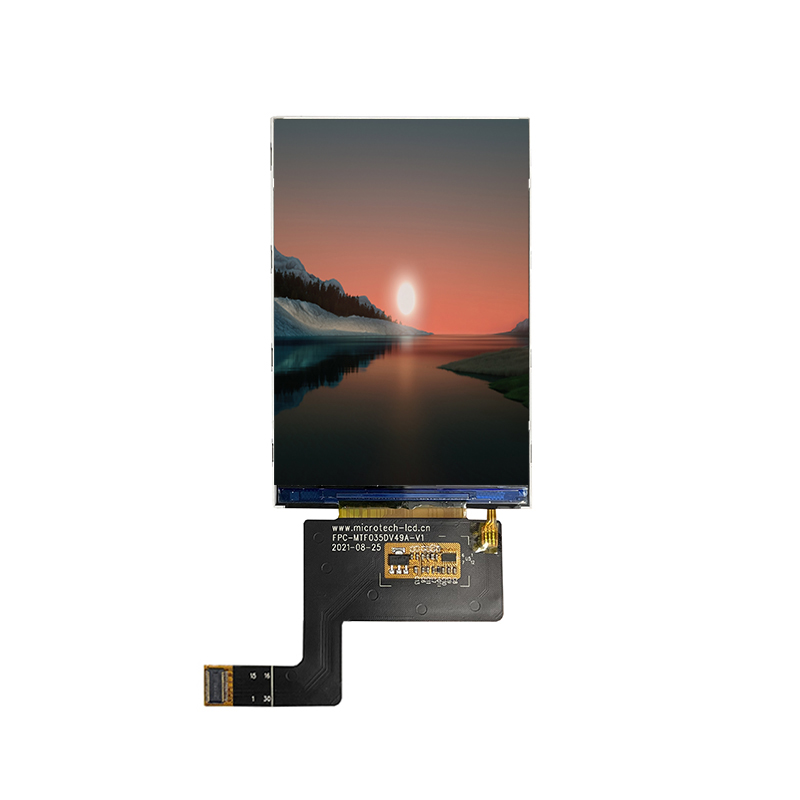

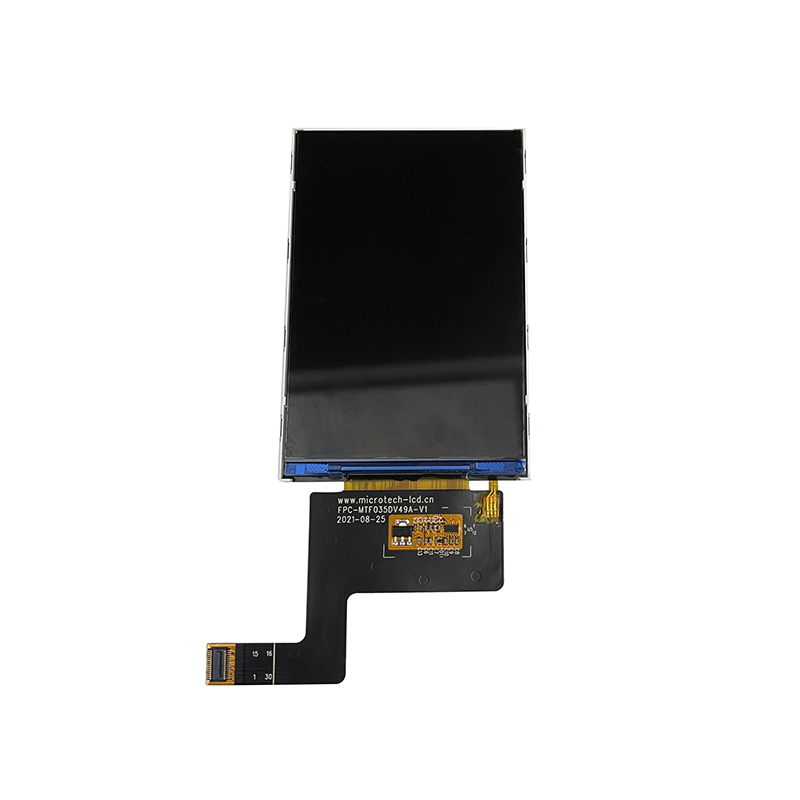

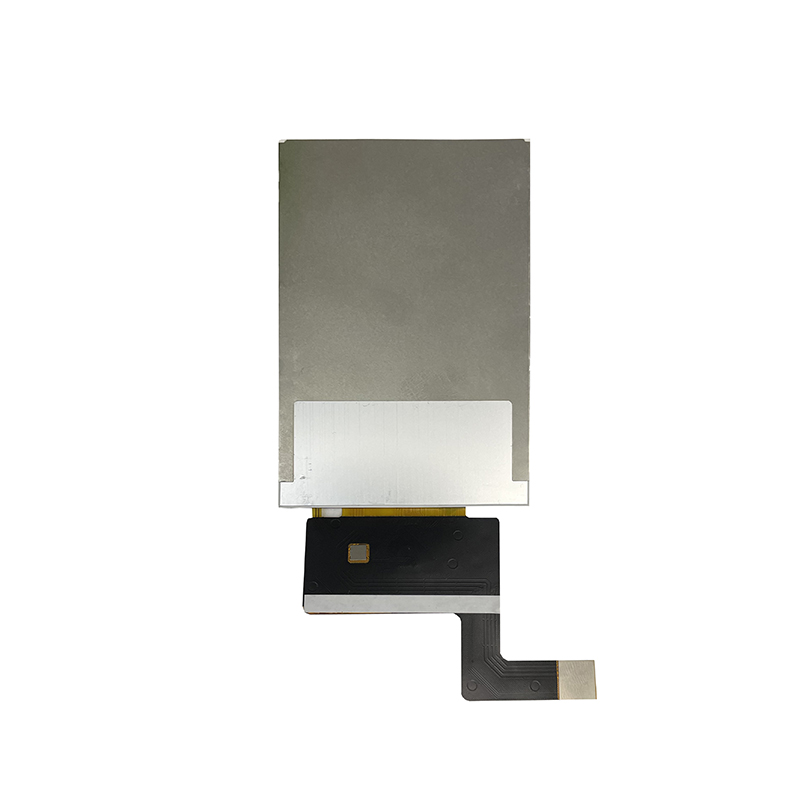

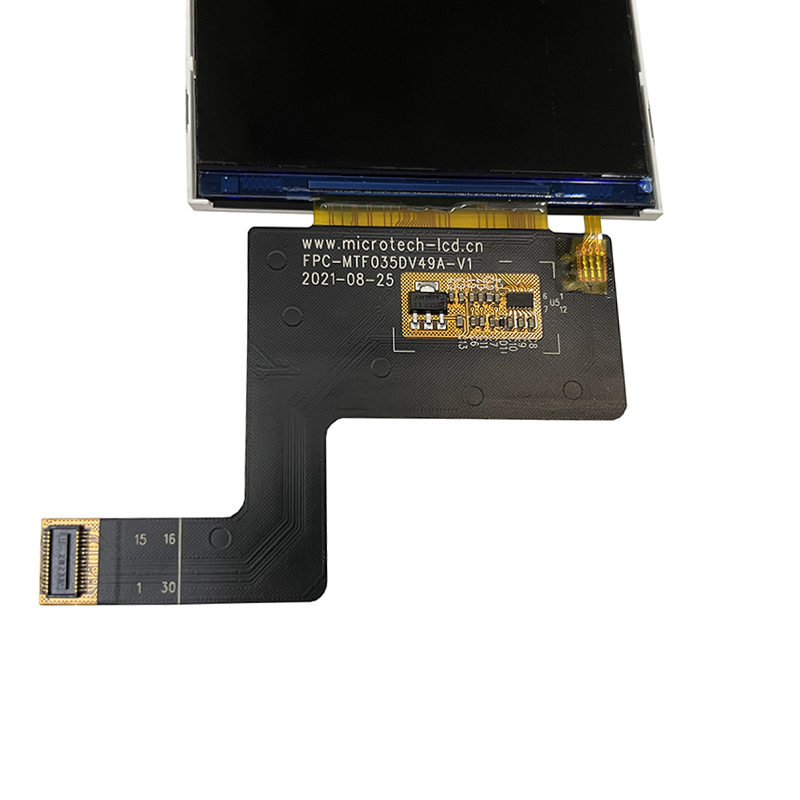

ST7703 3.54 inch LCD module TFT LCD 640*960 display with MIPI interface

美元 $5.00 - 美元 $10.00

生產所需時間:

25-45 日

運送方式:

Support Express · Sea freight · Land freight · Air freight

品牌:

Microtech-lcd

型號編號:

MTF035DV49A-V1

是否可訂造:

可以

尺寸:

3.54inch

描述

聯絡供應商

ST7703 3.54 inch LCD module TFT LCD 640*960 display with MIPI interface

Feature		Spec
Display Spec.	Size	3.54 inch
	Resolution	640(RGB) x 960
	Technology Type	a-Si
	Pixel Configuration	R.G.B. Vertical Stripe
	Pixel pitch(mm)	26(H)x3x78x(v)
	Display Mode	Normally Black
	LCM Luminance	400 Cd/m2
	Viewing Direction	ALL
Mechanical Characteristics	Module (W x H x D) (mm)	54.56x82.84x2.25±0.15mm
	Active Area(mm)	49.92x74.88mm
	Matchina Connection Tvoe	FPC
Electrical Characteristics	LED Numbers	6LEDs
	TFT Interface	MIPI
	Display color	16.7M
	LCD Driver IC	ST7703
