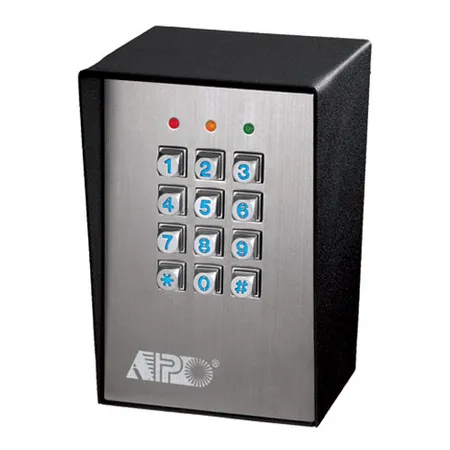

DK-9380 is a dual relay output, vandal resistant weatherproof keypad. It is a simple function keypad with easy programming method. The keypad has two operation mode, which is Single-User Mode and Multi-User Mode.

DK-9380A – Two output surface / gooseneck mount keypad

DK-9380B – Two output surface / gooseneck mount keypad with door bell output

DK-9380C – Two output flush mount keypad

DK-9380D – Two output flush mount keypad with door bell output

The keypad compatible with two operation modes:

(1) Single-User Mode – Simply require only one each user code for door open. One Code Mode.

(2) Multi-User Mode – Up to 100 user code for door open. The code can have length of 4-8 digits for higher security.

Features:

• Two relay output for door lock and equipment control
• Optional single or multi-user mode
• Different levels of user code mode
• Interlock for dual keypad installation
• Duress output for external device
• Visitor code programable with time
• Output relay change be toggle or time mode
• Built-in tamper switch
• Vandal-resistant weatherproof with back-lit metal keytop
• Suitable installation on wall or mounting on gooseneck post
