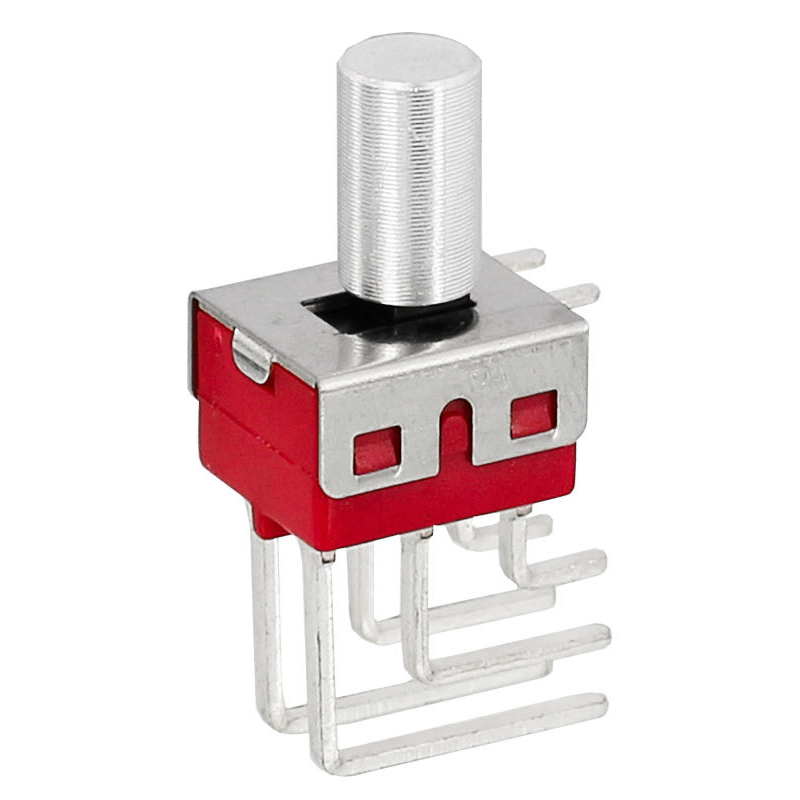

Control the current flow of small electronic devices with this sliding switch. It has a metallic toned actuator knob for control and allows easy adjustment of volume, brightness, etc. The sliding switch has eight terminals for installation and has a long working life of 10,000 cycles.
- Rating: 125V AC, 3A or 28V DC, 3A.
- Function: 2P2T.
- Timing: non-shorting.
- Contact resistance: 50mO max.
- Insulation resistance: 500V DC/100MO min.
- Dielectric strength / withstand voltage: 500V.
- AC operating force: 250gf ± 100gf.
- Terminal strength: 300gf.
- Displacement of actuator (knob): 1000gf.
- Life: 10,000 cycles.
- Operating temperature: -16 to +60°C.
- Metallic toned actuator knob for control.
- Allow easy adjustment of volume, brightness, etc.
- With eight terminals for installation.
- Long working life.
- Control the current flow of small electronic devices.
