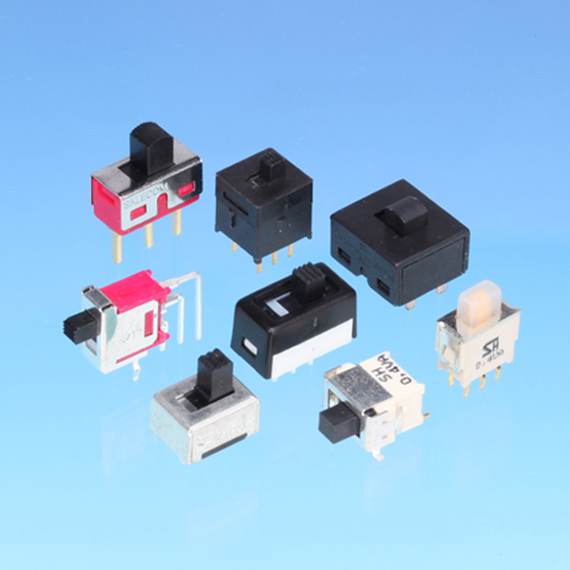

Slide Switches
Model No.:
T80-S, TS40-S and waterproof series
Type:
PC, Right angle and SMT
Contact Rating:
6A @ 125 VAC or 28 VDC ; 3A @ 250 VAC
Life Cycle:
30,000 cycles
Contact Resistance:
10mΩ max. (initial)
Insulation Resistance:
1,000MΩ min.
Dielectric Strength:
1,500 V RMS @ sea level
描述
聯絡供應商
描述
- The miniature switch has washable structure in thru-hole and surface mount models
- Its contact rating is 0.4 VA at most in maximum of 20 V AC or DC
- The slide switch has a mechanical and electrical life of 40000 cycles
- Its contact resistance is below 50 milliohms typ. Initial at 2-4 V DC, 100 mA
- The insulation resistance of the sealed switch is 1000 M ohm min
- It has a 500 V RMS min dielectric strength in seal level
- The configuration includes SPDT, DPDT while the function includes ON-ON, ON-OFF-ON
- This switch may be used for the power supply of various electrical appliances at home, office, etc
