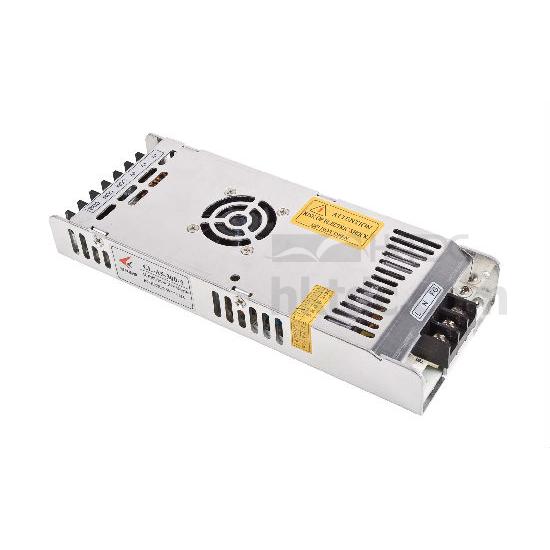

Slim LED Display Driver
產品型號:
CL-A5-300-5
港口:
Shanghai, Shenzhen, Guangzhou
付款方式:
T/T
最低訂購數量:
100
是否有包裝:
有
是否可訂造:
是
輸入電壓:
220 伏
輸出功率:
201 - 300瓦
輸出類型:
單
原產地:
中國內地
描述
聯絡供應商
描述
- Output: 300W 5V
- Built-in EMI Filter
- 100% full load burn-in test
- Protections: over voltage/ over current/ short circuit
- AC input voltage range: 190-250V AC
- Input frequency: 47-63Hz
- Output adjustment range: ± 5% - ± 10%
- Output over load protection: 110 - 150%
- Output over voltage protection: 115 - 150%
- Withstand voltage:I/P-O/P: 1.5KV AC/1min
- I/P-F/G: 1.5KV AC/1min
- Rise time: 50ms
- Hold up time: 20ms
- Working temerature: -30 ~ +50
- Storage temperature: -20 ~ +85
- Safety standards: design fefer to GB4943.UL60950.EN60950
- EMC standards: design refer to GB9254.EN55022 class A
- MTBF: >50,000hours
- Cooling method: convection
