FEATURES

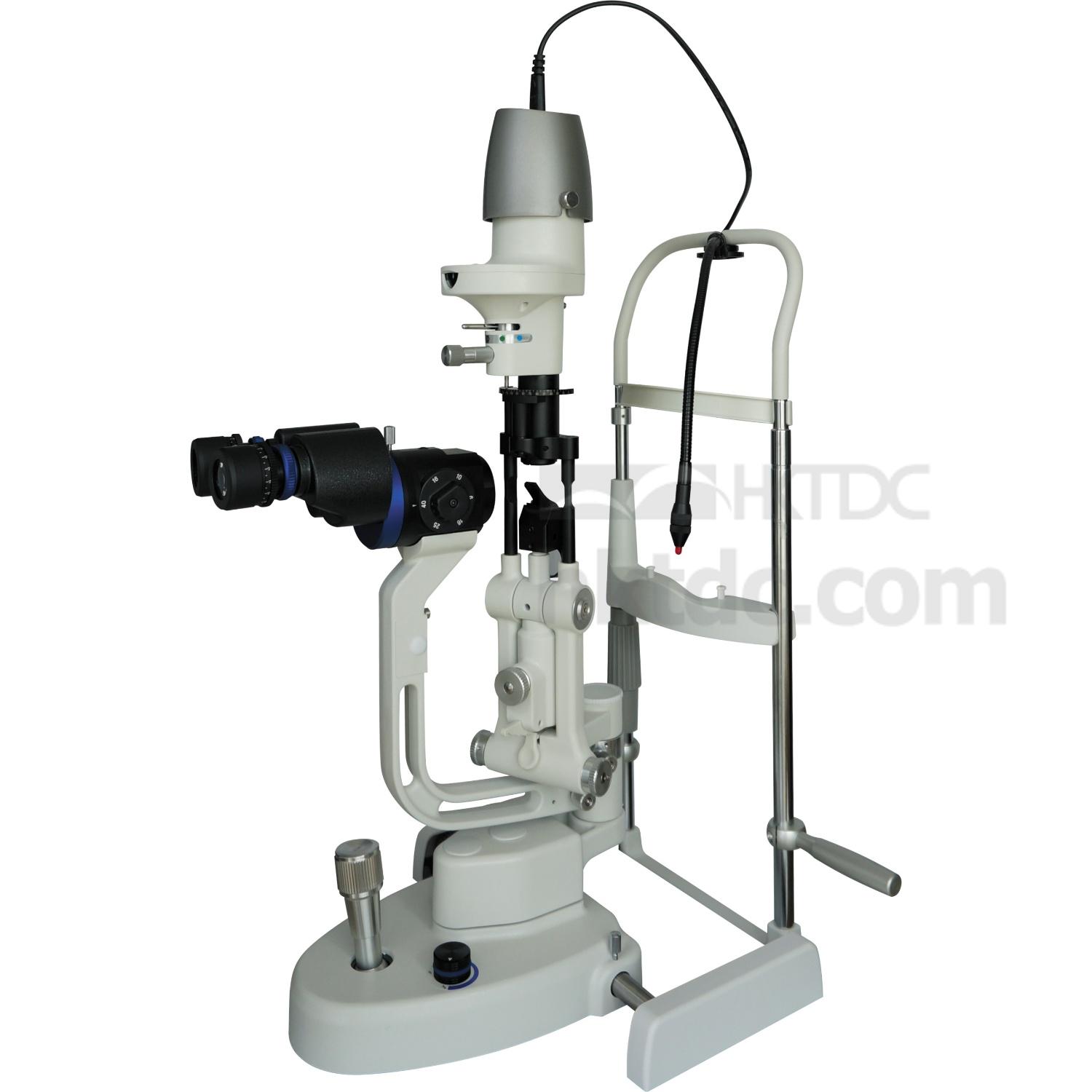

- SL-700 series slit lamp has 3 different models, 2-step, 3-step and 5-step are available.
- The resolution is improved to 180k lux, it can give you a clean and clear image.
- The illuminance is greatly improved to over 18Klux. It meets the demand of Fundus diagnosis, especial for the diagnosis when the vitrella or vitreous opacities are distinctive.
- The operating feel of drum is improved.
- The range of refractive degree of eyepiece is improved. Now is from +6.00D to -8.00D. When tuning the refractive degree of eyepiece, the cover of eyepiece does not turn along with it,
- so that avoid the inconvenience for user.
- The compatibility to different brands of beam splitter is improved.
- It’s compatible with the applanation tonometer of HAAG-STREIT
- The compatibility to different brands of laser adaptor is improved.
- Slit illumination
- Slit width...........................Continuously variable from 0 to 9mm
- Slit length..........................Continuously variable from 1 to 9mm
- Illumination fields Circle..................................9/5/3/2/1/0.2mm
- Test mark with fixation star
- Slit image radial range.................................................0～180°
- Filters..................Blue, red free (green), grey (10%) The UV filter and the heat absorption filter are permanently mounted
- Light source.........................Halogen-bulb 6V 20W/LED 3V 3W
- Slit illumination intensity..............................120k Lux-180k Lux
- Chin-rest
- Fixation....................................................................Red LED
- Vertical adjustment.......................................................80mm
- Power supply
- Input...........................................220V/110V±10%, 50Hz/60Hz
- Output.................................................................30VA (max.)
- Light source 6V continuous; Fixation 3V
