描述
- Lighting control
- Input: AC 220V
- Output: 1-10V DC
- 1 Control function
1.1 Intelligent lighting controller can control the power on and off of the power supply circuit of the lamp and control the illumination change of the lamp under the management of the central controller and other equipment through the power line carrier communication signal. The control range is 0%-100%.
1.2 It automatically controls the power on and off of the lamp power supply circuit according to the set schedule, also controls the illumination change of the lamp, with 0%-100% of the control range.
2 Fault alarm function
It can automatically report fault information to the centralized controller and other management devices, which will continuously poll the status information of the intelligent lighting controller.
3 Communication function

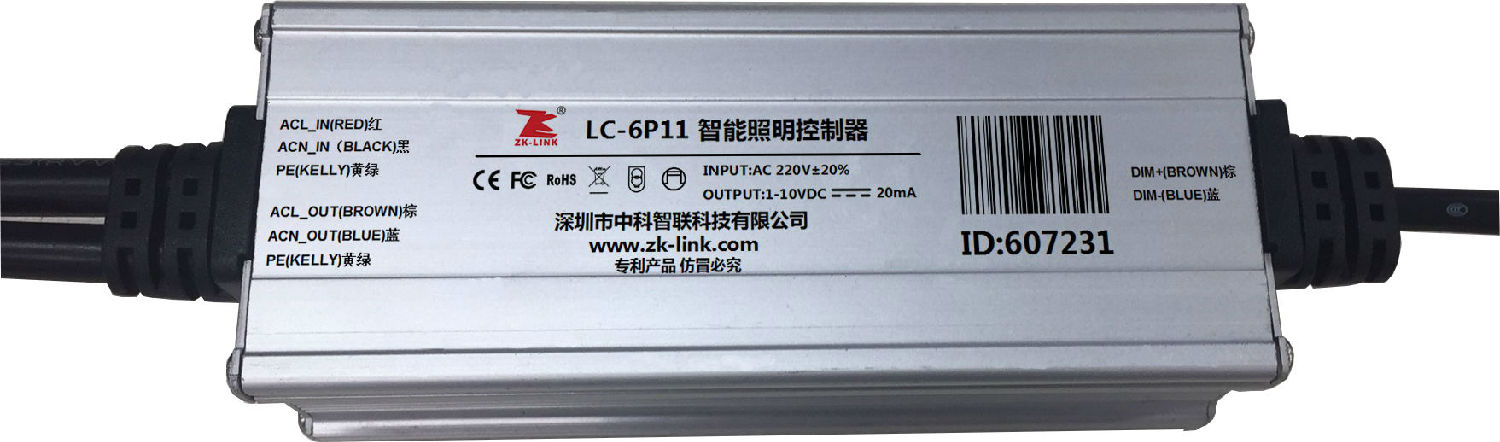

The LC-6P11 adopts OFDM multi-subcarrier power line communication technology and has strong anti-interference ability, and the point-to-point distance can reach 2000 meters. At the same time, our company's self-organizing network technology, without manual intervention, has a short debugging cycle.
4 AC sampling function
It integrates professional energy metering chip, which can collect the current value, voltage value and active power value of the lamp for system analysis and recording.
5 Temperature detection function
It can monitor the internal temperature of the lamp. The monitoring range is -45°C-99°C. Users can set the alarm threshold. When the internal temperature is too high, the temperature fault is reported and the brightness of the lamp is automatically lowered to protect the lamp from damage. (customized)
6 Protection function
The power input can withstand 6 hours AC 420V equipment is not damaged, the equipment works normally after the grid returns to normal; when the controller fails, the switch can be normally turned on and off through the loop switch, but it cannot be remotely controlled.
