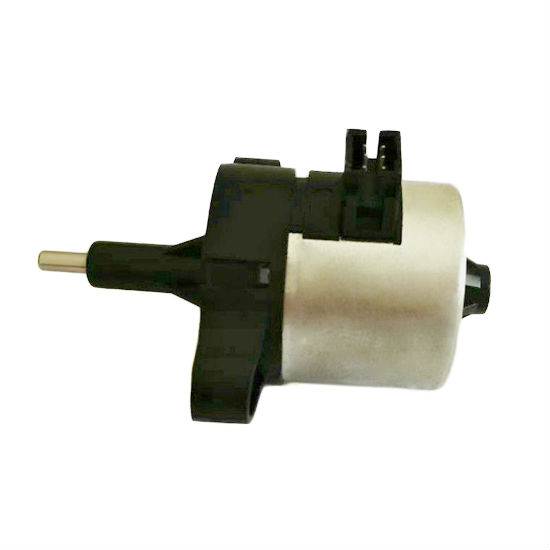

Stepping Motor
描述
聯絡供應商
描述
- Key Specifications/Special Features:
- Model: LSM-28LE
- Diameter : φ28mm
- Step Angle : 15°
- Rated Voltage: 24V
- Rotation : CW/CCW
- Winding Resistance : 150Ω/phase
- No. of Phase: 2
- Drive Mode : 2-2
- Reference current ：0.16A,load current 0.2A max
- Controlling force： min 25N(at 30% 300Hz/20℃)
- Stroke ： 1/24mm (0.04166mm)
- Max stroke ： 5mm
- Thread pitch ：1.0mm
- Stroke speed ： 12.5mm/s at 300Hz
- Connector housing ： Equate molex 51110-0660
- Class of Insulation ： Class B
- Weight :63g
- Used for Coffee Machine, ValveThe performance parameters above only for your reference, they can be redesigned based on clients’ requirements.
