Switching power supply
分享此頁面
品牌名稱:
W&T
顏色:
Black
港口:
Shenzhen
付款方式:
T/T or L/C
最低訂購數量:
1000
描述
聯絡供應商
描述

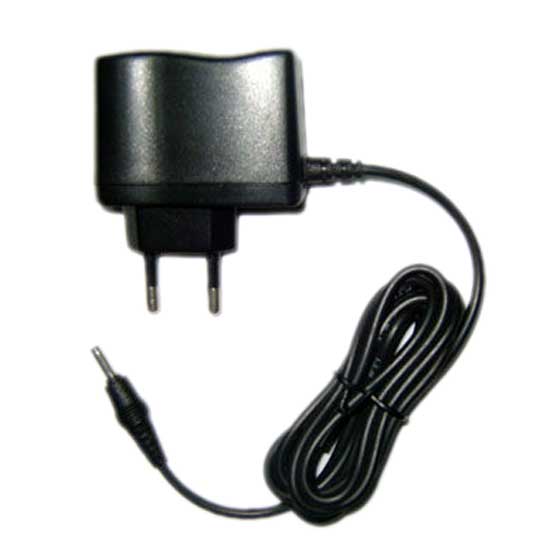

Featured is a well-designed wall adaptor working in the voltage range from 100V AC to 240V AC. The over-voltage, over-current, and short-circuit protection functions are offered for safety assurance. The adaptor is suitable for portable devices, testers and industrial machines, communication terminals, digital products, radio devices and medical and exercise devices, etc.
  • Input voltage: 100-240V AC, 50-60Hz.
  • Range voltage: 90-264V AC, 47-63Hz.
  • Output power: 0-4W.
  • Output voltage: DC3.7V-24.0V.
  • Output current: 100mA-800mA.
  • Over-voltage protection: 120%.
  • Over-current protection: 120%.
  • Short-circuit protection: auto recovery.
  • Load regulation: ±5%.
  • MTBF: 50,000hr.
  • Operating temperature: 0 to 40℃.
  • Storage temperature: -20 to 85℃.
  • Operating relative humidity: 5~95%rh.
  • Withstanding voltage: AC3,000V(minimum), 5mA(maximum).
  • Insulation resistance: DC500V, 100mω(minimum).
  • Safety: PSE, UL, CE, GS, EK, FCC, CB and BS.
