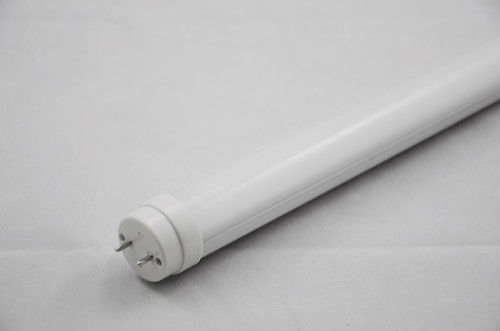

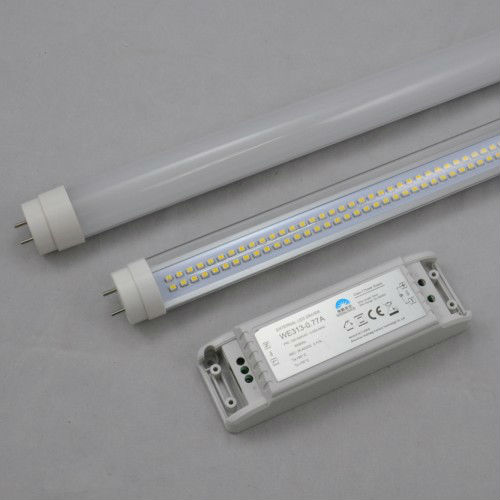

T8 LED Tube with External Driver
描述
聯絡供應商
描述
- LED tube be used for electric, appearance, mechanical feature and externalities requirement etc.
- Low lumens depreciation, high illuminance, high efficiency, good heat dissipation.
- Input voltage: AC 100-240V, start time is less 2 seconds.

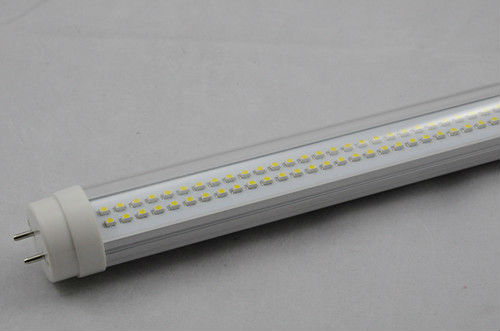

- Using ever light SMD3528 LEDs. The light attenuation is less 5%/1000 hours on based on always aging testing. The luminous flux is greater than 70%.
- Housings material: aluminum-AL6063 radiating good.
- Lifespan: more than 30,000 hours.
- CRI: ≥70.
- This product used in normal, indoor environment.
- Operating temperature: -25℃—50℃.
- Storage temperature: -20℃—50℃.
- Operation humidity: 20%—90%.
- Storage humidity: 10%—95%.
- Detection temperature: 25℃±10℃.
- Atmospheric pressure: 70—106mPa.
- Input feature: AC 100-240V 50~60Hz.
- Input current: 100mA (max.) AC 240V.
- Output voltage: 40V.
- Output voltage: 468mA±15mA.
- Power efficiency: ≥80%.
- Power factor PF: ≥0.95.
- Power rating: 19.5W～21.5W.
- Harmonic distortion: 20% max.
- Luminous flux: ≥1600lm.
- Color temperature: 2700-3200K, 4000-4500K, 6000-6500K.
- Beam angle: 120°.
- CRI: ≥70.
- Packing way: using foam to packing the lamps, safety and stable.
- 20pcs lamps be packed in one big carton. 5pcs in one foam box, 4pcs middle box be packing in one big carton.
- Foam box: L1290mm x W250mm x H45mm.
- Big carton: L1300mm x W260mm x H220mm.
- Packing quantity: 5pcs/middle box, 4 middle boxes/per big carton.
- The gross weight: 15kg.
- Dimension: φ30mm x L1200mm (this length not include the pin, if add pin, the length is 1214mm).
- Weight: 475g.
- Material: aluminum-AL6063+PC cover radiating good and beautiful.
