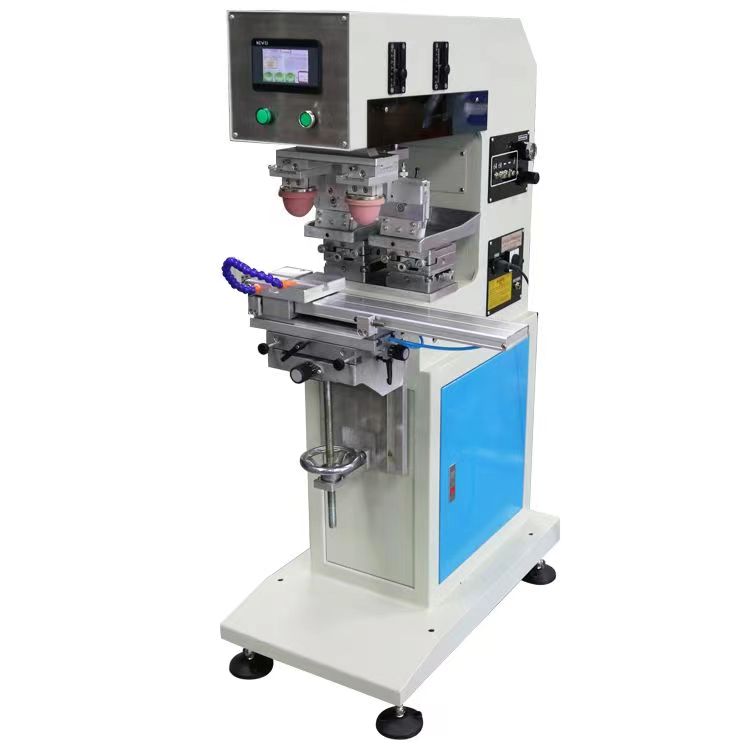

TWO COLOR TOUCH SCREEN PAD PRINTER
美元 $1800.00 - 美元 $2500.00
生產所需時間:
10 日
運送方式:
BY SEA
品牌:
PRINTSO
型號編號:
PP-TC-150S2
尺寸:
420 x 780 x 1380mm
重量:
135KG
Application:
From printing on three-dimensional plastic parts to embossed or etched surfaces or even golf balls, pad printing can be used for a wide variety of applications
描述
聯絡供應商
描述
Features:
Advanced color touch screen control system
Comprehensive controlling interface
User friendly control with built-in output counter
Easy mounting & dismounting sealed ink cup system
Easy installation of steel plate.
Smooth pneumatics shuttle mechanism with quiet operation
Strong machine body
Guarded foot paddle
Anodized aluminum parts
Switching power supply enable AC power input from 100~240V 50/60Hz
CE Standard
SPECIFCATIONS | ||
Model no | : | PP-TC-150S2 (Touch Screen) |
No. of color | : | 1 color |
Ink Cup Diameter | : | Ø90mm |
Max. plate size | : | 250mm x 100mm |
Max. printing area | : | Ø80mm |
Max. speed | : | 12-30 cycles per min. |
Power voltage | : | 100-240V, 50/60Hz |
Power consumption | : | 45W |
Air pressure | : | 0.5-0.65 Mpa/cm² |
Air consumption | : | 8.7 L/min. |
Machine dimension | : | 420 x 780 x 1380mm |
Net weight | : | 135KG |
