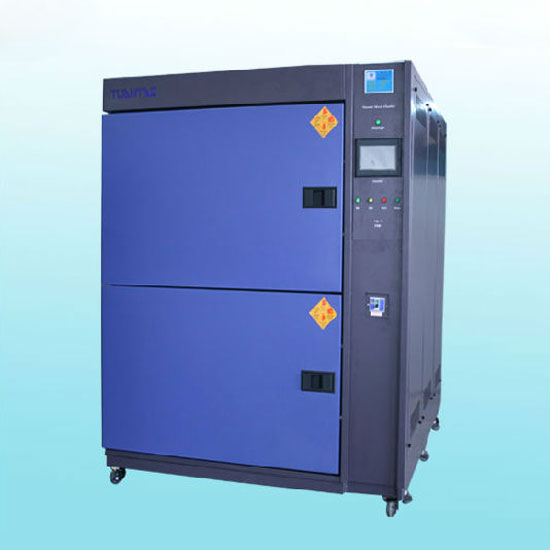

This is a 110L air to air 2-zone basket type thermal shock test chamber with a professional design. It is well designed to deliver reliable and high-precision performance. This thermal shock test chamber boasts a robust housing for durability.

• 110L air to air 2-zone basket type thermal shock test chamber.
• Power supply: AC 380V (±10%) 50Hz 3∮ 5-wire 50A.
• Zones: hot zone/cold zone.
• Basket size: 650 (W) x 460 (D) x 370 (H) mm.
• Exterior size: 1,580 (W) x 1,870 (D) x 1,890 (H) mm.
• Hot zone temperature range: +50°C - +200°C.
• Cold zone temperature range: -50°C - -10°C.
• Temperature fluctuation: ±1.5°C°C.
• Indication resolution: 0.01°C.
• Heat up and cool down time: in the hot zone, about 30 minutes from the room temperature to 200°C (empty chamber) and in the cold zone, about 50 minutes from the room ambient temperature to -50°C (empty chamber).
• Basket moves from the cold zone to the hot zone in only 10 - 15 seconds.
• Basket: use imported air cylinder and crown block to control the move of the basket.
• Basket fool-proofing design.
• Chamber materials: cold and heat resistant SUS#304 stainless steel for the internal chamber, galvanized steel with an ivory white powder coated finish for the external chamber.
• Insulation: glass wool and PUF, thickness: 100mm.
• Perspiration resistant: K style tube.
• Accessories: temperature resistant silicone gasket x 2 (see the spare part list), loading capacity of a specimen basket: 50kg/timer (9999.99h) x 1/cable port (diameter: 50mm)/high low temperature auto-converting unit x 1 set.
• Other colors are available.
