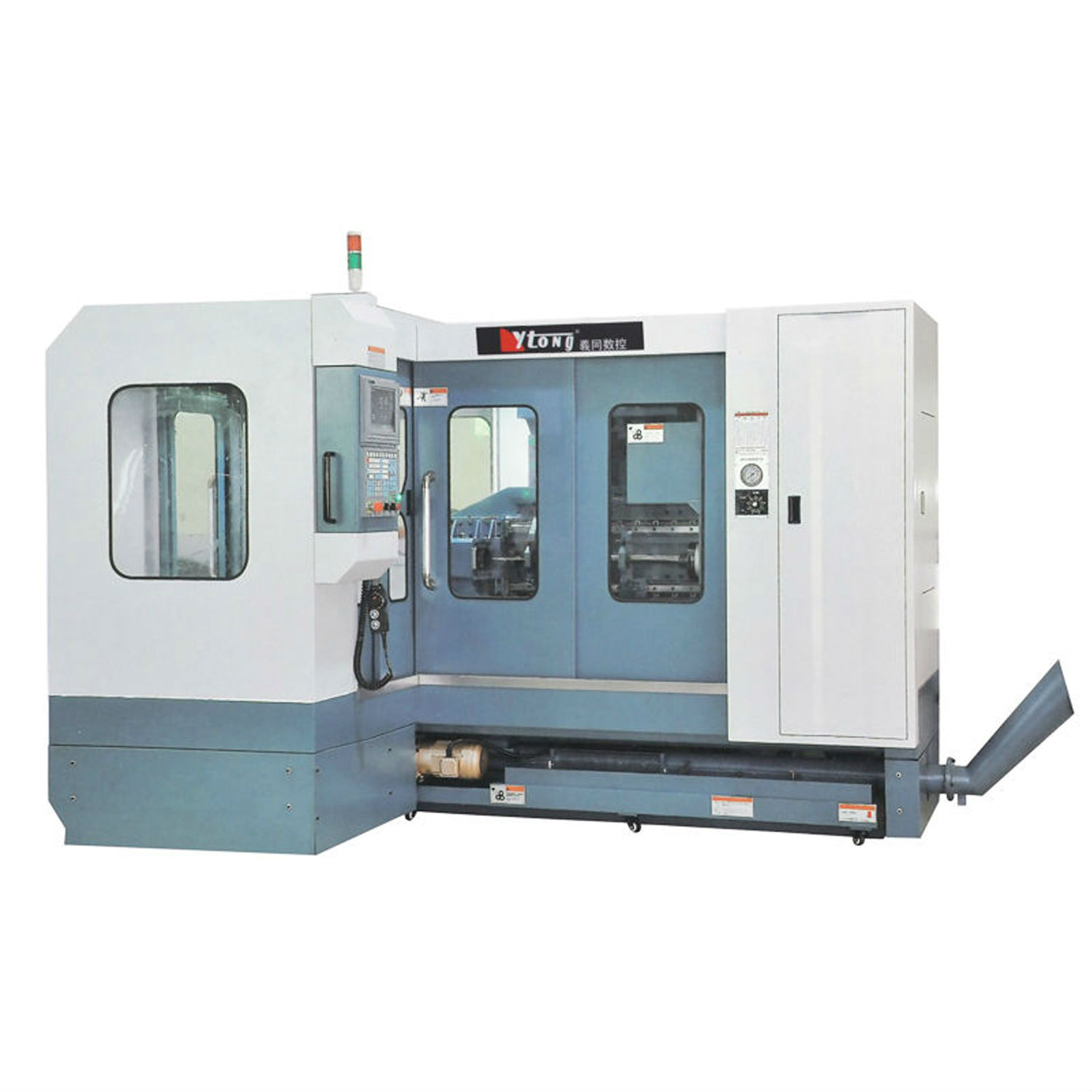

Triaxial Deep Hole Drilling Machine

產品型號:

YT-800

品牌名稱:

Yitong

尺寸:

(L x W x H) (mm) 3500 x 2600 x 2000

描述

聯絡供應商

Quantity of spindle: 1-axis.
Drilling diameter: 2.5-30.
Directional maximum depth of drilling: 800.
Table size: 800x600.
Travel longitude(X) (mm): 800.
Travel crossward(Y) (mm): 800.
Travel vertical (Z) (mm): 820.
Drilling cutting feed rate: 10-250.
Maximum spindle rotation speed (rpm): 7000rpm.
Spindle motor AC (servo): 5.5-7.5KW.
Moving the motor from right to left on work table AC (servo): -2.0KW.
Moving the motor from right to up on down on spindle AC (servo): -2.0KW.
Moving the motor from front to back on spindle AC (servo): -1.5KW.
Pressure of cutting pressure pump (kg/cm²): 80.
Oil mass of oil pressure pump (liter/min:) 6-80.
Capacity of cutting oil tank: 600.
Maximum load of table: 5000.
Net weight: 6500.
Stock available: 100.
Fast, accurate, stable and deep hole processing is widely used in mold manufacturing, machinery manufacturing, automotive and manufacturing industries

M Hannah cast iron castings with high quality machine, and after aging treatment, casting an even, high rigidity and stability.

Triaxial imported high-rigidity, high-precision screw processing provides powerful torque, more durable.
