Trunk Rail Track Rail System
分享此頁面
美元 $6.00 - 美元 $22.00
生產所需時間:
6 日
運送方式:
DHL/UPS/FEDEX/TNT and other
品牌:
CoreShine
型號編號:
CFT-15F-05WH
材料:
Aluminum Alloy + PMMA lens/PC cover
尺寸:
600mm, 1200mm, 1500mm, 2400mm, 3000mm
是否可訂造:
可以
應用:
Supermarket, Warehouse, Workshop, Office, Car Parking Industrial etc.
Color:
White, Black, Silver
Installation Method:
Chain, Cord, Rod, Surface mounted
Certifications:
CE/CB/ETL/DTC/SAA/FCC/GS/UL
描述
聯絡供應商
描述
Product Details

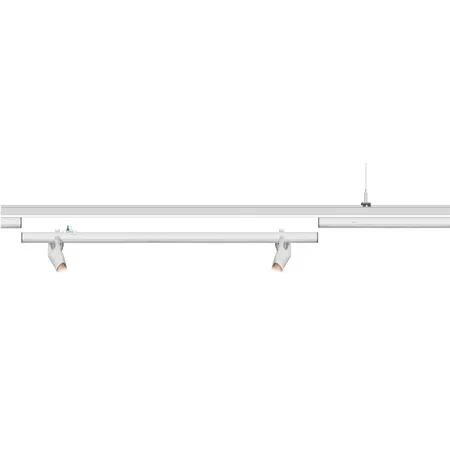

Coreshine Linear Trunk Rail
  • 3-phase pre-selection via moving luminaire male connector pin to right or left to installation in rail
  • Trunking rail as standard with 5,8 or 12 core through-wiring with 2.5mm² cable for power supply and 1.5mm² cable for dimming control
  • The maximum current is 16A, allowing 70pcs of 1500mm 50W in one serial row 220VAC power supply
  • Separate power supplies, dimming or emergency supply can be integrated
  • Electrical feed possible in sideward or end area of a trunking rail arrangement via special trucking rail element
  • Trunking rail modules with pre-assembled connectors
  • Wide distances between suspension points to 3m with self-supporting connector elements.
  • Simple mounting of trunking rail elements with pre-assembled connectors with integral plug-in system (electrical and mechanical connector)
  • Flexible electrical feed-in and feed-out points

Europe StandardsNorth America Standards
Length
  • 600mm, 1500mm, 3000mm
  • 600mm, 1200mm, 2400mm
Wires
  • 5 wire: L1, L2, L3 N, FG
  • 8 wire: L1, L2, L3 N, FG, CHR, + 2 wires for Dimming/Emergency
  • 12 wire: L1, L2, L3 N, FG, CHR, +2 wires for Dimming + 4 wires for Emergency converter & Battery
Why Choose Coreshine

CoreShine was founded in 2005 as one of the first LED lighting manufacturers in Shenzhen. In the beginning, we produced a variety of products like many other manufacturers, such as tubes, bulbs, 2G11 LED products to replace the traditional lighting.

  • Established in 2005
  • Located in Shenzhen
  • Number of employees 200 staffs
  • 13,000 square meter 9 floors of workshop + 1 floor of office
  • Complete Industry Layout: R&D, Production, Marketing
  • Our Goal: To be World Leader of Linear Lighting System

Coreshine will continue to work in this product area and strive to become the absolute leader in the industry of the LED Linear trunking system in China.

R&D

  • Our R&D team has 9 engineers in the field of Electronics, Software, Mechanical, and Structure engineering.
  • Their average industry experience is more than 10 years.

Production

  • More than 95% of our accessories are made by ourselves.
  • We have 156 production staff, and 60% of them have 3-5 years of lighting experience.
  • All our employees have professional training before going to work, and only 100% passed of the employees can be hired.

QC

  • Our QC department consists of 11 people, all of them are very experienced in this field.
  • They will do all the finished product testing with 10% for each order, according to the strict inspection standards and instructions. Like Integrating Sphere test and so on.
Our Advantage
  • 5 years warranty
  • Toolless installation
  • Brand Components
  • Heat radiating area 106cm²/w
  • Longer warranty, Less maintenance
  • Rigorous technical
  • Quick connector
  • Electrical safety design
  • Organized wiring
  • Modularity, integration structure
