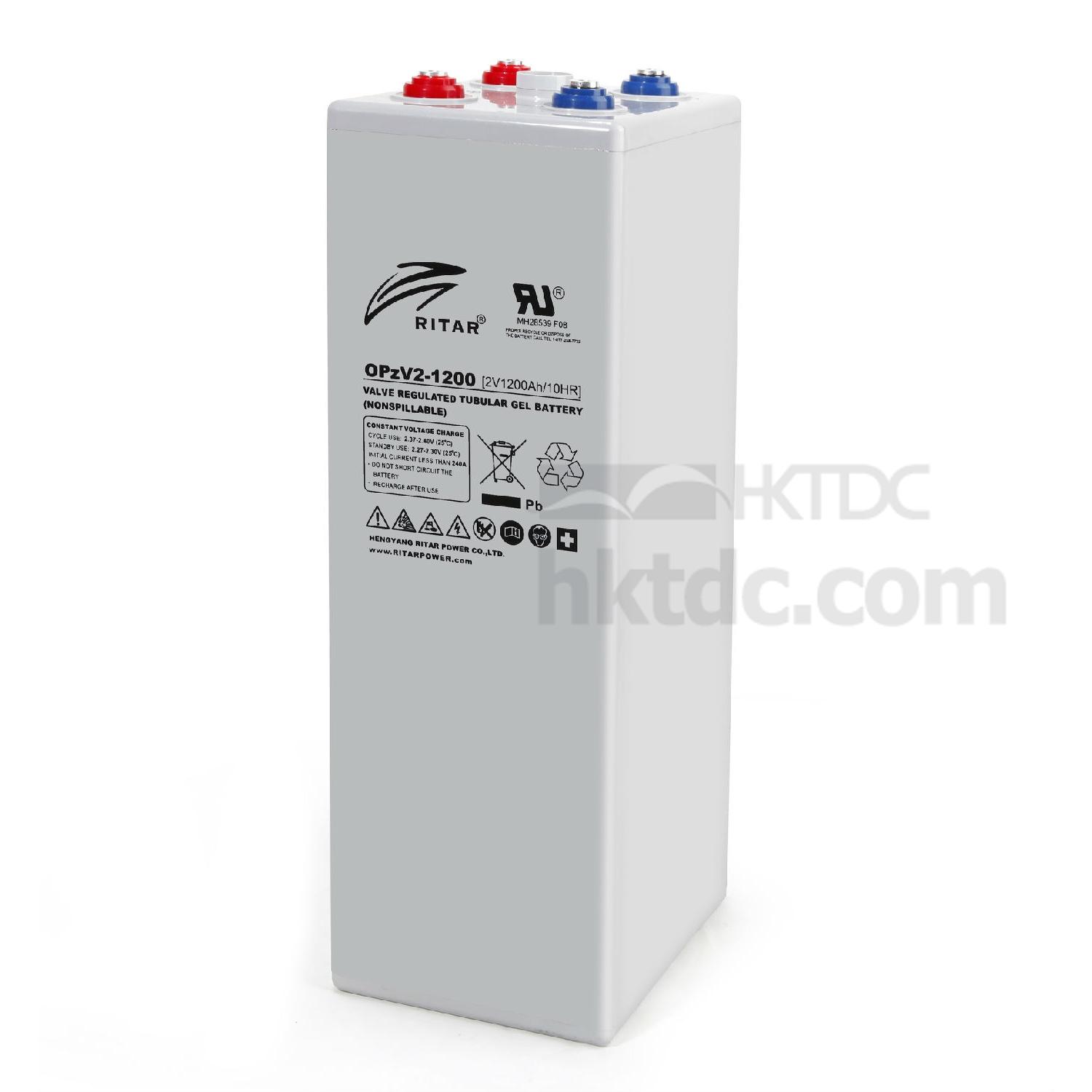

Tubular Gel Battery

重量:

產品型號:

OPzV2-1200

品牌名稱:

RITAR

顏色:

White

尺寸:

275(L)×210(W)×681(H)mm

港口:

Shenzhen, China

付款方式:

T/T, L/C

最低訂購數量:

100

是否有包裝:

有

是否可訂造:

是

額定容量:

2V1200AH

密封類型:

Sealed

用途:

Solar power

維護方式:

Maintenance free lead acid battery

描述

聯絡供應商

Capacity: 2V1200AH.
Voltage per unit: 2v (single cell).
Capacity: 1200Ah@10hr-rate to 1.80V per cell @25℃.
Max discharge current: 4000A (5 seconds).
Internal resistance: approximately 0.25mΩ.
Operating temperature range: discharge: -40℃~70℃; charge: 0℃~50℃; storage: -20℃~60℃.
Normal operating temperature range: 25℃±5℃.
Float charging voltage: 2.25 to 2.3 VDC/unit average at 25℃.
Recommended maximum charging current: 240A.
Equalization and cycle service: 2.37 to 2.40 VDC/unit average at 25℃.
Self-discharge: self-discharge rate less than 2% per month at 25 C.
Please charge batteries before using.
Terminal: thread insert and bolt (F10-M8).
Container material: A.B.S. UL94-HB, UL94-V0 optional.
Rectangular shape.
White, blue and red terminals on top.
Electrical data displayed on the surface.
Ideal for solar power applications.
Valve regulated lead acid battery series that adopts immobilized gel and tubular plate technology to offer high reliability and performance.
Battery is designed and manufactured according to DIN standards and with die-casting positive grid and patent formula of active material.
Exceeds DIN standard values with more than 20 years floating design life at 25℃ and is even more suitable for cyclic use under extreme operating conditions.
Place of produce: Shenzhen, China.
Weight: 92kg.
