UPS Inverter 1000W-Pure Sine Wave Inverter-UPS 1KW
生產所需時間:
3 - 10 日
產品型號:
ZUPS-1000W
品牌名稱:
Meind
顏色:
Gold
尺寸:
300*190*71MM
港口:
Shenzhen,China
付款方式:
T/T
最低訂購數量:
10pcs
是否可訂造:
是
重量:
5.5
輸出電壓:
AC220V/AC110V
輸入電壓:
DC12V/DC24V
輸出頻率:
50Hz/60Hz
輸出功率:
>1000 千瓦
輸出電流:
4.5A/9.0A
輸出類型:
單
原產地:
中國內地
是否有包裝:
無
描述
聯絡供應商
描述

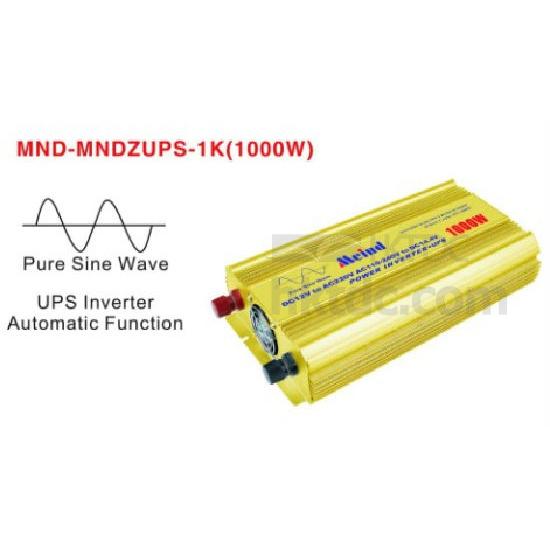

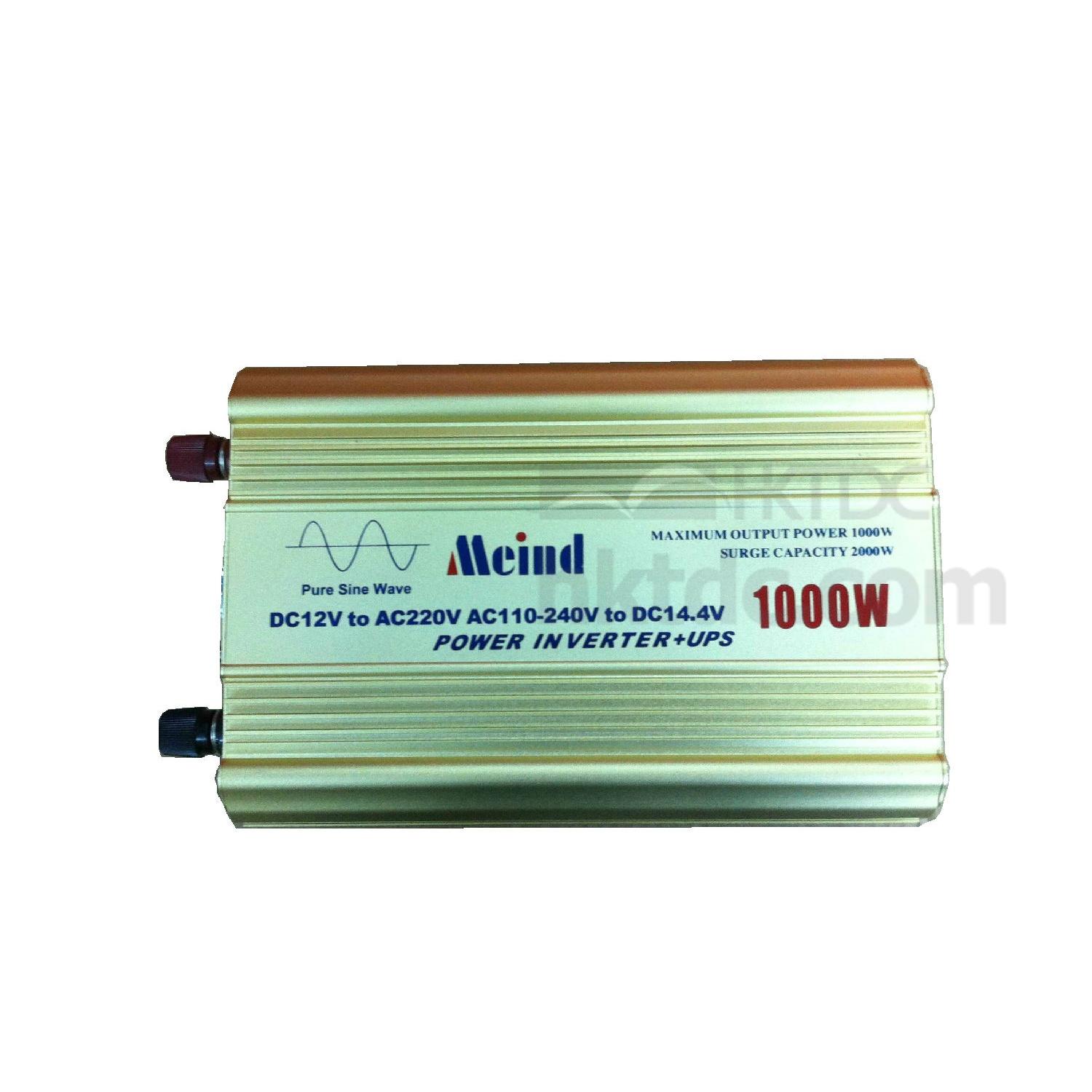

UPS Inverter 1000W + Pure Sine Wave Inverter + Built in Battery Charger
MNDZ-UPS1000W
Meind UPS Function/Auto-switch: when main power is off, inverter will auto-switch on and converter battery power to AC220V, when main power is on, inverter will auto change to Charger function, charging battery. After battery full, inverter stop working and stand-by.
Specifications：
1)Input Voltage：DC12V（10—15V）,DC24V(18-28V)
2)Output Voltage：AC220V（AC100V,AC110V，AC120V，AC240V）
5) Output Wave form：Pure Sine Wave
6)Frequency output：50Hz,(60Hz) ±4%
7)Availability Power： ≥90.5%
8) LOW Voltage Range： ＜DC9.6V /DC18.5V
9) High Voltage Range： ＞DC14.8V/DC28.5
10) No Load current： ≤0.4A
11) Soft-Switch Function: Yes
12) Short-Circuit Protection: Yes
13) Reverse Protection: Yes ( +/ - )
14) Over-Load Protection: ＞1000W
15) High-Temperature Protection: ＞75℃ will turn off, and re-boot ＜ 45℃
16) High-Voltage Protection: DC16V±1V
17) Low-Voltage Protection: DC10.5V±0.5V
18) Auto Reboot Function: Yes
19) Fuse: Built-In 4X30A
20) Cooling Fan: Yes( Automatic: when temperature＞48℃, will auto-start to cooling, and after ＜40℃ will off)
21) USB port output current：No USB Port.
22) Charging Function: Yes (Charging Specification: Constant voltage and trickle current charge when the battery voltage≤14.4V, after ≥13.8V floating charge.）
23) Input when Charging: AC 110V-240V
24) Output of Charging: DC 14.4V
25) Charging Current: about 10A
26) The Inverter will alarm and cut off when the battery is full of power。
27）Size：260*190*71MM
28) UPS Function: when main power is off, inverter will auto-switch on and converter battery power to AC220V, when main power is on, inverter will auto change to charging, to charge battery.
Firstly, connect battery (12V inverter need 12V battery, 24V inverter need 24V battery) to inverter correctly—Battery “+” to inverter“+”， battery “-”to inverter“-” ；this inverter have reverse protection.
Then，please connect AC cable to inverter’s AC Input Port from your city Power outlet.
Thirdly, connect your appliance or device to inverter’s AC Output Socket.
At last, put “Main Switch” in “ON”, now all system set up and working. Please make sure the switch is “ON”, if “OFF” Inveter will not UPS and automatic.
MNDZ-UPS1000W
Meind UPS Function/Auto-switch: when main power is off, inverter will auto-switch on and converter battery power to AC220V, when main power is on, inverter will auto change to Charger function, charging battery. After battery full, inverter stop working and stand-by.
Specifications：
1)Input Voltage：DC12V（10—15V）,DC24V(18-28V)
2)Output Voltage：AC220V（AC100V,AC110V，AC120V，AC240V）
3) Continuous Power output: 1000W
4)Surge Power Capacity：2000W5) Output Wave form：Pure Sine Wave
6)Frequency output：50Hz,(60Hz) ±4%
7)Availability Power： ≥90.5%
8) LOW Voltage Range： ＜DC9.6V /DC18.5V
9) High Voltage Range： ＞DC14.8V/DC28.5
10) No Load current： ≤0.4A
11) Soft-Switch Function: Yes
12) Short-Circuit Protection: Yes
13) Reverse Protection: Yes ( +/ - )
14) Over-Load Protection: ＞1000W
15) High-Temperature Protection: ＞75℃ will turn off, and re-boot ＜ 45℃
16) High-Voltage Protection: DC16V±1V
17) Low-Voltage Protection: DC10.5V±0.5V
18) Auto Reboot Function: Yes
19) Fuse: Built-In 4X30A
20) Cooling Fan: Yes( Automatic: when temperature＞48℃, will auto-start to cooling, and after ＜40℃ will off)
21) USB port output current：No USB Port.
22) Charging Function: Yes (Charging Specification: Constant voltage and trickle current charge when the battery voltage≤14.4V, after ≥13.8V floating charge.）
23) Input when Charging: AC 110V-240V
24) Output of Charging: DC 14.4V
25) Charging Current: about 10A
26) The Inverter will alarm and cut off when the battery is full of power。
27）Size：260*190*71MM
28) UPS Function: when main power is off, inverter will auto-switch on and converter battery power to AC220V, when main power is on, inverter will auto change to charging, to charge battery.
Firstly, connect battery (12V inverter need 12V battery, 24V inverter need 24V battery) to inverter correctly—Battery “+” to inverter“+”， battery “-”to inverter“-” ；this inverter have reverse protection.
Then，please connect AC cable to inverter’s AC Input Port from your city Power outlet.
Thirdly, connect your appliance or device to inverter’s AC Output Socket.
At last, put “Main Switch” in “ON”, now all system set up and working. Please make sure the switch is “ON”, if “OFF” Inveter will not UPS and automatic.
