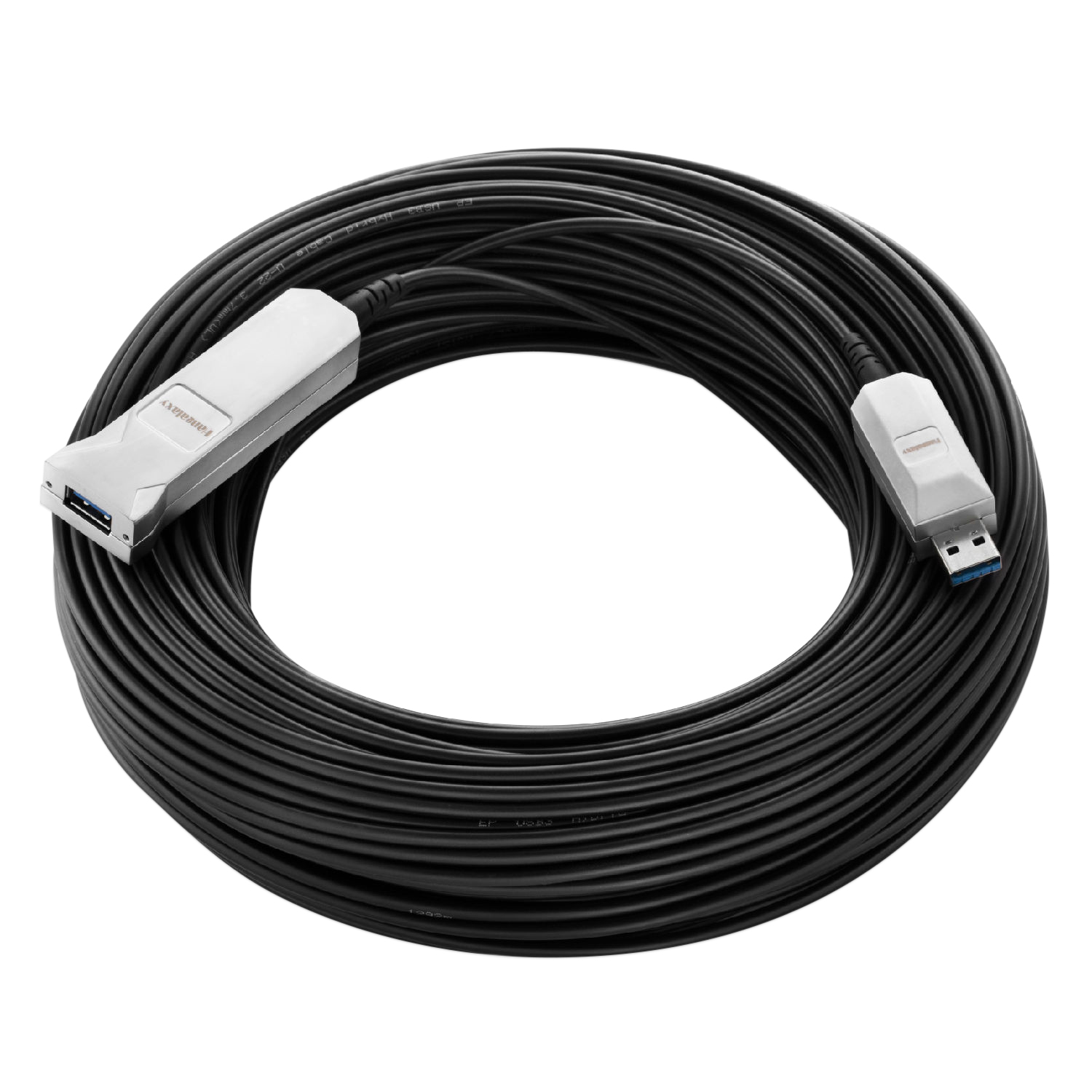

Type: USB3.0 host port standard type A male head, USB3.0 devices port standard type A female seat (with locking screw hole)
Speed: The maximum transition speed can be up to 5Gbps
Host Side (Device Side Supply Current): USB bus power supply, maximum 5V900mA (10m/20m/30m) / 600mA (50m) (Need to connect auxiliary power supply to the host side)
Power Consumption: 940mW
Dimension of The End: Host head 44mm/27mm/13mm, device side 82mm/26mm/14.5mm
Catalog: 15m/20m/25m/30m/35m/40m/45m/50m
Product Features:
Using active hybrid fiber line, integrated copper cable to supply power supply to the equipment. When the power supply of A type head is insufficient, the power supply capacity can be increased by micro USB B head
Plug and play without driver dependent. No external power needed. Highly resistant with EMI and RFI
Backward compatible with USB2.0 / 1.1 device. Greatly improve the bandwidth of USB2.0 devices
