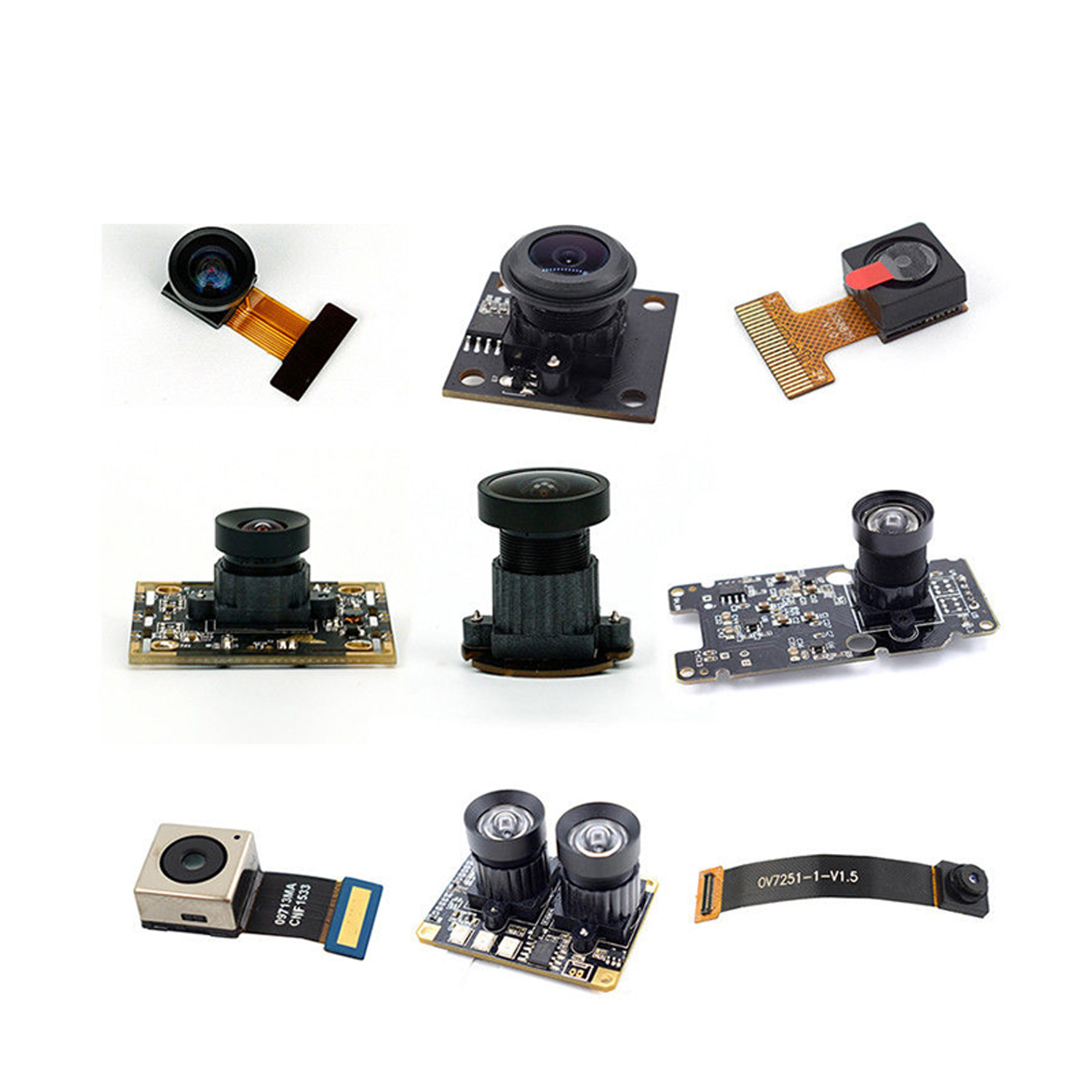

USB MIPI DVP OEM Camera Modules Customizable Vision Solution
美元 $15.00 - 美元 $55.00
生產所需時間:
7 日
運送方式:
DHL/FedEx
是否可訂造:
可以
型號編號:
SNS-OEM
解析度:
1280×720
尺寸:
Customizable
描述
聯絡供應商
描述
OEM Camera Modules Customization Process：
Your Idea--Confirm the deails--Establish project--R&D--Sample modification--Confirm the final sample--Mass production--Shipping
Model No | SNS-OEM |
Sensor | Omnivision/SONY/ON Semiconductor/GalaxyCore... |
Pixel | 0.3MP 1MP 2MP 3MP 4MP 5MP 8MP 13MP 16MP or Above |
Compression format | MJPG / YUY2/H264 |
Resolution & Frame rate | Optional |
Shutter Type | Electronic rolling shutter/Global shutter |
Focus type | Fixed focus/Auto focus |
S/N ratio | TBDdB |
Dynamic range | TBDdB |
Sensitivity | Optional |
Interface type | USB2.0/3.0 MIPI DVP |
Adjustable parameter | Brightness/Contrast/Color saturation/Hue/Definition/ |
Lens FOV | Optional |
Audio frequency | Support |
Power supply | USB BUS POWER |
Power consumption | DC 5V, 100mA |
Main chip | DSP/SENSOR/FLASH |
Auto Exposure Control (AEC) | Support |
Auto White Balance (AEB) | Support |
Auto Gain Control (AGC) | Support |
Dimension | Customizable |
Storage temperature | -20°C to 70°C |
Operating temperature | 0°C to 60°C |
USB cable length | Default |
Support OS | WinXP/Vista/Win7/Win8/Win10 |
According to the actual application scene and functional target, the camera module needs to comprehensively consider the product structure size, image definition, frame rate, lens angle, lighting scene and other factors to choose the appropriate SENSOR,lens and solution. Need to be customized.These product is only for customer testing DEMO, please contact our customer service to inform you which product you want the camera module to be used on? What functions are implemented? Any special requirements? According to the cost target and other comprehensive Factors, we help you choose the appropriate SENSER+lens scheme, and then design the product PCB or FPC according to the structural requirements.
