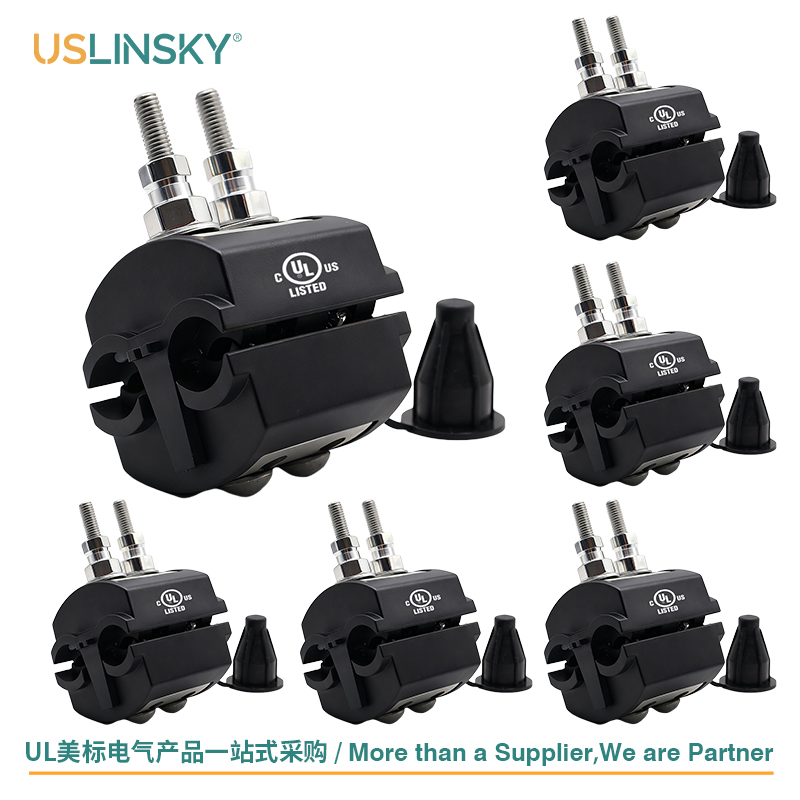

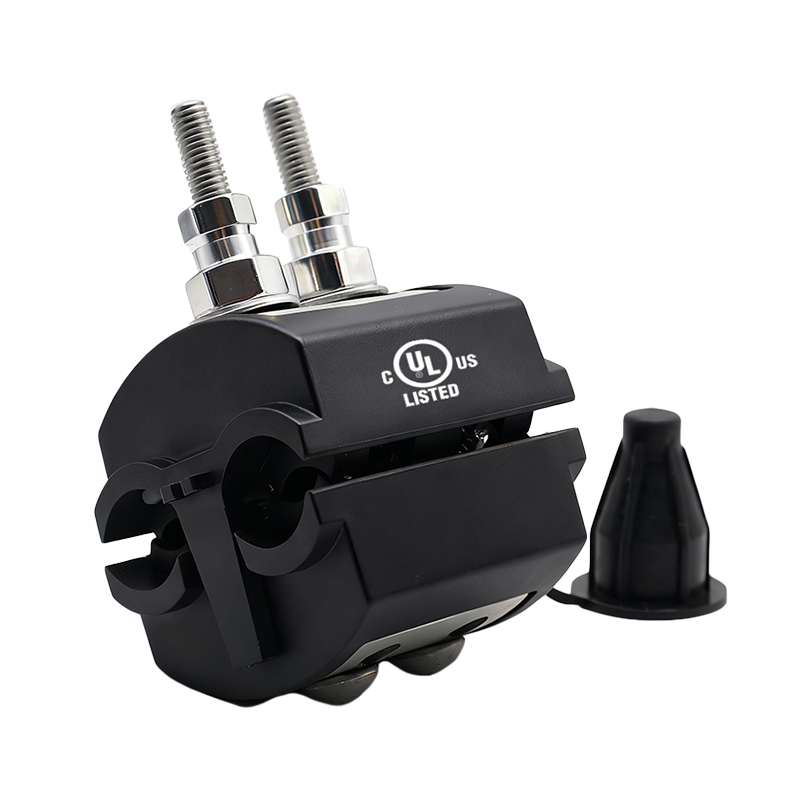

USLINSKY Insulation Piercing Connectors (LIPC Series)

Product Overview

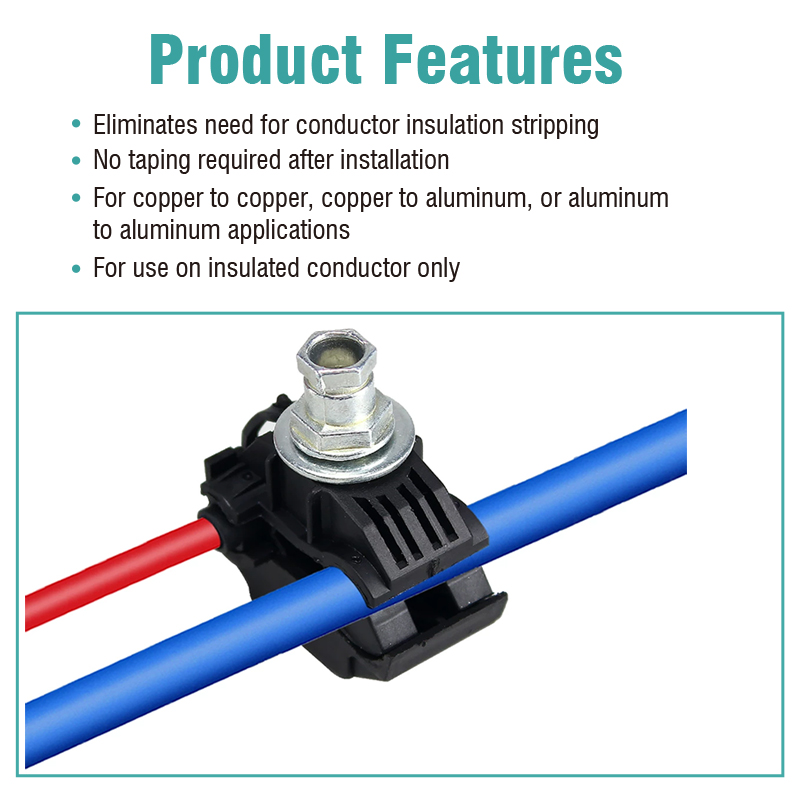

Compliant with EN50483 standard and UL Listed (E485202), these insulation piercing connectors are designed for overhead power lines, eliminating the need for conductor insulation stripping and taping after installation. Suitable for copper to copper, copper to aluminum, or aluminum to aluminum applications.

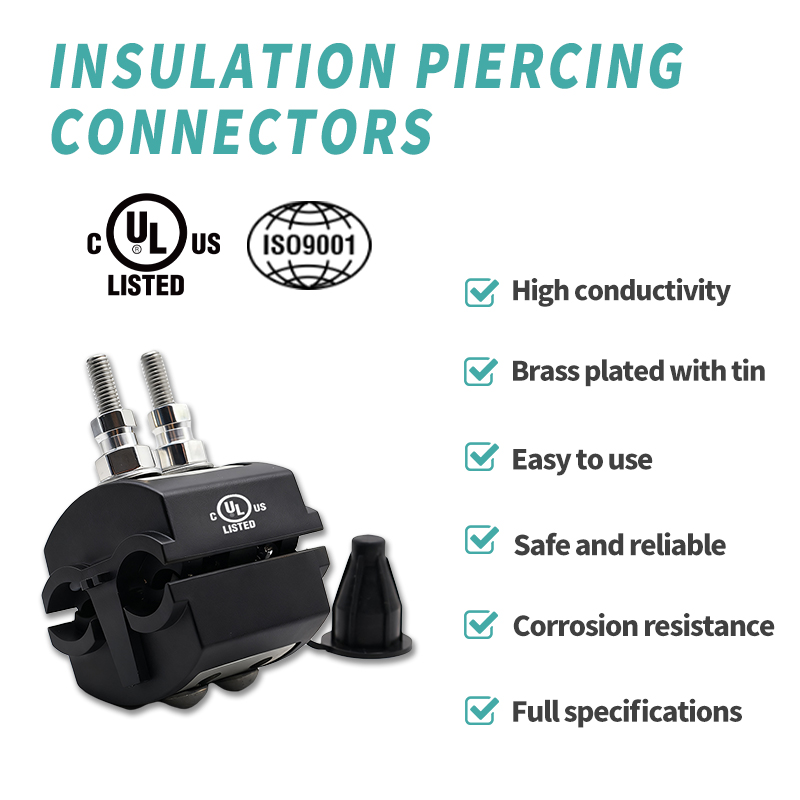

Key Features & Benefits

- No insulation stripping or taping required, simplifying installation

- Compatible with Cu/Cu, Cu/Al, and Al/Al insulated conductors

- Strong PA66 UV-protected plastic cover, tested to withstand 1.5 times torque force

- High hardness Al alloy or Cu teeth with tin plating for reliable conductivity

- Stable shear head force (±2Nm) and durable nut/bolt threads to prevent breakage

- Corrosion-resistant hot dip/dacromet/chroming galvanized metal parts

- Waterproof design (some models suitable for underwater use with 6kV withstand voltage)

- Disposable puncture clip, not reusable for safety

Technical Specifications

- Voltage Rating: 600V

- Certification: UL Listed (E485202), EN50483 compliant

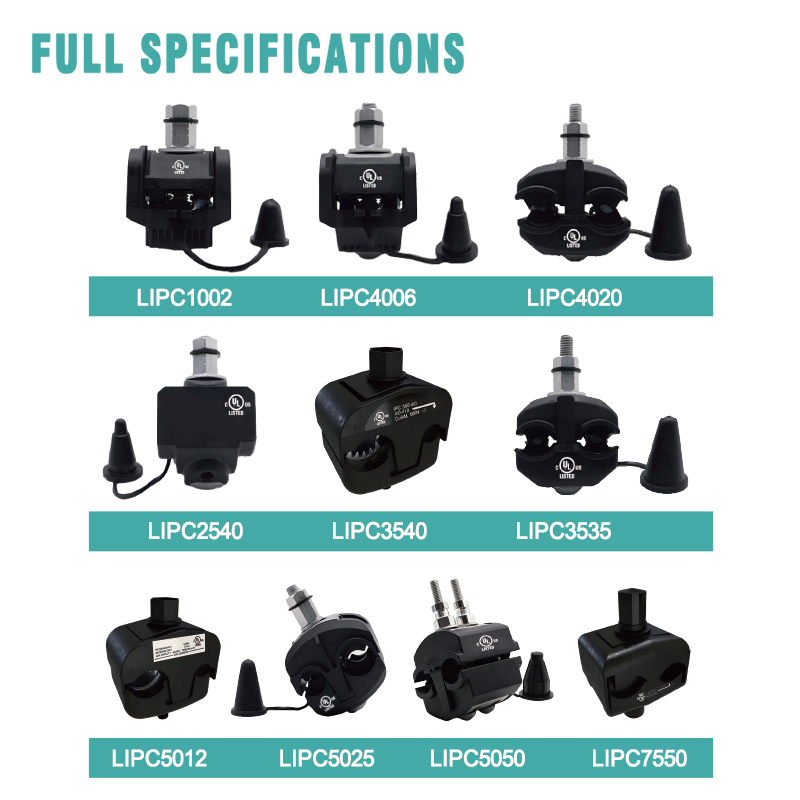

- Models: LIPC1002, LIPC4006, LIPC4020, LIPC2540, LIPC3535, LIPC5025, LIPC5050

- Wire Range: Model-dependent (e.g., LIPC1002: Main 1/0-6, Tap 2-8; LIPC2540: Main 250-1, Tap 4/0-6)

- Torque: 16-75 FT-LBS (model dependent)

- Bolts: 1-2 pcs (model dependent)

Application

For use on insulated conductors only, ideal for overhead power lines, distribution networks, and branch connection scenarios.
