Key Model Specifications

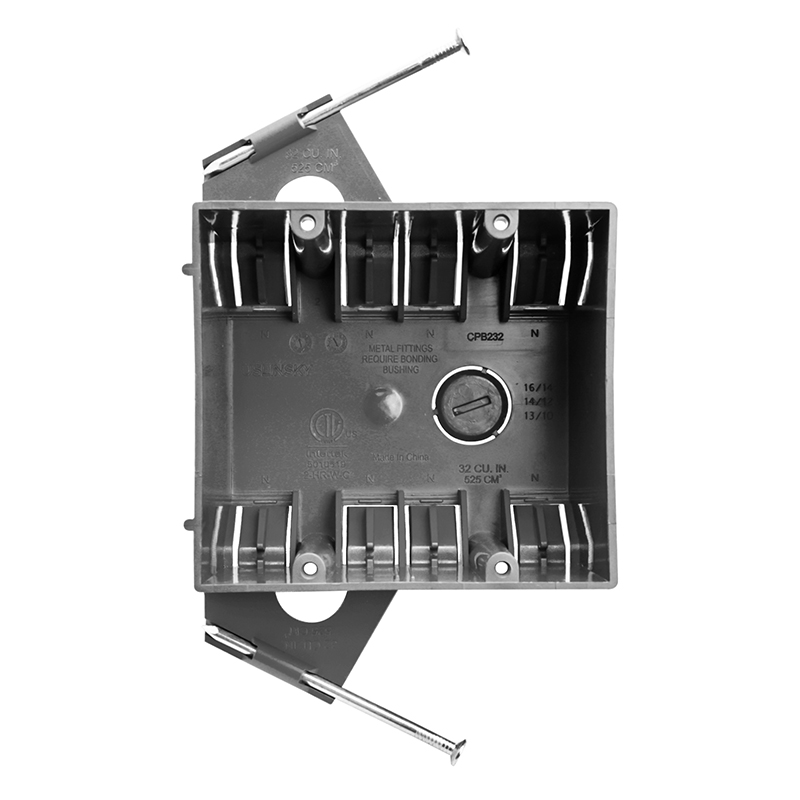

• CPB232: 2-Gang, 32 cu in capacity, 8 integral clamps, product size 4" × 3-3/4" × 3", outer box size 52.5 × 32.5 × 39.5 cm, 50 pcs per carton
• CPB344: 3-Gang, 44 cu in capacity, 12 integral clamps, product size 5-5/8" × 3-3/4" × 2-3/4", outer box size 50.5 × 37.5 × 31.5 cm, 30 pcs per carton
• CPB455: 4-Gang, 55 cu in capacity, 16 integral clamps, product size 7-3/5" × 3-3/4" × 2-3/4", outer box size 50.5 × 46.5 × 31.5 cm, 30 pcs per carton

Core Features & Benefits

• Non-metallic Plastic Construction: Lightweight, corrosion-resistant, and non-conductive, eliminating the risk of electrical shock and simplifying on-site handling.
• Captive Nail Mounting: Pre-attached mounting nails enable fast, secure installation to wooden studs, reducing labor time and material waste.
• Integral Cable Clamps: Built-in clamps securely hold non-metallic sheathed cable, eliminating the need for separate hardware and ensuring compliance with electrical code requirements.
• 2-Hour Fire Rating: ETL-listed for 2-hour fire resistance, providing critical fire safety performance for wall and ceiling installations.
• Versatile Application: Ideal for new residential construction, light commercial projects, and interior renovations, supporting standard 2, 3, and 4-gang wiring configurations.
• Customization Options: Available in a range of custom colors to match wall finishes and design specifications.
