UTP Cat6 4 Pairs Lan Cable
生產所需時間:
30 日
產品型號:
UTP CAT6 LAN CABLE
顏色:
Grey, Blue, White
尺寸:
305m/box
是否有包裝:
有
是否可訂造:
是
絕緣材質:
PE
描述
聯絡供應商
描述

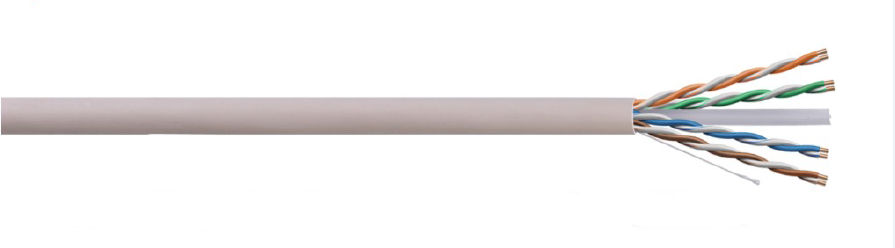

- UTP CAT6 unshielded 4 twisted pairs Lan Cable Construction
- Conductor: solid bare copper 23AWG
- Insulation: HDPE
- Number of insulated conductors: 8, twisted in 4 pairs
- Color code: White-Blue/Blue, White-Orange/Orange White-Green/Green, White-Brown/Brown
- Shield: none
- Drain wire: none -outer sheath: PVC, CMX, CM, CMR, LSZH, LDPE, OD: 6.4±0.2mm Application
- Meets or exceeds requirements of ANSl/TIA-568-C.2 Category 6 and ISO 11801 2nd Edition Class E channel standards
- Meets or exceeds requirements of ANSl/TIA-568-C.2 and IEC 61156-5 Category 6 component standards
- Meets requirements of IEEE 802.3af and IEEE 802.3at for PoE applications
- Third party tested to comply with ANSI/TIA/EIA-568-C.2.
- Electrical Characteristics - Impedance: 1-250MHz 100±15 (Ohms)
- Rated Temperature: 75 degree
- DC Resistance Unbalance(%): Max 2.5
- DC Resistance 20 degree: 8.4(Ohms/100m)
- Pair-to-Ground Capacitance Unbalance: 330(pF/100M)
- Insulation Resistance: 5000MΩ x Km
- Dielectric strength: DC 2500V 2S
