VC108PV Solar MPPT Meter for PV Panel Tests | 光學設備

SHENZHEN VICIMETER TECHNOLOGY CO.,LTD.

VC108PV Solar MPPT Meter for PV Panel Tests

應用:

Suitable for photovoltaic panels rated 5~800W, 12~60V, ideal for small solar panels and mini PV arrays.

型號編號:

VC108PV

特性:

Portable, solar pannel powered

尺寸:

142mm x 76mm x 22mm

材料:

ABS, electronic components

重量:

154g

Main funtions:

max power (Pmax), peak power woltage (Vmp), peak power current (lmp), open-circuit voltage (Voc) and short-circuit current (lsc).

品牌:

Vici

描述

聯絡供應商

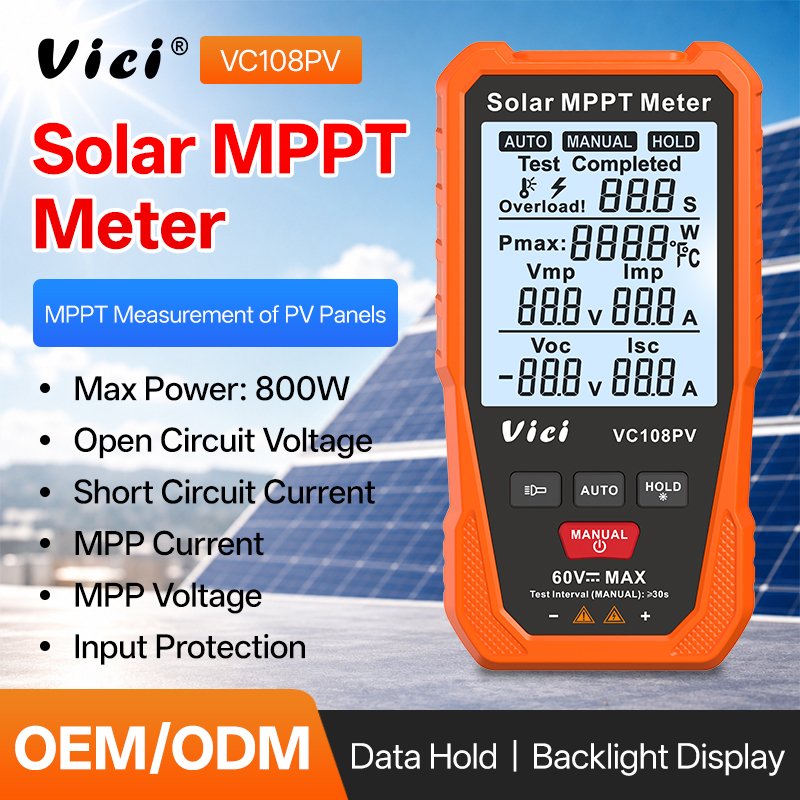

VC108PV Solar MPPT Meter

The C4 Connector wench for quick, effortless testing in the field.
Multi-mode power supply (Type-C DC 5V or AAA 1.5V battey).
Measures max power (Pmax), peak power woltage (Vmp), peak power current (lmp), open-circuit voltage (Voc) and short-circuit current (lsc).

Technical Data:

General Characteristic:

Model	VC108PV
Measure way	Auto/Manual range
Reverse polarity connect protection	√
Over voltage protection	√
Over current protection	√
Over temperature protection	√
Over power protection	√
Manual MPPT test	√
Data hold	√
Torch Function	√
Backlight display	√
Sound Alarm	√
LCD display size	50×65mm
Power supply	TYPE‑C (5V) \| 1.5V AAA battery
Category	CAT.I 60V
