VC4060C Digital Motor Checker for DC milliohm Insulation Inductance Testing
美元 $67.80 - 美元 $128.20
Safety level:
CAT. III 600V
Max display:
6000
DC Resistance:
0.1mΩ~200Ω
Inductance:
0.01mH~99.99H
Insulation test:
500MΩ/500V, 6000MΩ/1000V
應用:
New energy
型號編號:
VC4060C
尺寸:
200*92*50mm
描述
聯絡供應商
描述

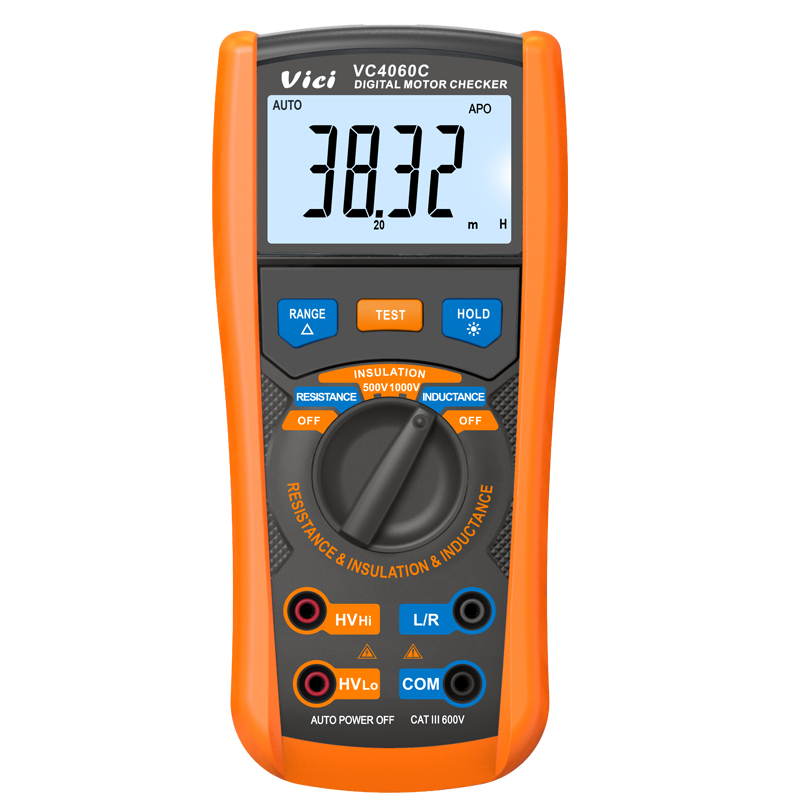

VC4060C Digital Motor Checker
Features:
- Comprehensive Testing:
- 3 in 1: Insulation resistance(IR), milliohm resistance and inductance;
- Efficient and Durable:
*Data hold, backlight, low voltage indication, auto power off;
*Simple operation, rapid status evaluation, and a shockproof rubber body.
- Application Areas:
- New energy vehicle repair, electrical installation, equipment maintenance,
- electronic manufacturing, power equipment installation, research, etc.
- Non-destructive Fault Detection:
- Detect rotor coil winding issues without disassembling the motor.
- *Identify open/short circuits and poor contact in winding coils.
- *Detect inductance differences caused by loose or broken rotor coils.
- *Test insulation between motor coil windings, between windings and motor casing.
Basic function | Range | Basic accuracy |
Resistance | 200mΩ/2Ω/20Ω/200Ω | ±(3.0%+10) |
Inductance | 6mH/60mH/600mH/6H/99.99H | ±(1.5%+5) |
Insulation | 500MΩ for 500V, 6000MΩ for 1000V | ±(4.0%+2) |
Special function:
Model | VC4060C |
Max. display | 2000 |
Data hold | √ |
Backlight display | √ |
Operation method | Manual/Auto range |
Auto power off | Approx.15minutes |
Low battery indication | Approx. less than 7.6V |
Sampling rate | 3times/s |
LCD size | 65×40mm |
Power supply | 9V (6x1.5V AA) |
Power dissipation | Quiescent current approx. 6mA |
Safety level | CAT. III 600V |
General Info:
Color | Orange holster and Grey device |
Weight | 480g (including battery) |
Meter size | 200x92x50mm |
Standard accessory | Test leads, battery, manual, handbag |
Packing | Gift box |
Quantity per carton | 20pcs |
