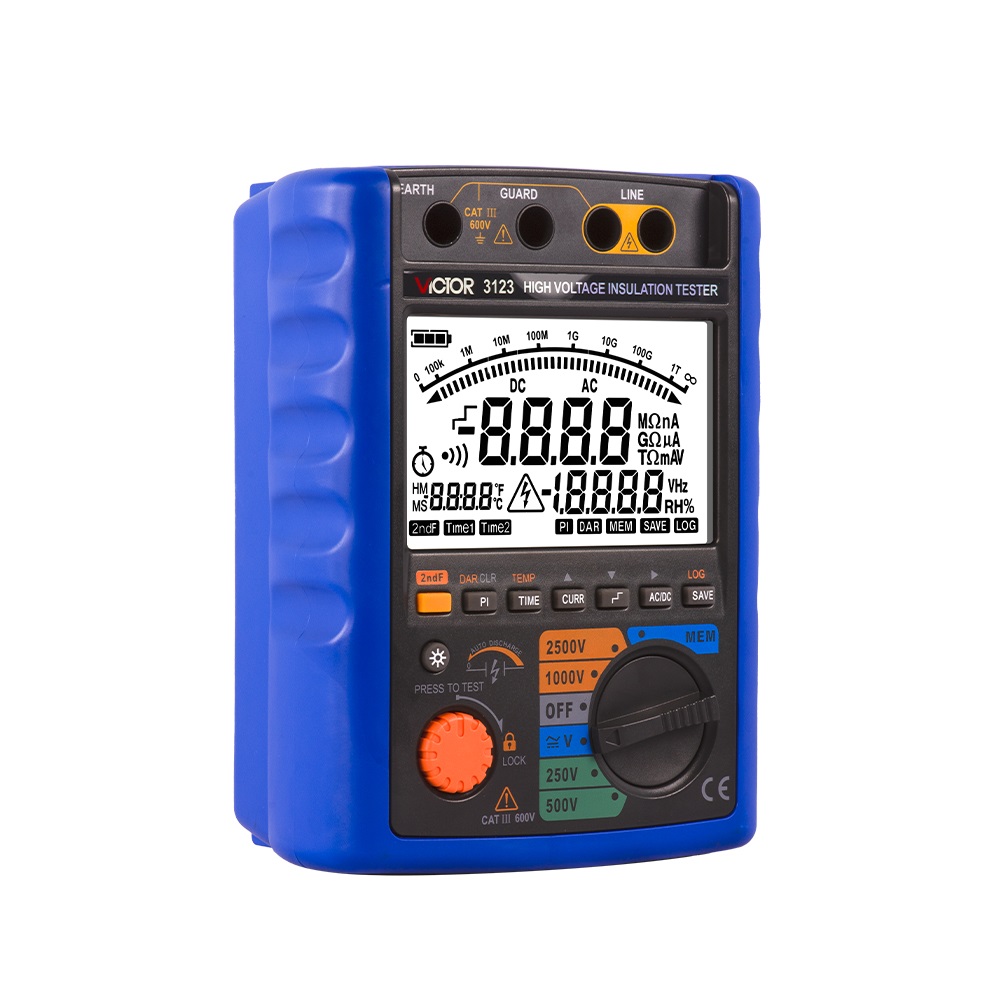

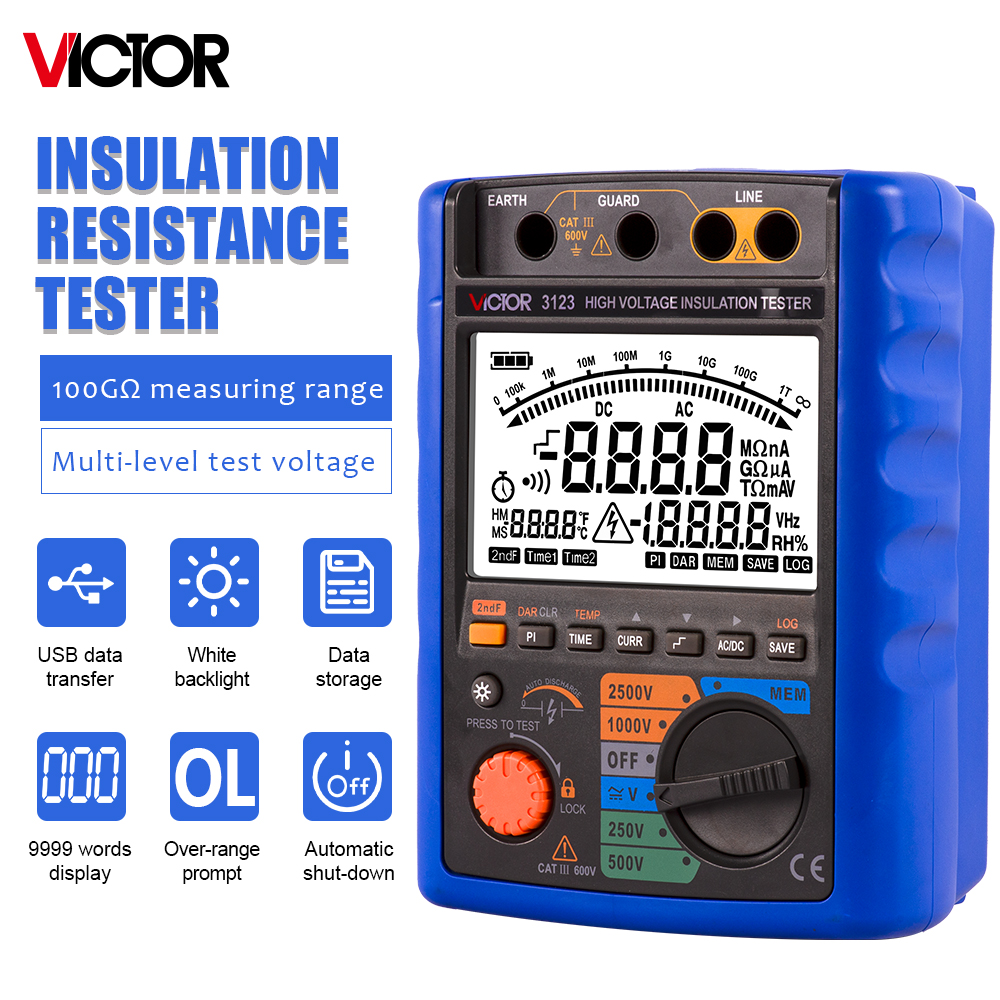

VICTOR 3123 Hight Voltage Digital Insulation Rresistance tester
分享此頁面
美元 $375.25 - 美元 $399.00
美元 $395.00 - 美元 $420.00
生產所需時間:
40 日
運送方式:
EXW
品牌:
VICTOR
型號編號:
3123
應用:

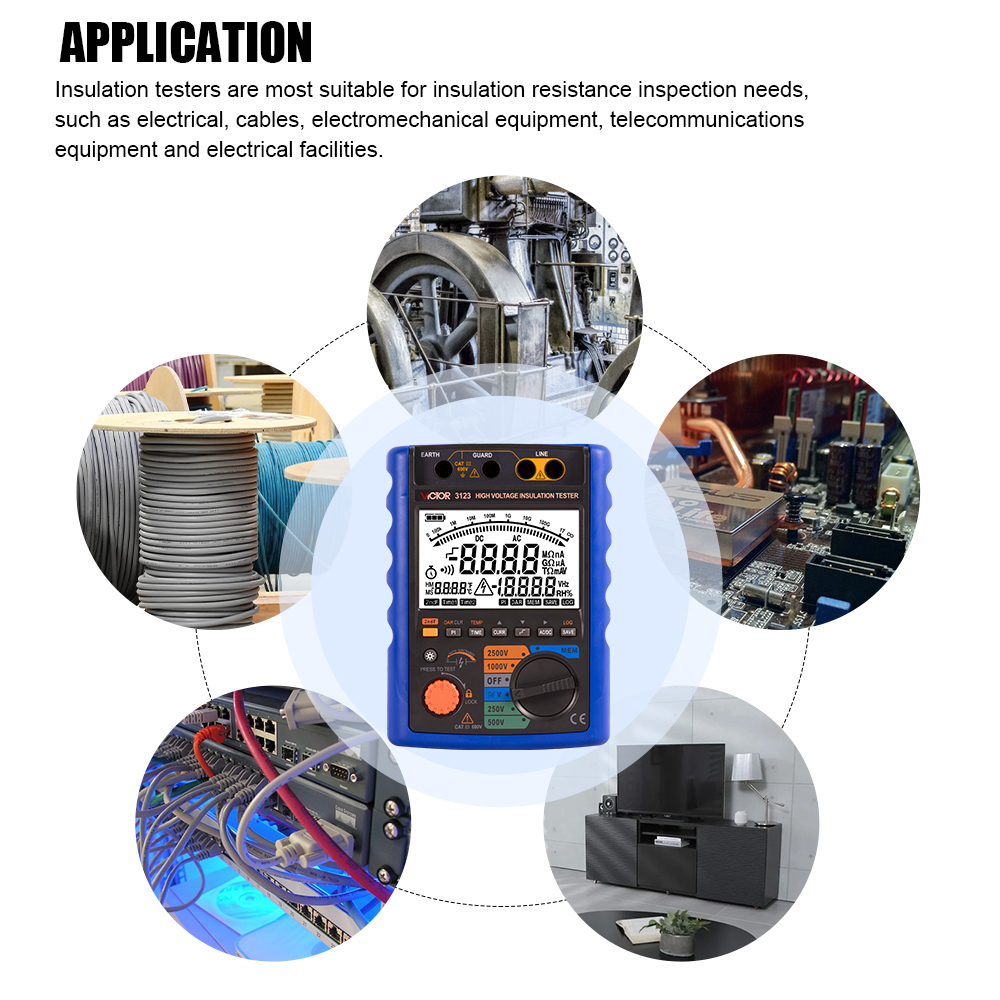

Insulation Resistance Tester
LINE::
High-voltage Terminal
Leakage current test Current range: :
3000uA
Rated Current: :
1mA~1.2mA
USB Interface cable::
Include
Open circuit Voltage::
DC 2500V
Accuracy: :
±5%rdg ± 3% dgt
描述
聯絡供應商

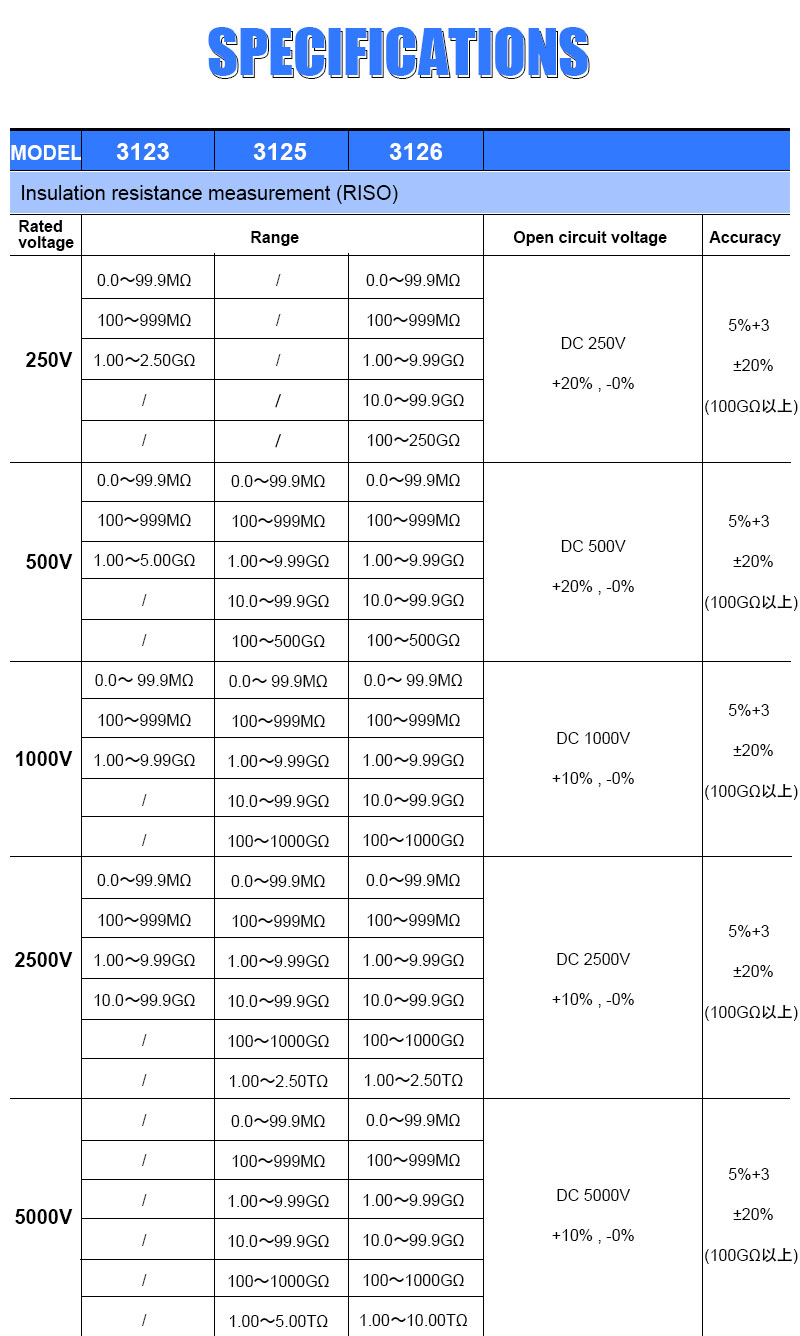

描述
2500V-type

5000V-type

Rated voltage
250V
500V
1000V
2500V
5000V
Measuring
Range
0.0~99.9MΩ
100~999MΩ
1.00~2.50GΩ
0.0~99.9MΩ
100~999MΩ
1.00~5.00GΩ
0.0~ 99.9MΩ
100~999MΩ
1.00~9.99GΩ
0.0~99.9MΩ
100~999MΩ
1.00~9.99GΩ
10.0~99.9GΩ
0.0~99.9MΩ
100~999MΩ
1.00~9.99GΩ
10.0~99.9GΩ
100~999GΩ
1.00~1.20TΩ
Open circuit
Voltage
DC 250V
+ 20% ,-0%
DC 500V
+ 20% ,-0%
DC 1000V
+ 20%,-0%
DC 2500V
+ 20% ,-0%
DC 5000V
+ 20% ,-0%
Rated
Current
1mA~1.2mA
(at 210KΩ load)
1mA~1.2mA
(at 450KΩ load)
1mA~1.2mA
(at 1MΩ load)
1mA~1.2mA
(at 2.5MΩload)
1mA~1.2mA
(at 5MΩload)
Short-circuit
Current
2500V-type :Approx. 1.3mA
5000V-type :Approx. 3.4mA
Accuracy
±5%rdg ± 3% dgt
100GΩ or more, ±20%rdg

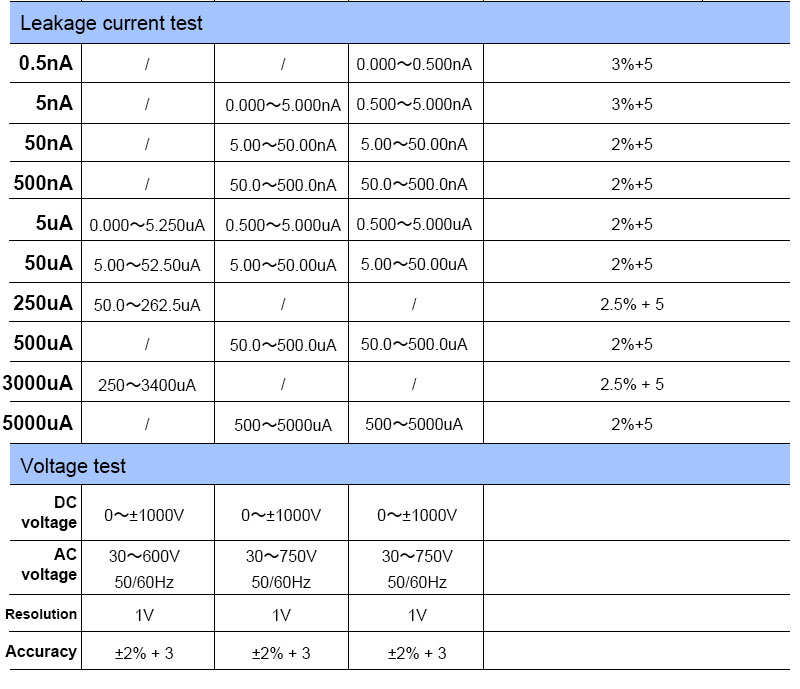

Leakage current test
Current range
Measuring range
Accuracy
5uA
0.000~5.250uA
±10%rdg ± 5% dgt
50uA
5.00~52.50uA
±2.5%rdg ± 5% dgt
250uA
50.0~262.5uA
±2.5%rdg ± 5% dgt
3000uA
250~3400uA
±2.5%rdg ± 5% dgt
l    This instrument has been designed, manufactured according to IEC 61010:2001. Designed to following safety standards:
IEC 61010-1(CAT.III 600V Pollution degree 2)
IEC 61557-1:1997
IEC 61557-2:1997
l    With auto-discharge function

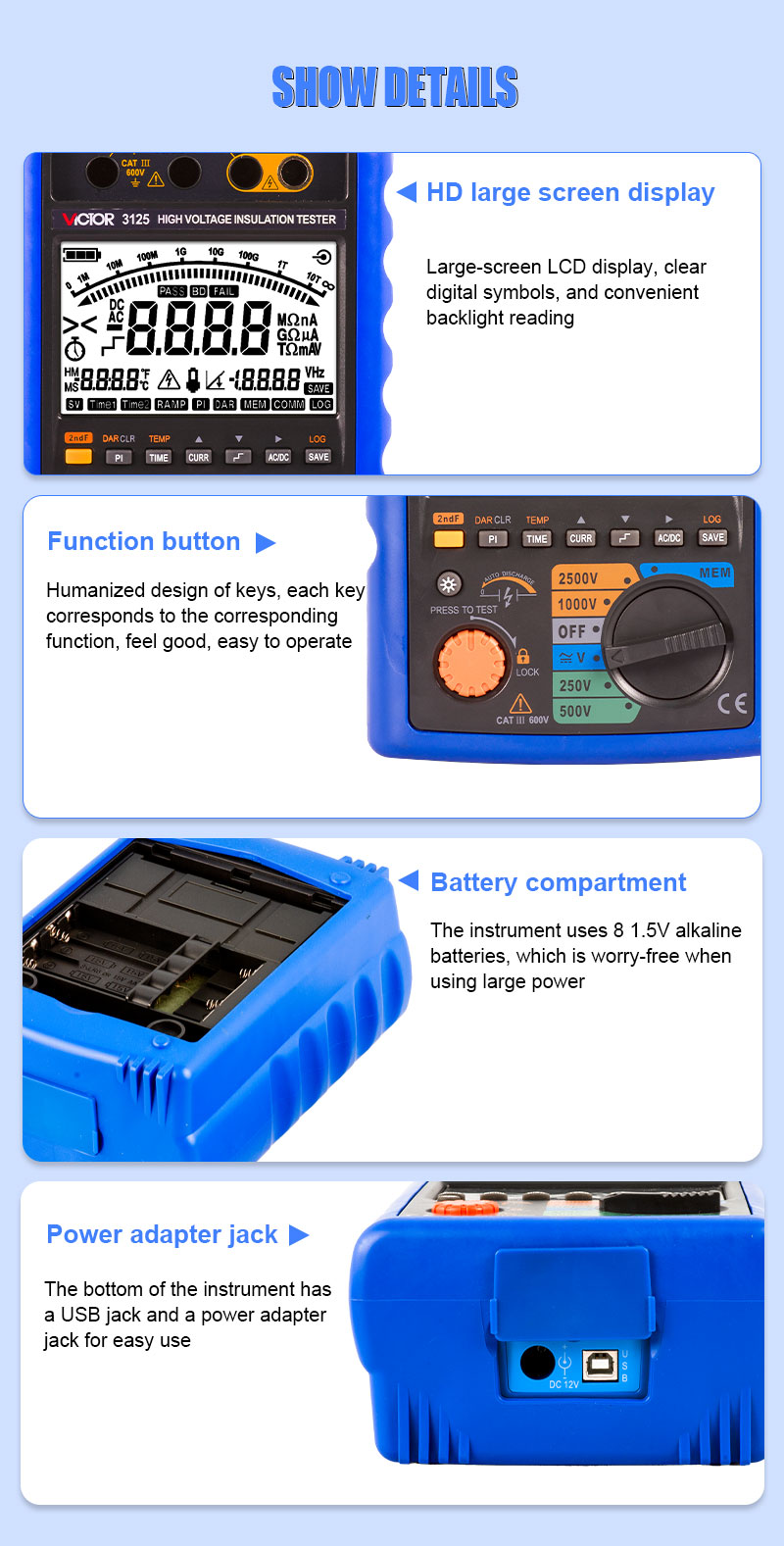

l    USB interface data transmission

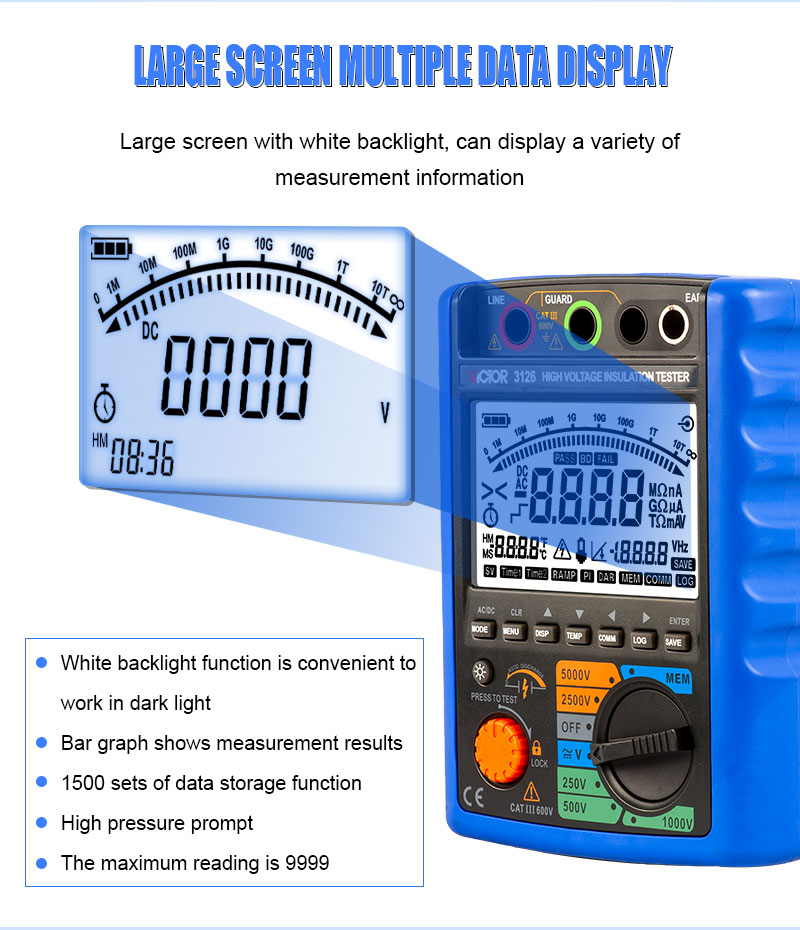

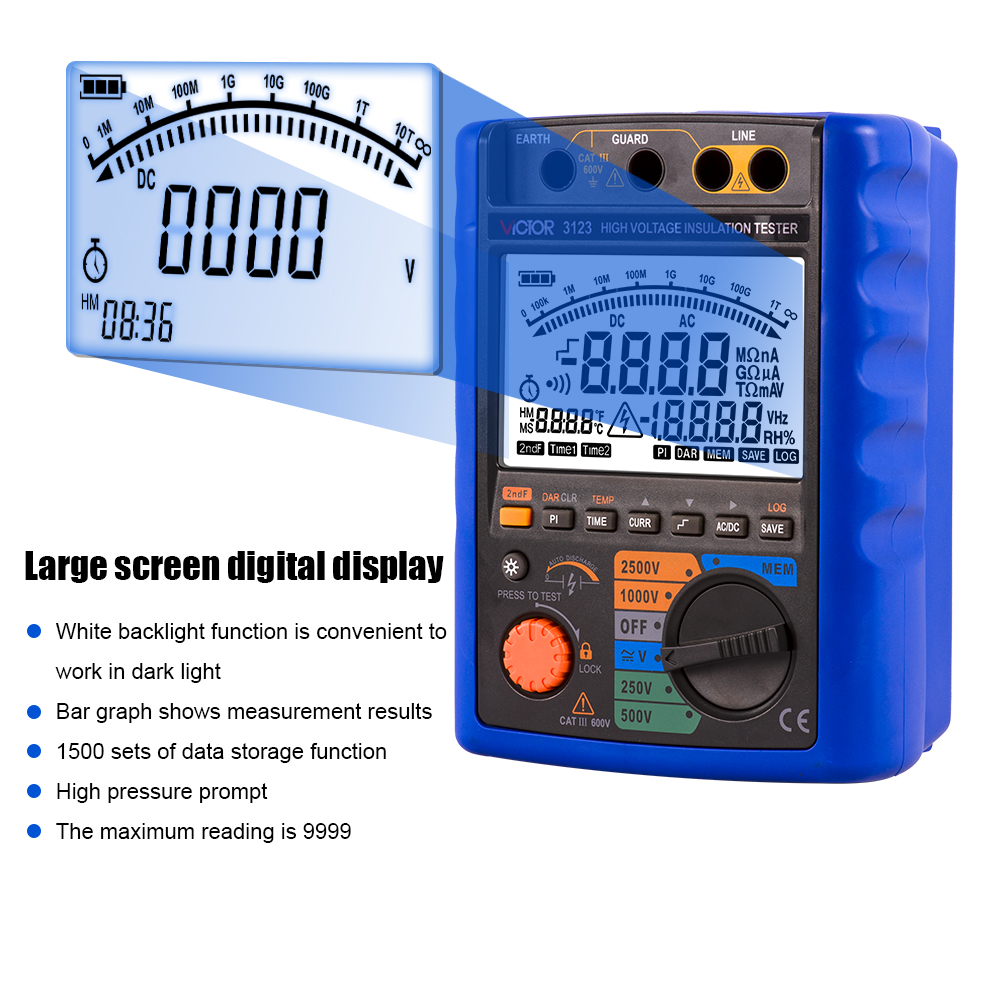

l    White backlight function to facilitate working at dimly illuminated location
l    Bar graph to display measured result
l    With special-purpose power source adapter
l    High-voltage prompt
l    The actual output voltage value is displayed on the second secondary display. At the same time, the measured value of insulation resistance is displayed on primary display.
l    Temperature , 24-hour time and leakage current display
l    With Auto-power off function
The meter will go into automatic power-off mode if you have not changed the rotary switch position
or pressed a button for a set period. Set range 0~60 min. Set zero to cancel auto power-off function.To turn the meter on after automatic power-off of the meter, please set the function range switch to “OFF” position, and then set the function range switch to any position other than “OFF”.
l    Independent of internal memory can store up to 760 (group) measurements. (manual records 260 (group), the operating records 500 (group))
l    With Timer measurement function
Automatically performs a measurement at the set time.
l    With Polarization index measurement
The polarization index can be measured by the automatic measurement function of the ratio of resistance in arbitrary two point time.
l    With Dielectric Absorption Ratio measurement
The Dielectric Absorption Ratio can be measured by the automatic measurement function of the ratio of resistance in arbitrary two point time.
l    With Step Voltage measurement
Raising the voltage at a certain period and measuring the insulation resistance.
Two kinds of voltage rise model:
2500V range:  500V → 1000V → 1500V → 2000V → 2500V
5000V range:  1000V → 2000V → 3000V → 4000V → 5000V
l      Built-in real-time clock can provide accurate time for recording and measuring.
l      Panel calibration technology, no need to open the chassis can be calibrated.
