Vici VC4060B New Energy Vehicle Repair Insulation Inductance Test Multimeter

應用:

new energy vehicle repair, motor cable, electronic equipment, electric power installation, etc.

型號編號:

VC4060B

尺寸:

200*92*50mm

重量:

480g

Safety level:

CAT. III 600V

Max display:

6000 digits

Voltage:

AC 750V, DC 1000V

Current:

AC DC 20A

Capacitance:

60mF

Resistance:

60MΩ

Frequency:

10MHz

Temperature:

1000℃， 1832℉

Insulation:

500V/500MΩ， 1000V/2000MΩ

Inductance:

100H

描述

聯絡供應商

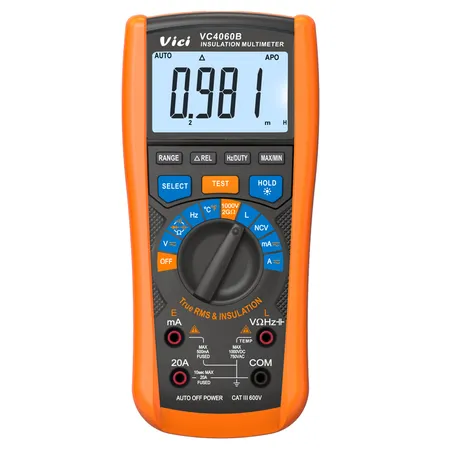

VC4060B Inductance Insulation Multimeter

Features:

1. New type holster, streamlined design, comfortable handle;

2. Large LCD display makes reading clear;

3. Strong antimagnetic and anti-interferential performance, full function protection;

4. Auto power off when there is no measurement in 15 minutes;

5. Unit symbol display, easy to read backlight display; ,

6. Insulation Resistance Test, True RMS, NCV, inductance, frequency/duty cycle, and data hold function.

Special function:

Max. display	6000
Safety level	CAT. III 600V
True RMS	√
NCV	√
Function Protect	√
Diode test	√
Continuity test	Warning sound when less than 50Ω
Duty cycle measuring	√
Data hold	√
Backlight display	√
Max-Min	MAX., MIN. value and difference value between MAX and MIN
Auto power off	Approx.15minutes
Low battery indication	Approx. less than 7.6V
Input impendence	10MΩ
Sampling rate	3times/s
AC frequency response	40Hz-2kHz
Operation way	Manual or auto range
Max. display	6000
LCD size	65×40mm
Power	6x1.5V AA battery
Power dissipation	Quiescent current approx. 6mA

General Info:

Color	Orange holster and Grey device
Weight	480g (including battery)
Meter size	200mm×92mm×50mm
Standard accessory	Test leads, crocodile clips, temperature probes, battery, manual, handbag
Packing	Gift box
Quantity per carton	20pcs
Carton size	46.531.529.0cm
GW per carton	15kg
