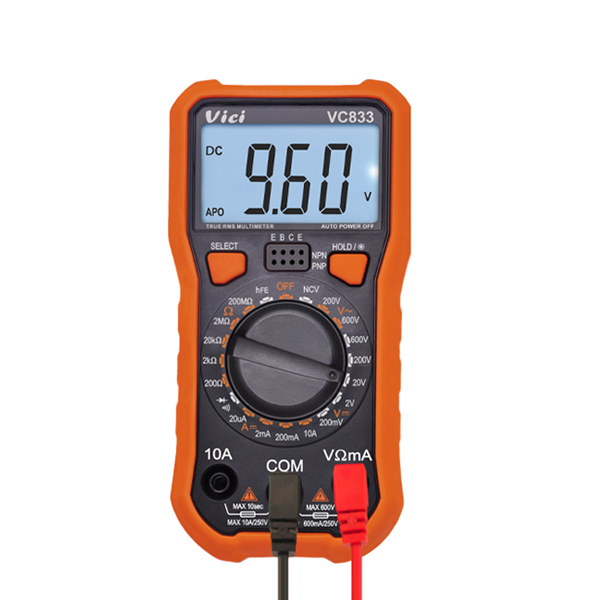

Vicimeter Manual multimeter tester True RMS NCV 2000 Counts VC833 Digital Multimeter.
美元 $5.57 - 美元 $8.80
生產所需時間:
7 日
運送方式:
Express transportation
Mode:
VC833
NCV:
Yes
Data hold:
Yes
True RMS:
Yes
Function protection:
Yes
Backlight display:
Yes
Diode test:
0V~2V, it displays “OL” if over 2V
hFE test:
0~2000
Continuity alarm:
Less than 50Ω, it displays “OL” if over 200Ω
Low battery indicator:
Approx. less than 2.4 V
Auto power off:
About 15 minutes
Input impedance:
10MΩ
Sampling rate:
3 times/s
AC frequency response:
40Hz-2kHz
Operation method:
Manual range
Max. display:
2000
LCD size:
61x28mm
Battery:
3V (1.5V AAA×2)
Power consumption:
Quiescent current about 2mA
描述
聯絡供應商
描述
Vicimeter Manual multimeter tester True RMS NCV 2000 Counts VC833 Digital Multimeter
Features:
1. New type holster, streamlined design, comfortable handle;
2. Large LCD display makes reading clear;
3. Strong antimagnetic and anti-interferential performance;
4. Auto power off when there is no measurement in 15 minutes;
5. Full function protection;
6. Unit symbol display, easy to read;
7. Non-contact voltage detect (NCV) function, data hold;
8. Backlight display.
Technical Data:
Basic function | Range | Basic Accuracy |
DCV | 200mV/2V/20V/200V/600V | ±(0.5%+4) |
ACV | 200V/600V | ±(0.8%+6) |
DCA | 20uA/2mA/200mA/10A | ±(1.0%+5) |
Resistance | 200Ω/2kΩ/20kΩ/2MΩ/200MΩ | ±(0.8%+1) |
Special Function:
Model | VC833 |
NCV | √ |
Data hold | √ |
True RMS | √ |
Function protection | √ |
Backlight display | √ |
Diode test | 0V~2V, it displays “OL” if over 2V |
hFE test | 0~2000 |
Continuity alarm | Less than 50Ω, it displays “OL” if over 200Ω |
Low battery indicator | Approx. less than 2.4 V |
Auto power off | About 15 minutes |
Input impedance | 10MΩ |
Sampling rate | 3 times/s |
AC frequency response | 40Hz-2kHz |
Operation method | Manual range |
Max. display | 2000 |
LCD size | 61x28mm |
Battery | 3V (1.5V AAA×2) |
Power consumption | Quiescent current about 2mA |
