Waterproof Connector | 電線和附件

深圳市科耐斯科技有限公司

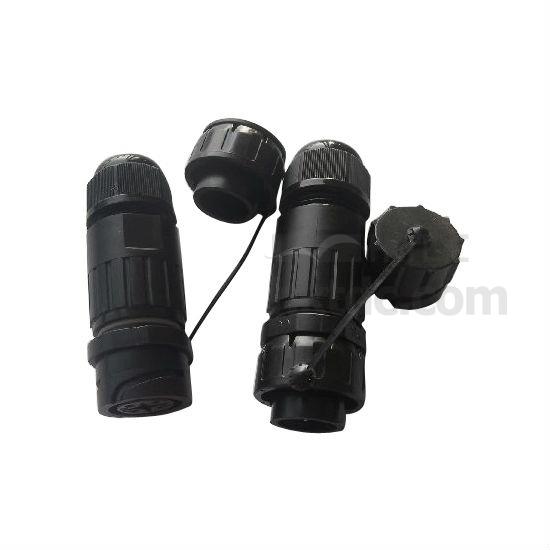

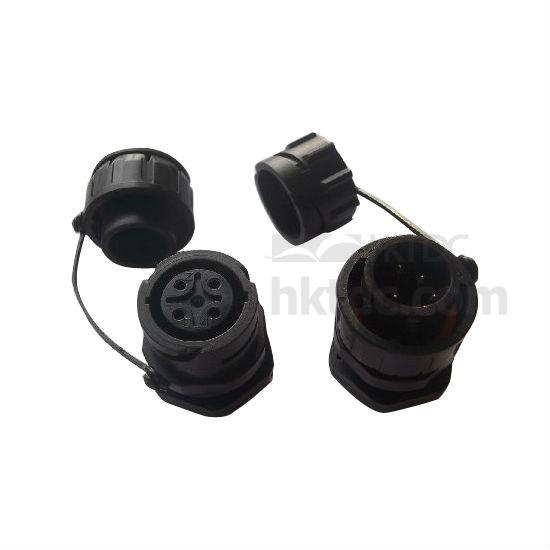

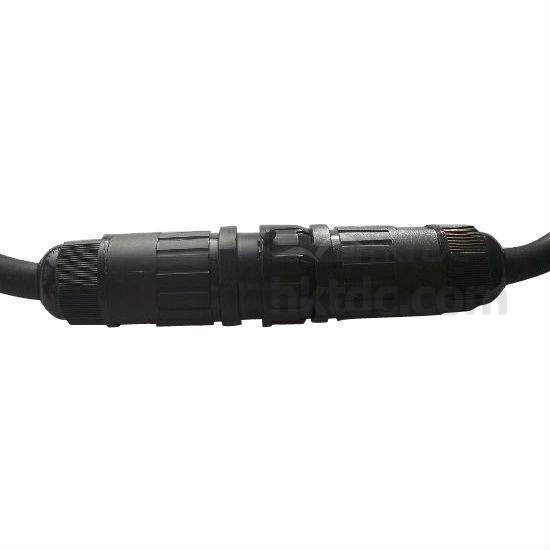

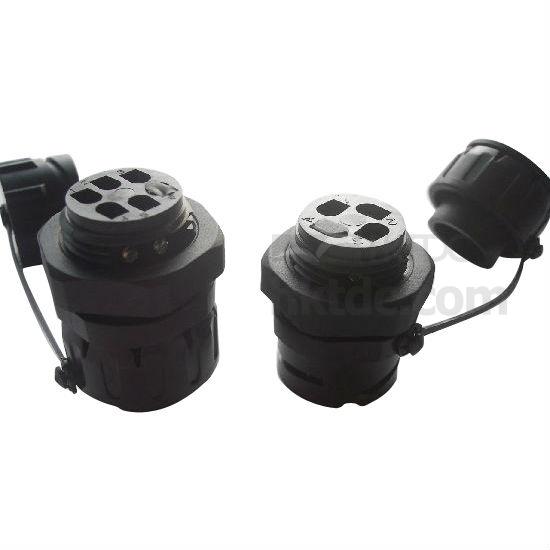

Waterproof Connector

生產所需時間:

7 日

應用:

Power transition

產品型號:

YS1-4P

品牌名稱:

Kolexam

顏色:

Black

尺寸:

27mm x 125mm (Dia. x Length)

港口:

Hong Kong

付款方式:

最低訂購數量:

500 piece(s)

是否有包裝:

有

是否可訂造:

是

種類:

Circular connector

公母:

One set (both plug and receptacle)

描述

聯絡供應商

Material: plastic.
Waterproof connector, LED connector, 4pin.
IP protection: IP68 (4meter/365days).
Rating voltage/current: 400V/16A.
For wire section: ~2.5mm^2.
Revise bayonet coupling.
Both waterproof cap for plug and receptacle on need.
Main features for YS series waterproof connector.
Screw termination, no soldering or special tools needed.
2-6 pins available in arrangement.
Simple installation.
Easy lock and protected against unlock by revise bayonet coupling.
Housings are made by high grade plastic material with the F1 class certification.
Either plug or receptacle can be used by line mount or box mount.
Both wire and multi-core cable can be used for connection by using the cable back shell or multi-hole back shell.
Unique double O-ring design, reach to IP68 according to IEC60529, we test on condition in the water of 4meters deep, 365 days long.
Individual water-proof cap for each plug and receptacle, IP68 reached when un-occupied.
