Wireless Connectivity Digital Multimeter Detector with Auto Measurement

產品型號:

MS-WDMMD20

品牌名稱:

MEET

尺寸:

179 x 94 x 54mm

港口:

Shenzhen, Hong Kong

最低訂購數量:

300

描述

聯絡供應商

Introduction :

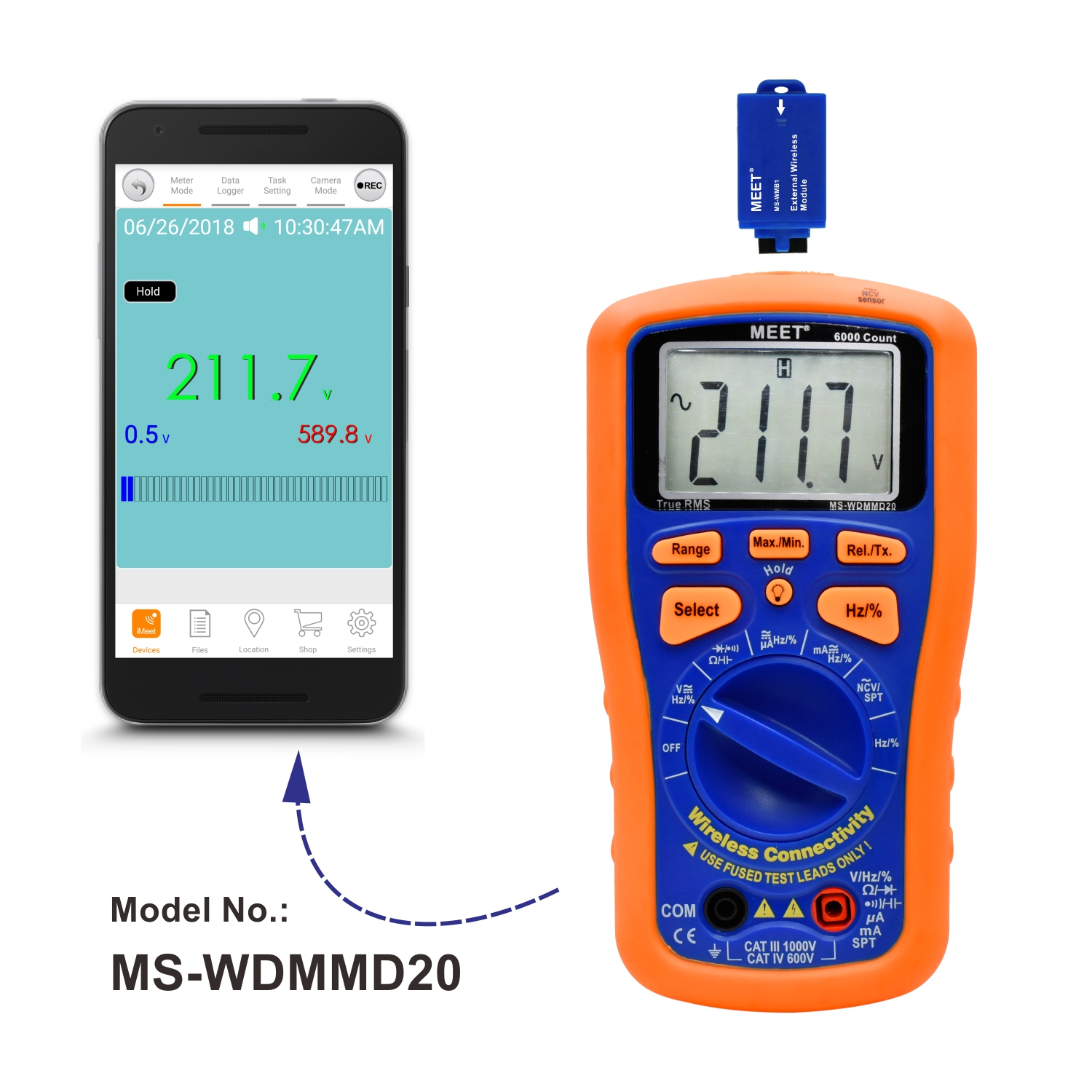

MS-WDMMD20 is an external wireless connectivity Digital Multimeter Detector integrated with 6000 Count, True RMS, auto and manual measurement.
One of the most advantages of the meter is wirelessly connect to Smart phone / Tablet / PC (require different external wireless modules, sold separately) to view data, record reading, capture picture with data on it and send the information to headquarter.

Key Specifications/Special Features :

True RMS
6000 counts (3-3/4 digit)
Auto/manual range
Large LCD display with backlight
Auto / Manual ‘V’ (AC / DC) (600V / 1000V)
Auto/manual resistor measurement : 0 - 60MΩ (approx.)
Continuity check : <50Ω Beep buzzer sounds
Capacitance : 10nF - 100mF
Diode check : 3.0 V
Input impedance 10MΩ
‘NCV’ Non-Contact AC Voltage Detection (Audible and Visible) > 100V
‘SPT’ Single Probe Test AC Voltage (Audible and Visible) > 100V
‘NCF’ Non-Contact Frequency Detection
Freeze / Hold reading
Auto-power off (APO) : 5 mins approx.
Relative reading (Rel)
Frequency / Duty cycle (Hz / % ) (10 - 10MHz / 1-99%)
Max. / Min. / Max. - Min. display
Lοw battery indication (2.6V approx.)
Fused test leads tted with replaceable 600mA (Ø6x32mm) fast blow fuse (included)
Standalone mode : without external wireless module
Wireless connectivity transmit data to Smart phone/Tablet with iOS APPS or Android APPS(require external wireless module MS-WMB1, sold separately)
Data logger compatible (require external wireless with memory module MS-WMBM1, sold separately)
Battery powered : 1 x 9V (6F22 / 6LR61 / 1604)
Dimension (LxWxD) mm : 179x94x54
Weight (approx.) grams : 330 (without battery)
