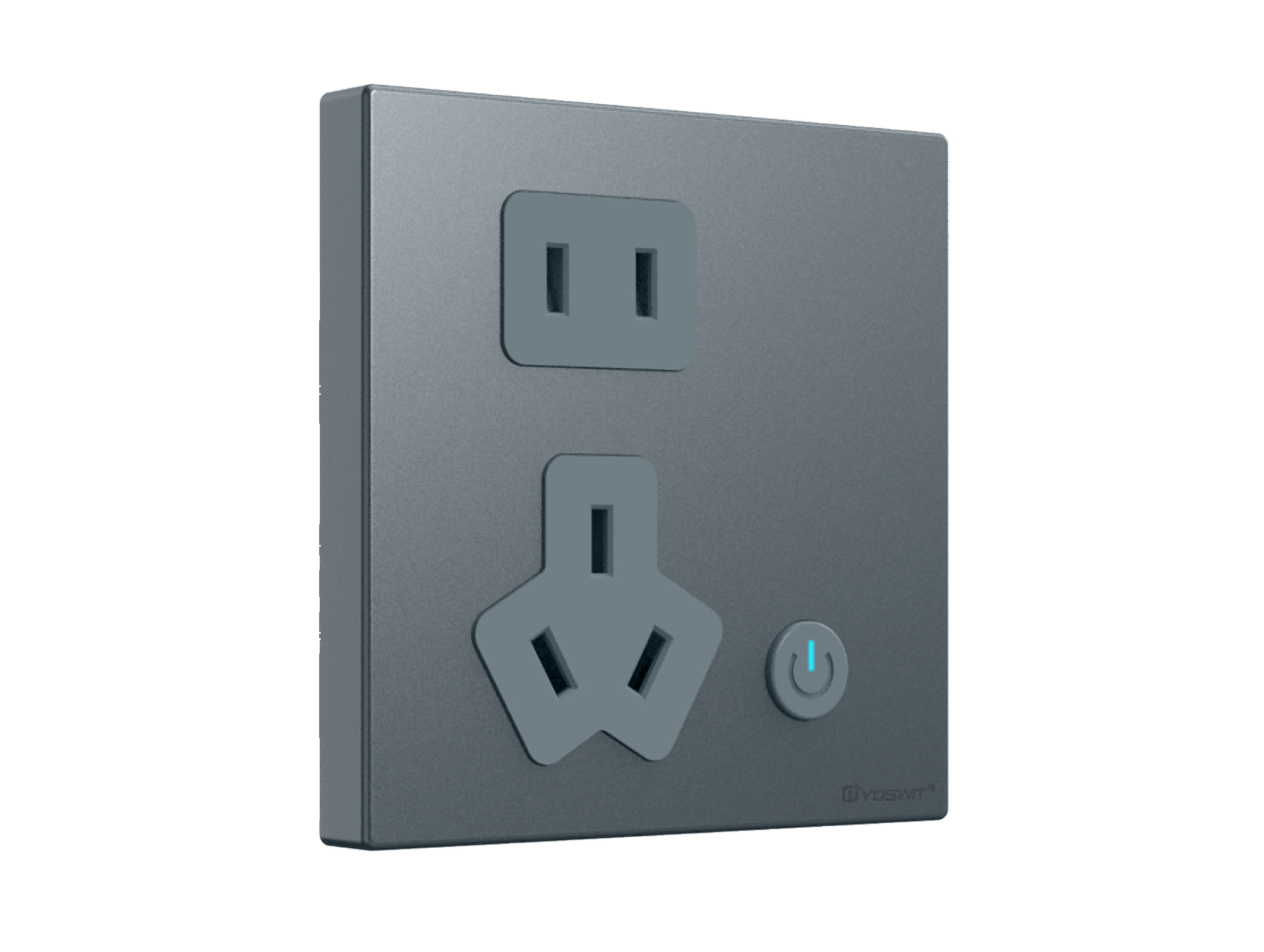

Yoswit Smart Outlet with Type-C / Socket CN-MEC-A

Model: YO515cn-C (R2W)-MEC-A

Category: Smart Outlet

Socket type: China (CN)

Faceplate type: 86-type / CN-MEC-A

Revision: V1.0

Operation: App / Manual

IP rating: IP20

Environment: Indoor

Tagline

Smart Power Control For Your Smart Home

Turn ordinary appliances into smart devices.

Key Features

• Track power usage — save with real data
  Monitor energy consumption in real time. From high-power appliances to small devices, the outlet tracks usage second by second, helping you cut waste and lower electricity bills.
• Overload protection — safety first
  When current exceeds the safe limit, the outlet automatically cuts power to help prevent fires or damage to valuable appliances.
• Tamper-resistant — extra protection
  Independent safety shutters help prevent children and pets from touching live parts.
• Schedule timers — smart and easy
  Each Yoswit smart outlet has a built-in timer. Set runtimes from weekly down to per-minute. Schedules are stored in the outlet and keep running even if the phone disconnects.

Smart platform

Phone-centered control system for full-range automation of your whole connected home:

• Network control
• Voice control
• Device grouping
• Remote control
• Scene modes
• Presence sensing
• Timer / schedule
• Password protection
• IFTTT

Wireless & compatibility

• Bluetooth: Bluetooth 4.2 / BLE
• Frequency: 2.4GHz
• Connection: Wi-Fi 2.4G / BLE 4.2
• Range: Open area >50m / Indoor 3–20m
• Compatible devices: Bluetooth Smart Ready phones, tablets, smart set-top boxes
• iOS: iOS 13.0 and above
• Android: Android 7.0 and above

Installation

⚠️ Disconnect power at the service panel before installation. Only licensed electricians should install the outlet.

1. Remove the old outlet and disconnect the wires; ensure about 5mm of bare conductor is exposed.
2. Insert a small flat-head screwdriver into the frame notch and gently pry off the faceplate.
3. Connect the wires to the outlet terminals according to the wiring diagram.
4. Ground the outlet as required by local regulations. Missing the ground wire creates an unsafe installation.
5. Secure the outlet firmly into the wall box.
6. Turn on the RCD / breaker. Press the outlet power button 2–3 times; the LED turns on/off.
7. Plug in your device — make sure both the device and outlet are powered off before plugging.
8. Press the outlet power button to turn the device on.
   Installation complete.

Download the Yoswit App — the outlet is automatically detected and added to your device list.
