led lighting system for shopfitting

美元 $8.00 - 美元 $12.00

生產所需時間:

6 日

運送方式:

DHL/UPS/FEDEX/TNT and other

品牌:

CoreShine

型號編號:

CTL-0618-X1X2-X3WH

材料:

Steel

光源:

發光二極管照明

尺寸:

600mm, 1200mm, 1500mm

CRI (Ra>):

UGR:

<19

Beam Angle:

30°;60°;90°;120°; Asymmetric; Double Asymmetric

CCT:

2700K/3000K/3500K/4000K/5000K/5700K/6000K

PF:

>0.95

THD:

<15%

Input Voltage(V):

AC220-240VAC/100-277VAC

Installation Method:

suspension, Surface mounted

Lumen:

3200lm-10800lm

Connector:

L/T/X Node Connector can be choose

可調亮度:

是

Dimming:

DALI

Driver:

DIP Switch driver

Led Chip:

Ebright/Bridegelux

Color:

White, Black

Light Color:

Warm White, White, Cold White

IP Rating:

IP20

Light Efficiency:

180lm/w

Power:

18W/20W/22W/24W/35W/40W/45W/50W/55W/60W

Function:

on/off, DALI, 3CCT

Wires:

3Wire/4Wire/6Wire

Working Temperature:

-20 - 40 ℃

Warranty:

5 years

Lifespan (hours):

100000

Certifications:

CE/CB/ETL/DTC/SAA/FCC/GS/UL

應用:

Supermarket, shop stores, office

是否可訂造:

可以

Packing:

Luminaire and Trunking rail are packed separately

描述

證書及文件

聯絡供應商

Product Description

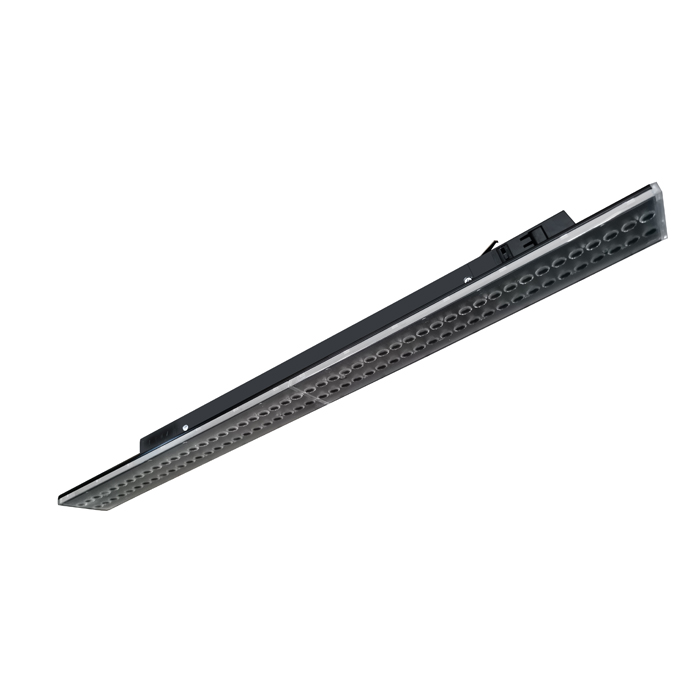

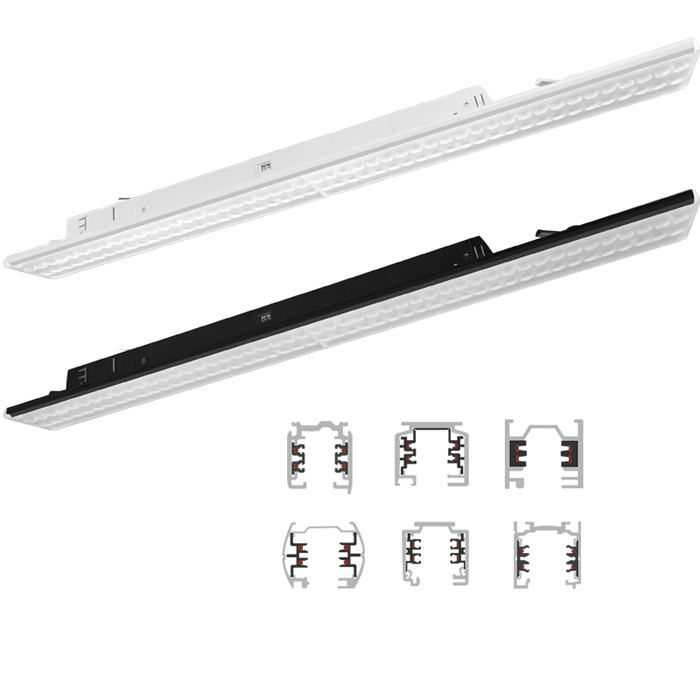

Coreshine T-LINE Track LED linear lights are energy-efficient, low-maintenance fixtures that can be compatible with standard 3 wire,4wire,6 wires track rail on the market

Suitable for supermarket, shops, retail stores lighting
High light efficiency 180ln/w
Long lifespan: 100,000hrs
Fast and easy for installation
Flexible installation
Can combine with track spotlight in project lighting

Length	Wattage	Lumen	Model
600 mm	18W	3240 lm	CTL-0618-X1X2-X3WH
600 mm	24W	4300lm	CTL-0624-X1X2-X3WH
1200 mm	35W	6300lm	CTL-1235-X1X2-X3WH
1200 mm	50W	9000lm	CTL-1250-X1X2-X3WH
1500 mm	45W	8100lm	CTL-1545-X1X2-X3WH
1500 mm	60W	10800lm	CTL-1560-X1X2-X3WH
600 mm	20W	3600lm	CTL-0620-X1X2-X3WH
600 mm	50 W	9000 lm	CTL-0650-X1X2-X3WH

Why choose Coreshine

CoreShine is a premier Chinese manufacturer specializing in LED linear lighting systems.

Established: 2005
Location: Shenzhen
Workforce: 2000 employees
Facility: 13,000 ㎡ premises consisting of 9 floors of production workshops plus 1 floor of office space
Complete industrial layout covering R&D, manufacturing and marketing

R&D Team

Our R&D team comprises 9 engineers specializing in electronics, software, mechanical and structural engineering, with an average of over 10 years of industry experience.

Production

95% of components are made-in-house.
We have 156 production staff, 60% of whom have 3–5 years of experience in the lighting industry.
All our employees receive professional training prior to employment, and only fully qualified personnel are recruited.

Quality Control

Our QC department consists of 11 people, all of them have rich experienced in this field.
They will conduct 10% sampling testing on all finished goods for each order in accordance with strict inspection standards and specifications
