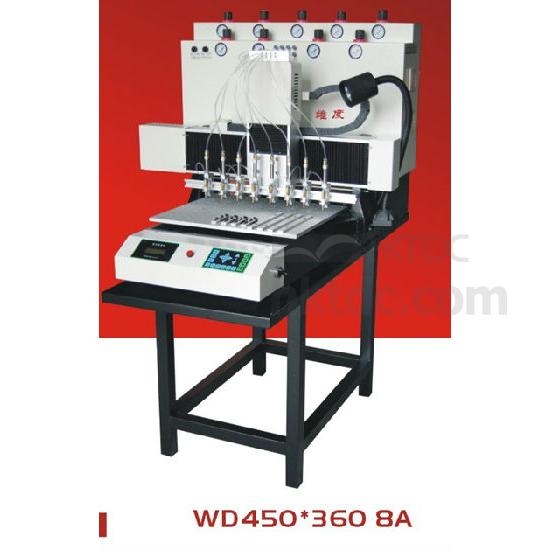

Supply 8 Color Rubber PVC Label Dispenser Machine

Production Lead Time:

30 day(s)

Model No.:

WD450*360 8A

Brand:

WELDO

Description

Contact Supplier

Power: 220V/50Hz/300W.
Working table size: 450 x 380mm.
Running distance (X.Y.Z): 450mm x 380mm x 70mm.
Working speed: 12000mm/min.
Size of the device: 770 x 870 x 700mm.
Transmission: (X.Y.Z asix) rolling screw drive.
Size of package: 880 x 970 x 830mm.
Table load: 15kg.
Weldo PVC label dispenser machine is based on suitable products as direction, pursue high efficient for customers as Weldo goal.
Weldo machine is installed servo motors in X.Y.Z axis to improve the machine stability. Because the belt transmission difference is more than 0.2mm, Weldo insists on screw balls as transmission to increase the machine filling PVC accurately.
Applicable materials: PVC pasta resin, liquid silicon, lacquer and other liquid materials.
Applicable industrials: applicable to garment, cloth, shoes making, gifts and art craft industries, label processing, photo frame industrials, metal premiums (such as lapel pin, badge, medals, coins, and buttons, etc).
Features: Weldo PVC label dispenser machine can do 8 different colors and 4 different designs.
