YASL-24-60

Production Lead Time:

30 day(s)

Shipping Method:

by sea

Brand:

Die Casting Man

Customised:

Yes

Feature:

Tooling free

Material:

Aluminum

Including Bulbs:

Yes

Is Dimmable:

Yes

Light Source:

LED

Lighting Style:

Modern

Model No.:

YASL-24-60

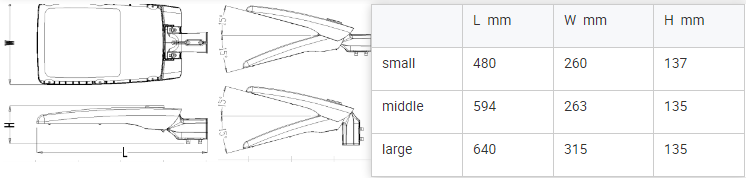

Size:

480x260x137mm

Weight:

2.1kg

Description

Contact Supplier

Products Description:

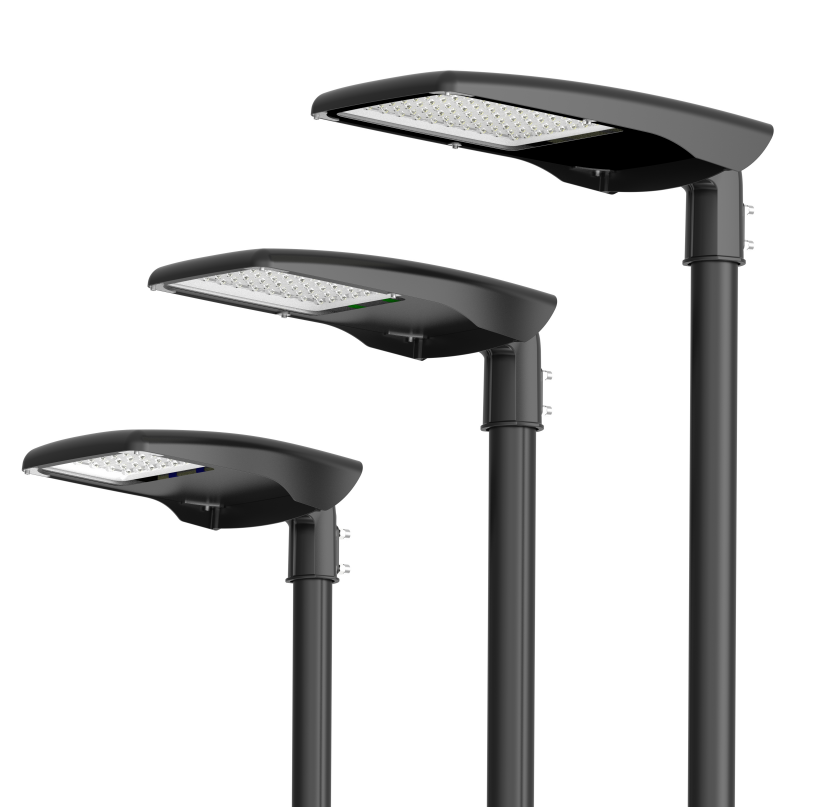

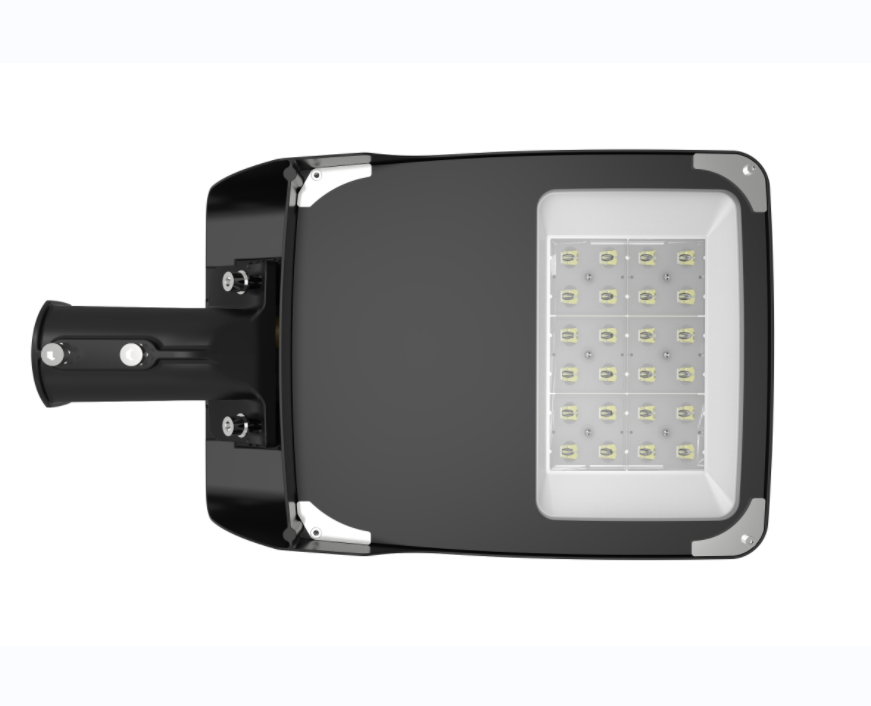

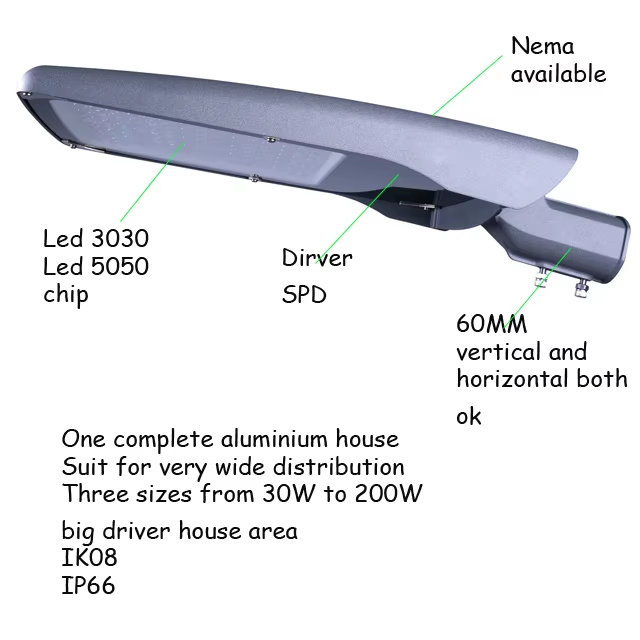

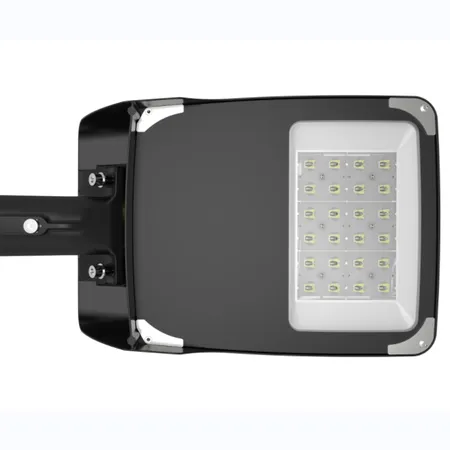

 -- Luminaire made of die-cast aluminum, closed by tempered glass in order to ensure the IP and protect the
characteristics of lenses used.

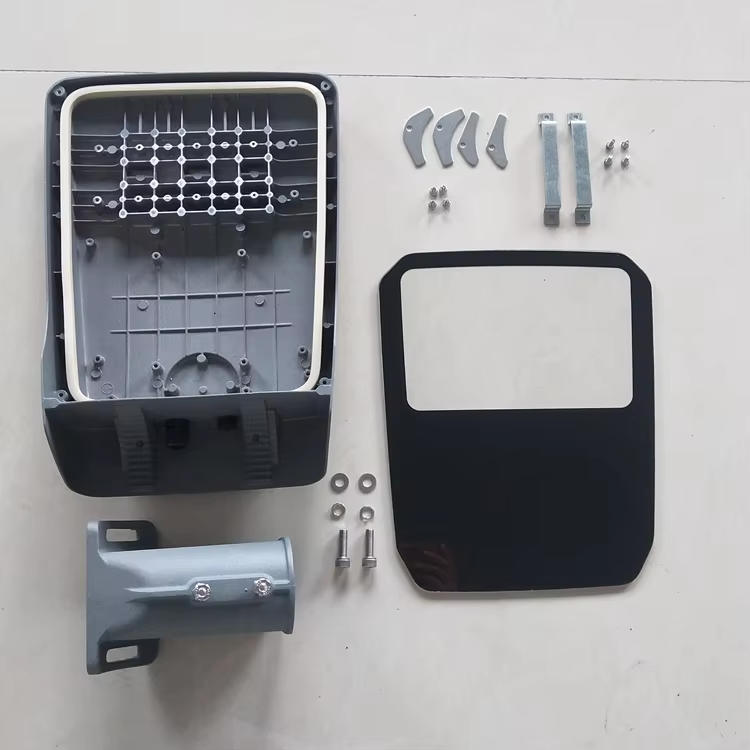

·- Access to electrical components without need of special tools, pressing locking system, which facilitates maintenance. Hidden hinge system.

 ·- Post top or side entry Ø 60 mm with the possibility of adjusting the inclination.Other fixing needs please consult.

·- Luminaire Class I. Optional Class II ·- Luminaire IP65, IK08

·- LED version available from 20W to 260W. ·- Finished in any RAL color.

·- Characteristics of the optical group: ·- High performance inner aluminium heatsink

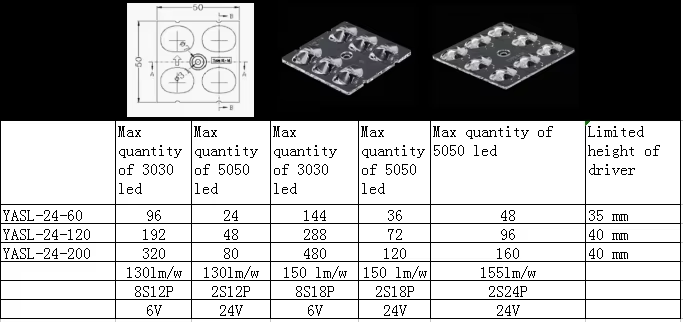

·- Number of LED 16-24-32-48-60-80- 96-112

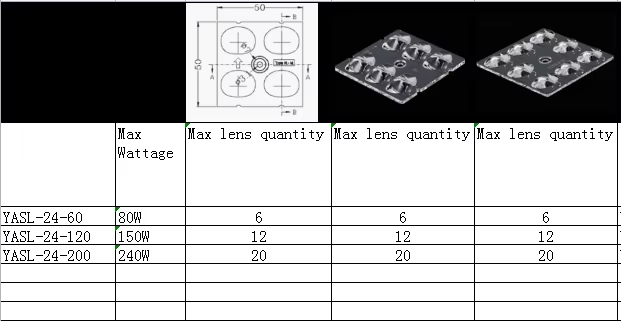

·- Lens Integrated with several asymmetric or symmetric distributions available
according to the project needs.

·- Luminaire efficacy from 100 to 140lm/W .

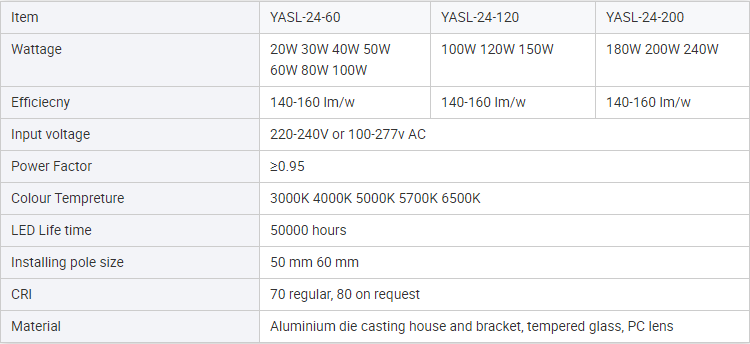

Specification

Photometric
