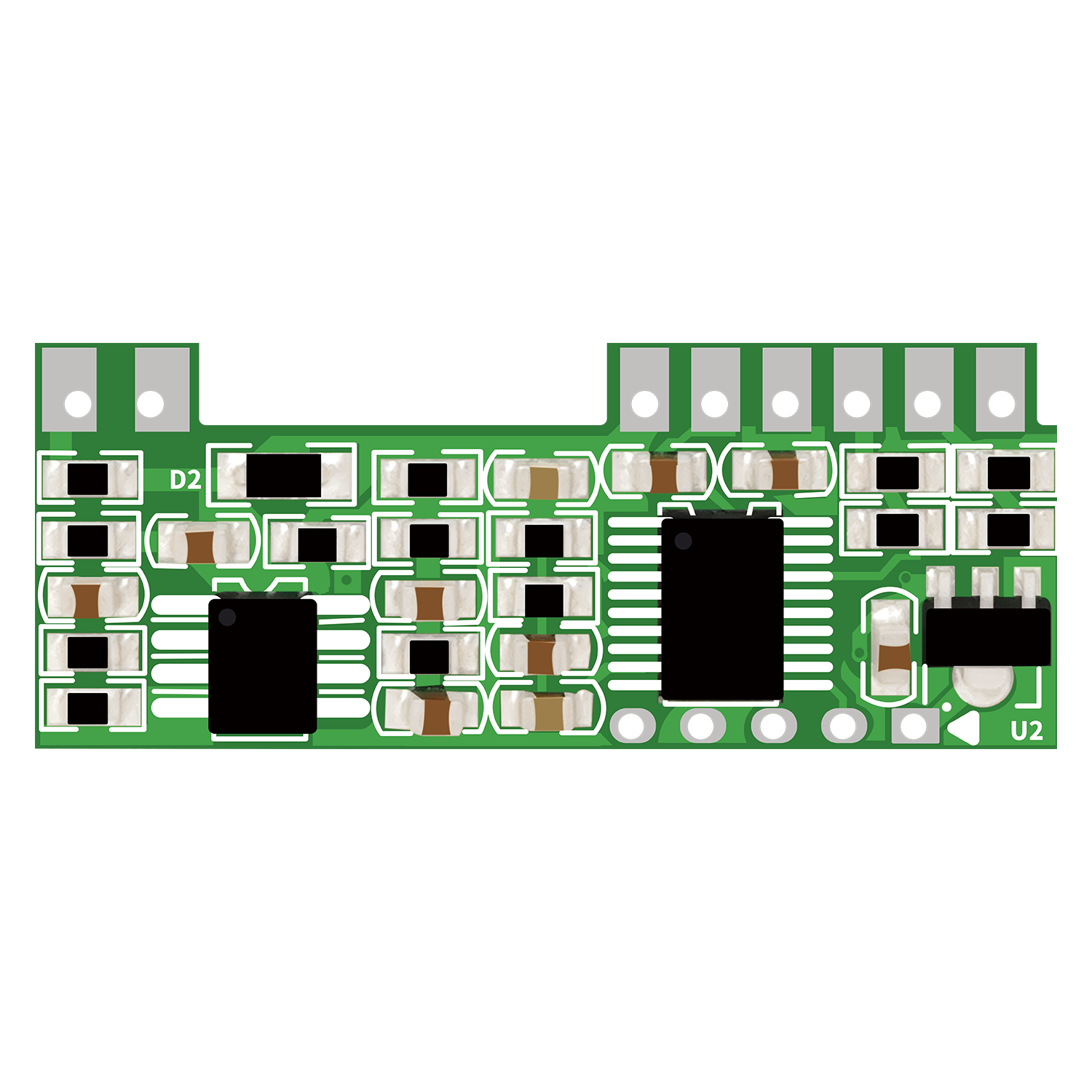

Model: RK-010V-V3

Supported Protocols: 0-10V, 10V PWM, Potentiometer.

Supported Functions: 2-channel 0-10V dimming signal, outputting 2-channel PWM signals, with selectable linked/independent color temperature adjustment modes.

Power Supply: DC 12V~15V, higher than 20mA.

0-10V Interface: Support for active 0-10V dimmers, passive 0-10V dimmers, 10V PWM, and potentiometer dimming.

Output PWM: 2 channels PWM, 4kHz，dimming range from 0.1% to 100% (frequency and minimum brightness can be customized, minimum dimming depth is 0.1%).

Working Temperature: -40~85 °C.

Board Size: 37.5X15X6mm.

Installation Method: Gold finger/Pin header.
