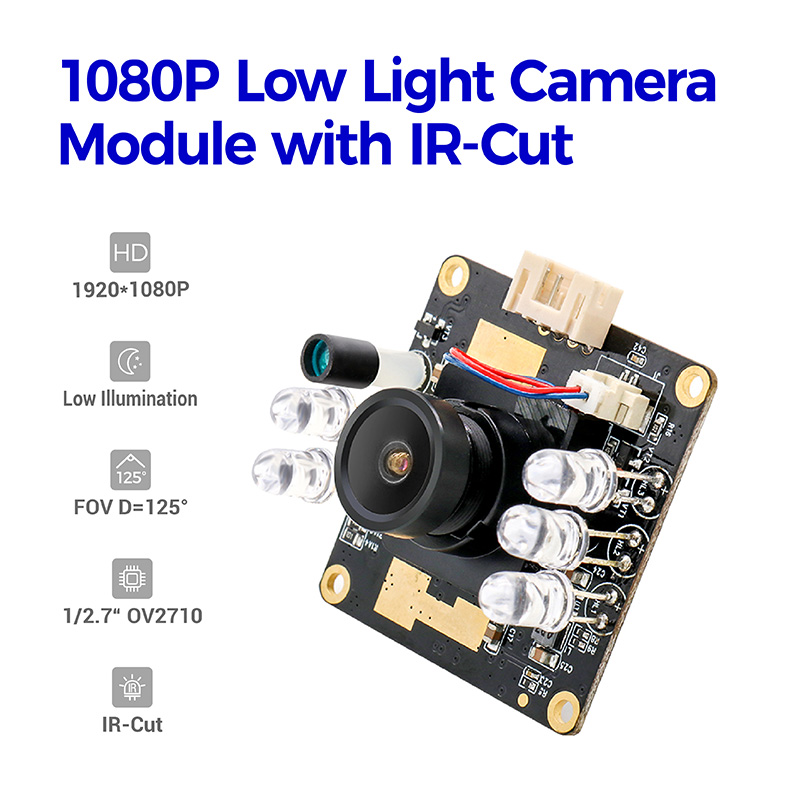

1080P Low Light Camera Module with IR-Cut
US $18.05 - US $23.75
US $19.00 - US $25.00
Production Lead Time:
5 day(s)
Shipping Method:
express delivery
Model Number:
Hampo 003-0353
Special Features:
NIGHT VISION
Resolution:
1920*1080
Frame Rate:
30fps
Function:
IR-Cut
Sensor:
CMOS, 1/2.7" ov2710
UVC:
Free driver,plug and play Focusing: Fixed focus
PCB Sizee:
38*38mm
Customized support:
OEM, ODM
Compression Format:
MJPG/YUV
Description
Contact Supplier
Description
Product Description
Hampo 003-0353 is a 2Megapixel resolution (1920x1080) camera module embedded a removable IR-Cut filter,which also delivers low-light sensitivity of 3700 mV/lux-sec, S/N ratio of 40 dB, and a peak dynamic range of 69 dB, enabling cameras to operate in virtually every lighting condition from bright daylight to nearly complete darkness below 15 lux., widely used for picture and recording, smart TV, live streaming,and security monitoring system etc.
The camera is based on 1/2.7" Ominivision OV2710 CMOS image sensor with advance 3.0µm pixel BSI technology from ON Semiconductor. It has S-mount (M12) lens holder which allows customers to choose and use the lens according to their requirement. The FOV for default lens on this module is D=125°, it will different according to the choosing lens.
Key Features

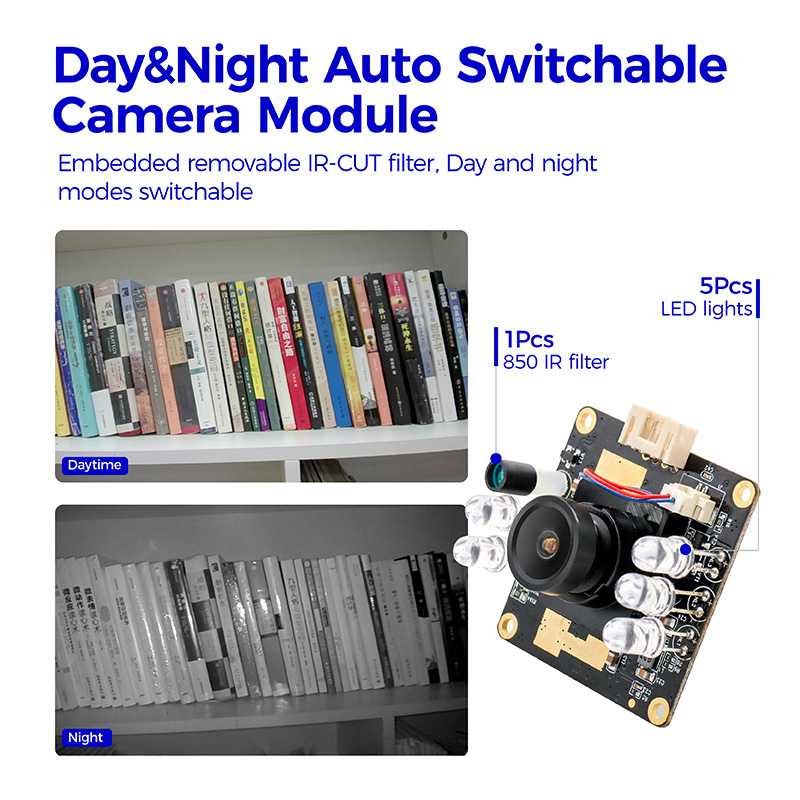

Embedded removable IR-CUT filter, eliminating color distortion in the daylight. In night mode, the inside filter will remove, hence allowing unnatural lights (ie.,Infrared) enter into image sensor to enhance low illumination performance. In day mode, the inside filter will be inserted between lens and image sensor to filter unnatural lights enter into image sensor, therefore to provide true color reproduction crisp images.
1080P HD Resolution:
1080P Full HD USB Camera with 1/2.7" CMOS OV2710 image sensor, a great camera module with high pixel technology and excellent low light performance for sharp image and accurate color reproduction.
High Frame Rate:
MJPG:1920x1080@30FPS; 1280x720@30FPS; 800x600@30FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS YUY2:1920x1080@5FPS; 1280x720@10FPS; 800x600@20FPS; 640x480@30FPS; 352X288@30FPS; 320X240@30FPS
Wide Angle Lens:
The camera module has a ultral wide view of angle, D=125°， H= 100° .
Plug&Play:
Support Windows XP/7/8/10, Linux, Mac OS and Andriod device with UVC, just connect the camera to PC, laptop with the USB cable without extra drivers to be installed.
Applications:
This 38*38mm camera board can be installed in most hidden and narrow position for a home surveillance system, wildlife photography, dashcam, baby camera, etc.

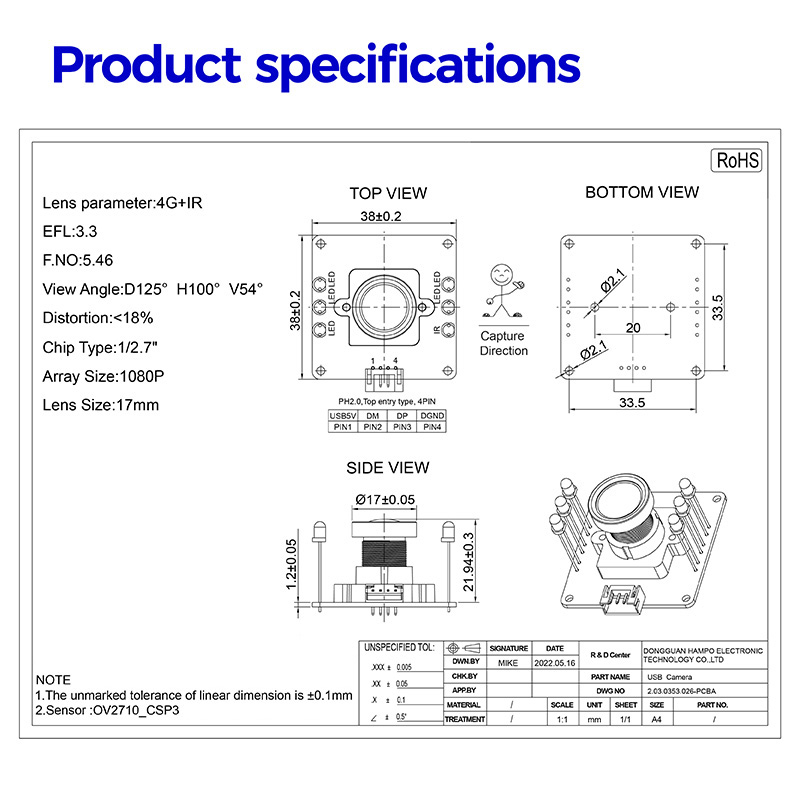

Specification
