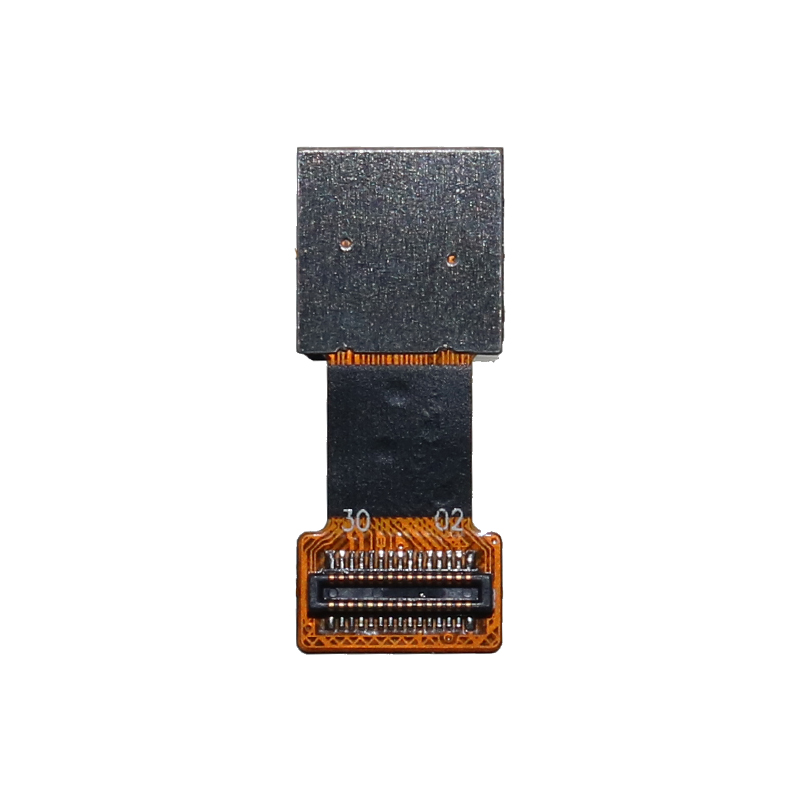

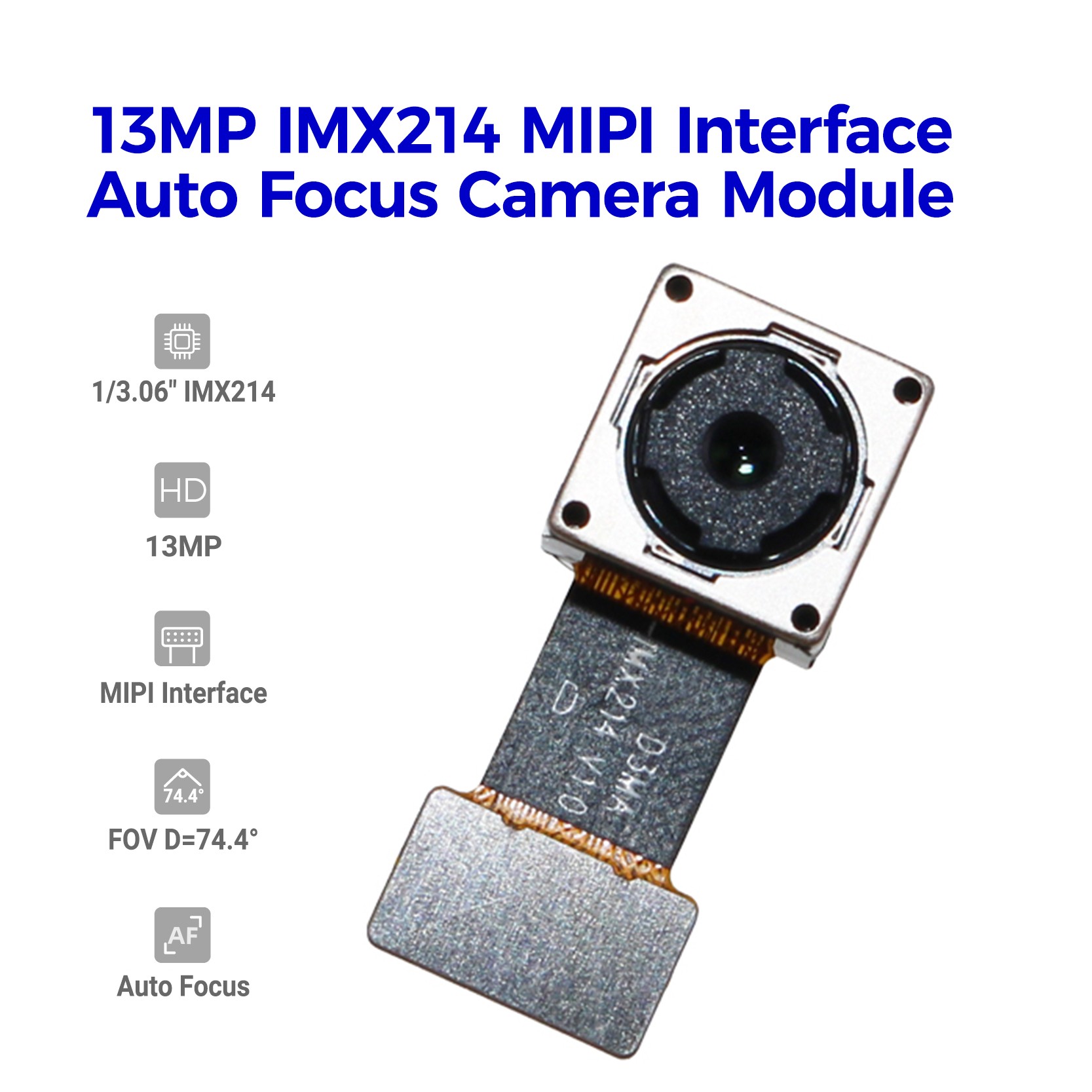

13MP IMX214 MIPI InterfaceAuto Focus Camera Module

US $21.85 - US $29.45

US $23.00 - US $31.00

Production Lead Time:

7 day(s)

Shipping Method:

express delivery

Model Number:

HAMPO-D3MA-IMX214 V1.0

Image Sensor:

IMX214

View Angle:

74.4°(DFOV)

Focusing:

Resolution:

13MP

Module Size:

20.85 x 8.50 mm

Interface:

MIPI

Description

Contact Supplier

Product Description

HAMPO-D3MA-IMX214 V1.0 is diagonal 5.867mm(Type 1/3.06) 13M pixel CMOS active pixel type stacked MIPI interface camera module with a square pixel array. It adopts Exmor RS™ technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor) through the backside illuminated imaging pixel structure.R, G, and B pigment primary color mosaic filter is employed. By introducing spacially varying exposure technology, high dynamic range still pictures and movies are achievable. It equips an electronic shutter with variable integration time. It operates with three power supply voltages: analog 2.7 V, digital 1.0V and 1.8 V for input/output interface and achieves low power consumption.

Specification

Camera Module No.	HAMPO-D3MA-IMX214 V1.0
Resolution	13MP
Image Sensor	IMX214
Sensor Size	1/3.06"
Pixel Size	1.12 um x 1.12 um
EFL	3.85 mm
F/No.	2.2
Pixel	4224 x 3136
View Angle	74.4°(DFOV) 62.7°(HFOV) 48.7°(VFOV)
Lens Dimensions	8.50 x 8.50 x 5.37 mm
Module Size	20.85 x 8.50 mm
Focusing	Auto Focus
Interface	MIPI
Auto Focus VCM Driver IC	FP5510
Lens Type	650nm IR Cut
Operating Temperature	-20°C to +70°C

Key Features
◆Back illuminated and stacked CMOS image sensor Exmor RS
◆Single Frame High Dynamic Range (HDR) with equivalent full pixels.
◆High signal to noise ratio (SNR).
◆Full resolution @30fps (Nornmal / HDR).4K2K @30fps (Normal / HDR)1080p @60fps (Normal / HDR)
◆Output video format of RAW10/8, COMP8/6
◆Pixel binning readout and H/V sub sampling function
◆Advanced Noise Reduction (Chroma noise reduction and luminance noise reduction)
◆Independent flipping and mirroring.
◆CSI 2 serial data output (MIPI 2lane/4lane, Max. 1.2Gbps/lane, DPHY spec. ver. 1.1 compliant)
◆2wire serial communication
◆Two PLLs for independent clock generation for pixel control and data output interface.
◆Advanced Noise Reduction.
◆Dynamic Defect Pixel Correction.
◆Zero shutter lag.
◆Power on reset function
◆Dual sensor synchronization operation.
◆8K bit of OTP ROM for users.
◆Built in temperature sensor
