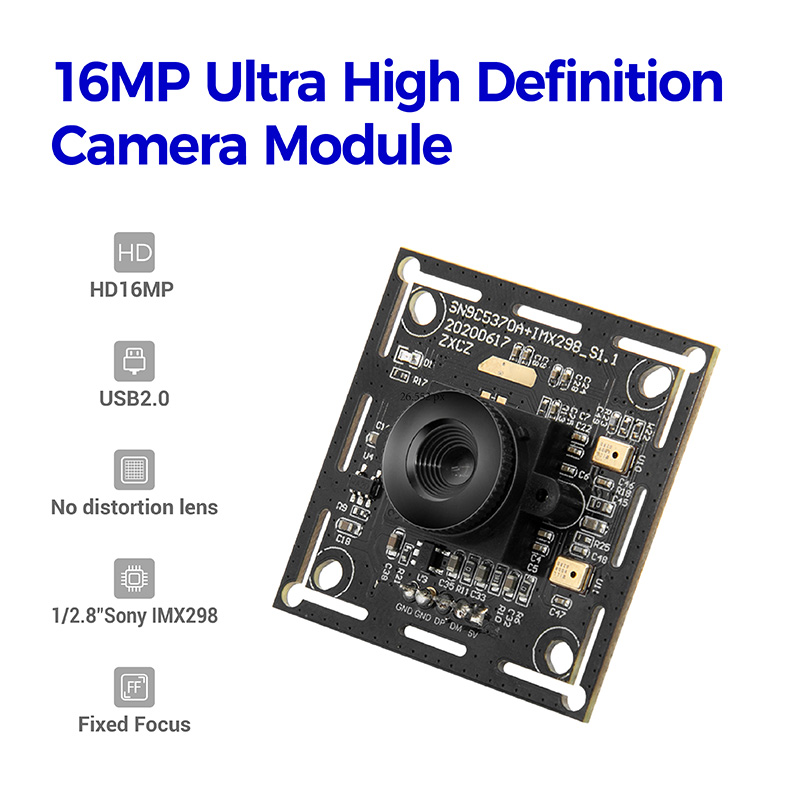

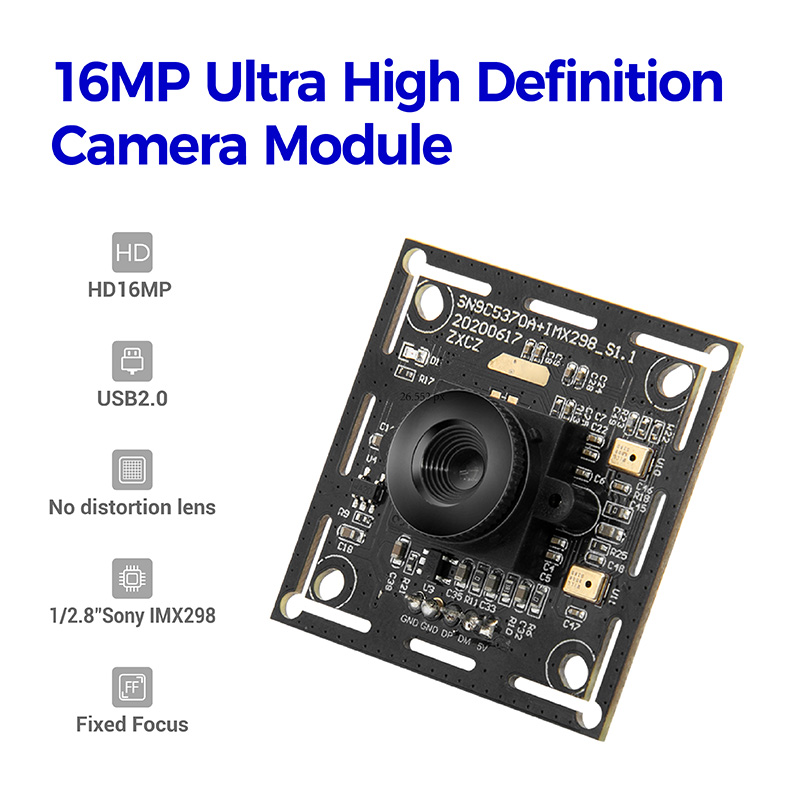

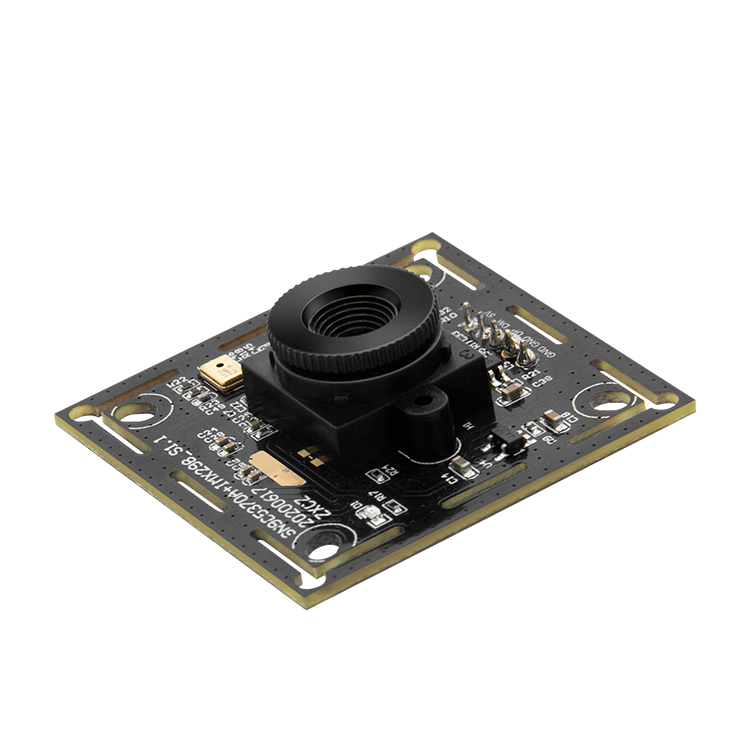

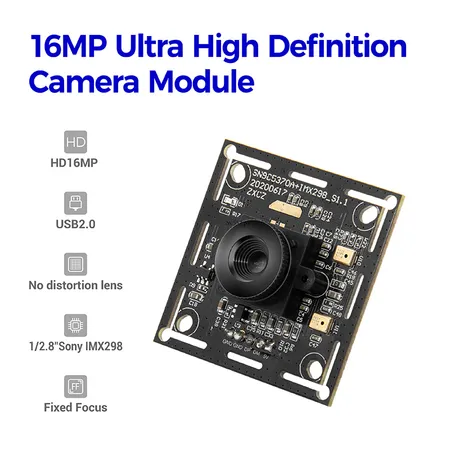

16MP IMX298 High Definition USB Camera Module
US $35.00 - US $45.00
Production Lead Time:
7 day(s)
Shipping Method:
FOB SZ
Model No.:
003-1170

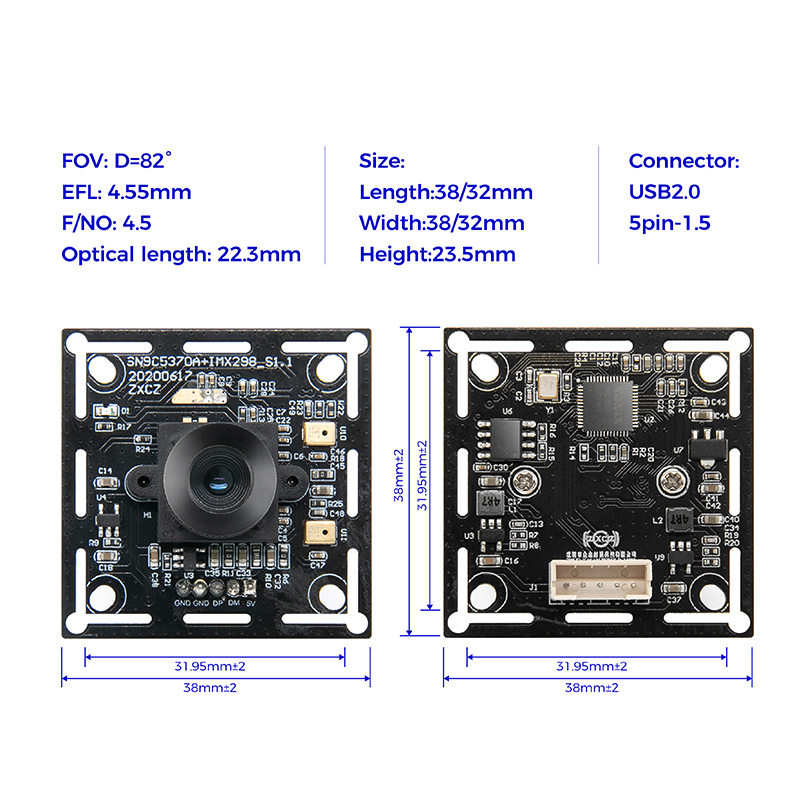

Size:
38mm*38mm
Sensor:
IMX298
FOV:
D=82°
TTL:
22.3MM
Resolution:
4656*3496
Description
Contact Supplier
Description
Product Description

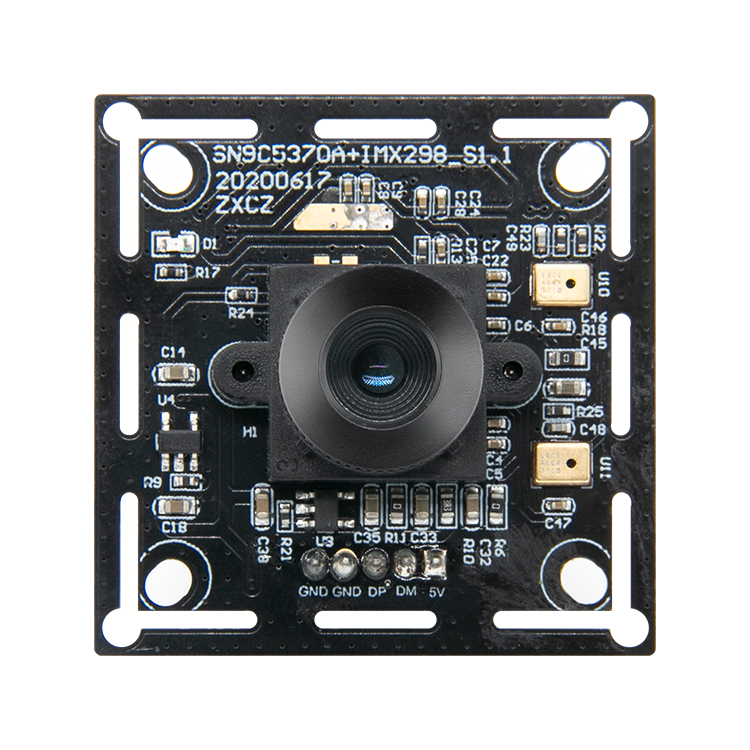

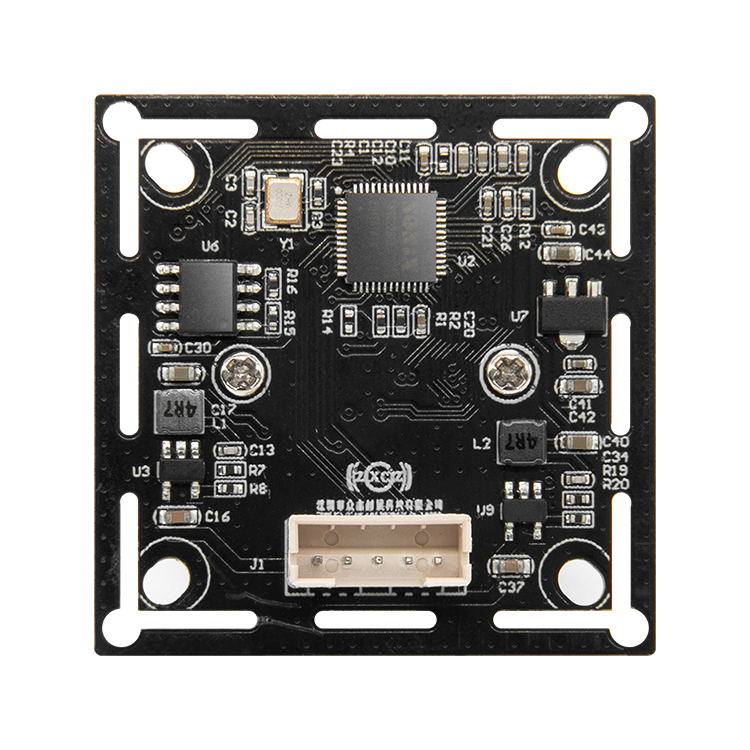

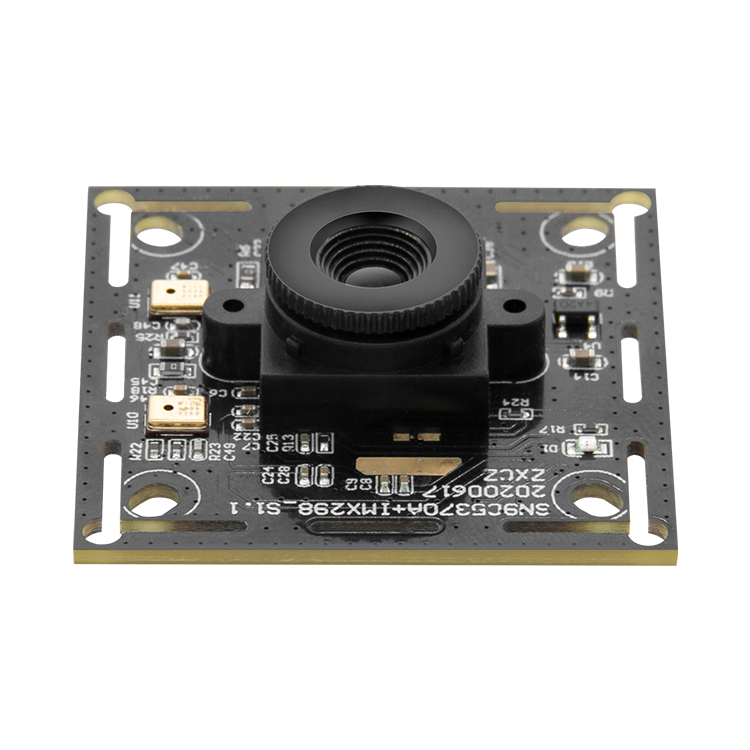

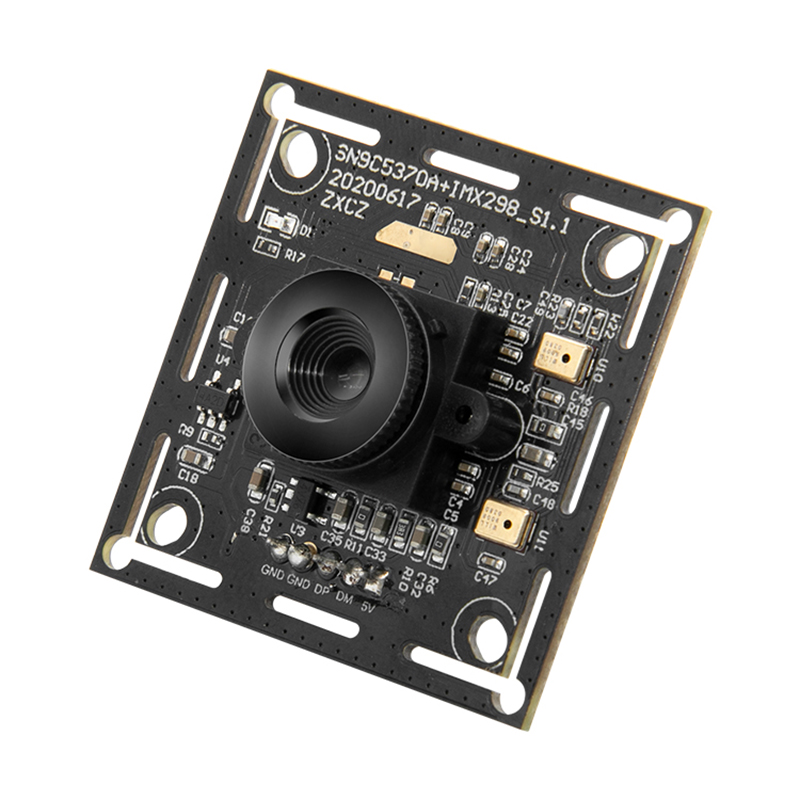

Hampo 003-1170 is a 16MP ultra high resolution,adopting high quality Sony IMX298 CMOS sensor, support 4656*3496P and MJPG YUV video streaming USB2.0 camera module. Mini fixed focus lens USB camera ,true and no distortion color image.
Widely used in document scanner, beauty instrument, teaching system, car and ship control, face matching, OCR components, all-in-one machine, advertising machines, automatic vending machine,etc.
Key Features
More than HD: This camera adopts 16MP IMX298 sensor for sharp image and accurate color reproduction.
Capture Video with Audio: The frame rates, MJPG 10fps@4656*3496, 30fps@1080P; YUY2 30fps@640x 480.
High Quality of Image/Video: The camera with high definition 4656*3496P and lower color reproduction deviation produce sharp image and accurate information.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
Applications: This tiny 38mmx38mm, compatible with 32mm x 32mm camera board can be installed in most hidden and narrow position for a home surveillance system, monitoring 3D Printer,document scanner, OCR reader, beauty instrument, teaching system,object recognition and tracking or other machine vision application.
Note: There is a lens shading problem after changing the lens, so we don’t recommend changing the lens.

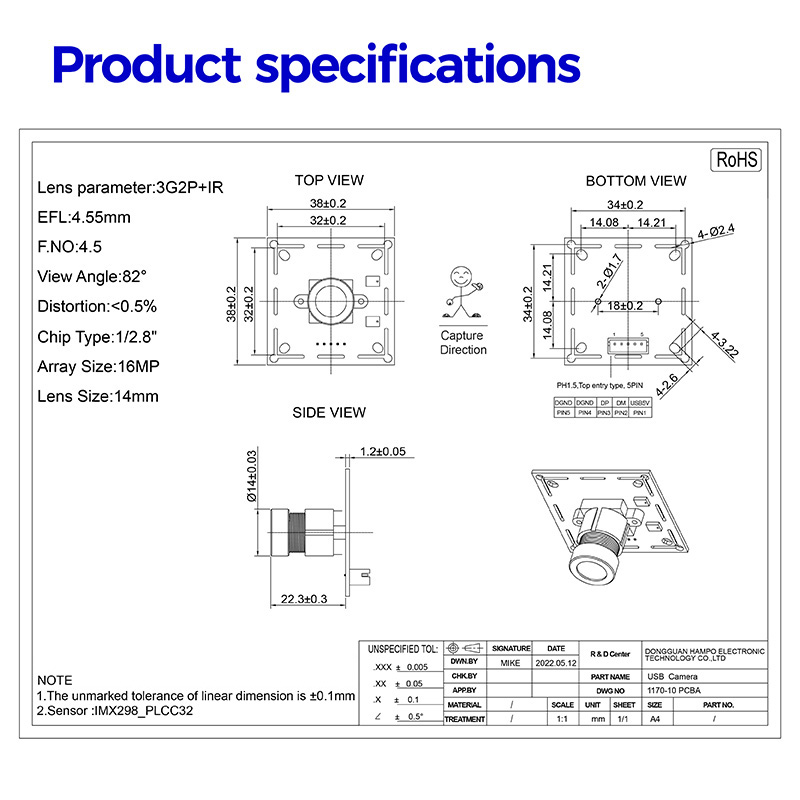

Specification
All-in-one machine
POS equipment /Credit card machine
Automatic vending machine
ATM
Face Matching
OCR components/OCR Reader
POS equipment /Credit card machine
Automatic vending machine
ATM
Face Matching
OCR components/OCR Reader
