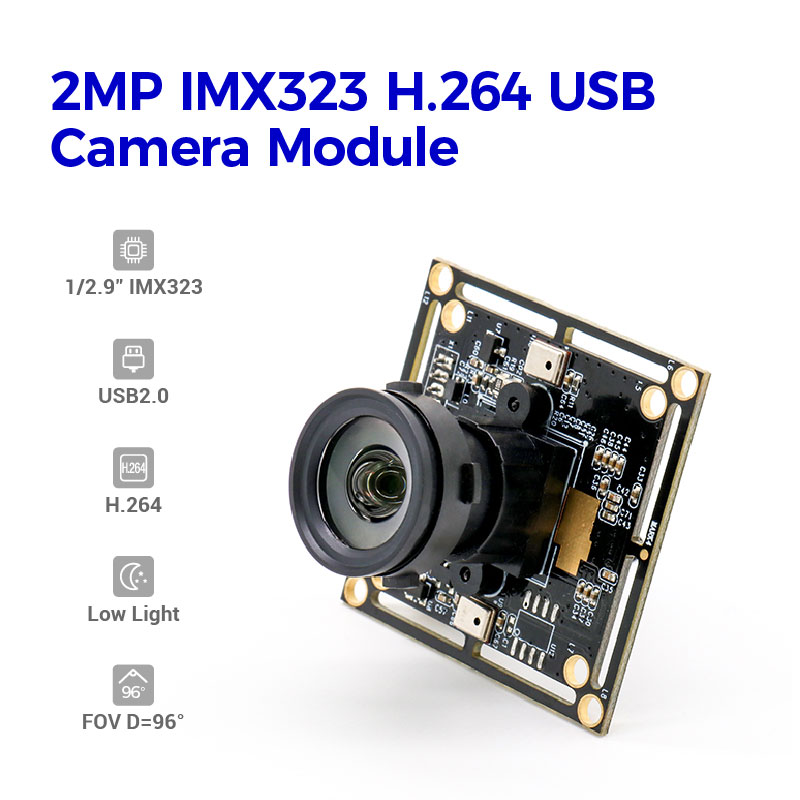

2MP IMX323 H.264 USB Camera Module

US $20.90 - US $23.75

US $22.00 - US $25.00

Production Lead Time:

5 day(s)

Shipping Method:

express delivery

Model Number:

HAMPO-003-0362

Special Features:

Low Power

Resolution:

2001 (H) × 1121 (V)

Compression Format:

H.264/MJPG/YUV

Focusing:

Fixed focus

Sensor:

CMOS, 1/2.9" IMX323

Function:

Low light

Customized support:

OEM, ODM

Frame Rate:

30fps

PCB Size:

38*38(mm) & 34*34(mm)

FOV:

D=96°

Description

Contact Supplier

Product Description

Hampo 003-0362 is a 2 megapixel low light USB camera module support H.264 video coding. Adopting advanced Sony 1/2.9" IMX323 CMOS image sensor,image quality is very high and stable,low color deviation reproduction. Full HD definition 2001 (H) × 1121 (V)   approx 2.24M pixel at 30fps.
USB The connection port in the camera module supports USB 2.0 high-speed data transmission, and the USB of the camera board also supports OTG protocol (UVC). 2mp USB camera has a dedicated, high performance image signal processor chip that performs all automatic functions (automatic white balance, automatic exposure control), as well as a complete image signal processing pipeline, providing first-class image and video YUY2 and MJPEG compression .
Field of view 96° true color image without distortion, suitable for skin detector, document scanner, dashcam,3D printer,Robot, ATM, Kiosk,security applications etc. Compatible with Windows 7, 8/10/11, Linux operating system.

Key Features

Full HD Resolution: The camera module adopting 1/2.9" Sony IMX323 CMOS image sensor, the max resolution is about 2001 (H) × 1121 (V).

Excellent Low Light Performance: The camera module with a good low light performance, the illumination color 0.01 Lux@F1.2,B&W 0.005 Lux@F1.2.

Low color deviation reproduction: The camera module with low color deviation reproduction, image quality is very high and stable.

High Compression: H.264 compression technology on USB Camera for sharp image and accurate color.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device with the USB cable without extra drivers to be installed.

Specification

Camera
Model No.	003-0362
Max Resolution	2001 (H) × 1121 (V)
Sensor	1/2.9" IMX323
Frame Rate	30fps
Pixel Size	2.8μm*2.8μm
Output Format	YUY2/MJPG/H.264

Applications

Machinary equipment All-in-one machine
Robot
Document scanner
Industrial machine

DroneMedical auxiliary equipment
Security camera
Face recognition
ATM
